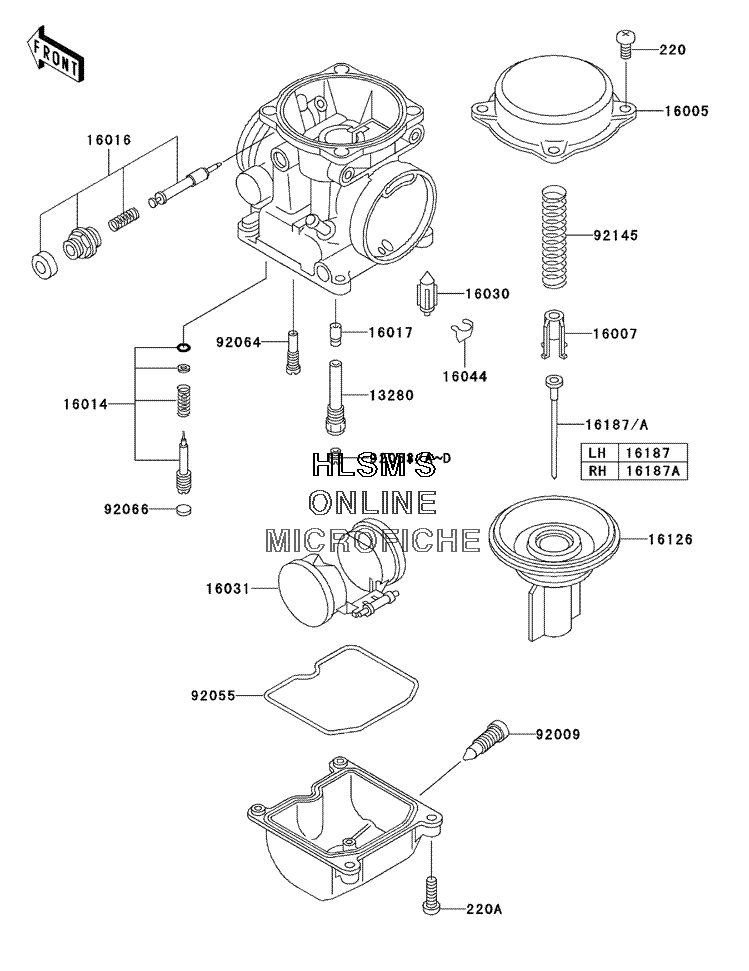

CARBURETOR PARTS для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
220220B0408 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220D0414 SCREW, PAN, CROSSCREW, PAN, CROS
-
1328013280-1158 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1600516005-1065 TOP, CHAMBER, MIXINGTOP, CHAMBER, MIXING
-
1600716007-1117 SEAT, SPRING, VALVESEAT, SPRING, VALVE
-
1601416014-1081 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1092 PLUNGERPLUNGER
-
1601716017-1407 JET, NEEDLEJET, NEEDLE
-
1603016030-1057 VALVE, FLOATVALVE, FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-1339 VALVE, VACUUMVALVE, VACUUM
-
1618716187-1112 NEEDLE, JET, N8GJNEEDLE, JET, N8GJ
-
16187A16187-1113 NEEDLE, JET, N8GNNEEDLE, JET, N8GN
-
9200992009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9205592055-1518 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
9206392063-1071 JET, MAIN, #118JET, MAIN, #118
-
92063A92063-1072 JET, MAIN, #120 (OPT)JET, MAIN, #120 (OPT)
-
92063B92063-1073 JET, MAIN, #122 (OPT)JET, MAIN, #122 (OPT)
-
92063C92063-1117 JET, MAIN, #112 (OPT)JET, MAIN, #112 (OPT)
-
92063D92063-1118 JET, MAIN, #115 (OPT)JET, MAIN, #115 (OPT)
-
9206492064-1101 JET, PILOT, #35JET, PILOT, #35
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9214592145-1064 SPRING, VACUUM VALVESPRING, VACUUM VALVE
