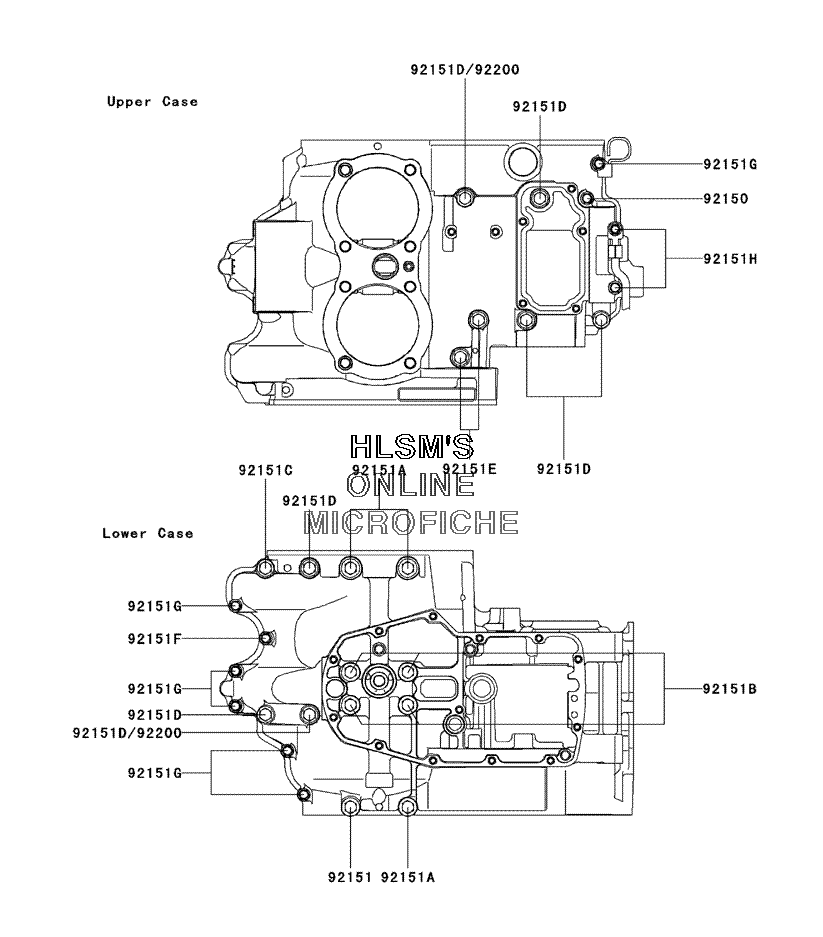

CRANKCASE BOLT PATTERN для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
9215092150-1549 BOLT, 6X70BOLT, 6X70
-
9215192151-1458 BOLT, 9X90BOLT, 9X90
-
92151A92151-1459 BOLT, 9X110BOLT, 9X110
-
92151B92151-1460 BOLT, 9X130BOLT, 9X130
-
92151C92151-1461 BOLT, 8X60BOLT, 8X60
-
92151D92151-1462 BOLT, 8X73BOLT, 8X73
-
92151E92151-1463 BOLT, 8X50BOLT, 8X50
-
92151F92151-1464 BOLT, 6X32BOLT, 6X32
-
92151G92151-1465 BOLT, 6X45BOLT, 6X45
-
92151H92151-1467 BOLT, 6X117BOLT, 6X117
-
9220092200-1063 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
