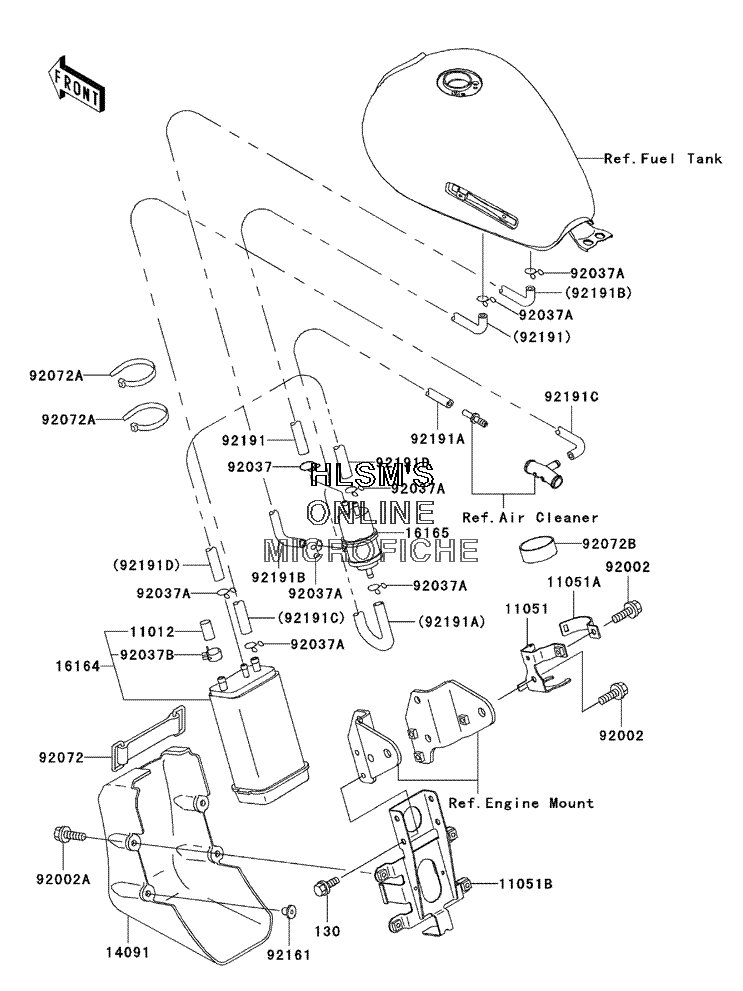

FUEL EVAPORATIVE SYSTEM для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT, FLANGED, 6X14 (BLACK) (CALIF. ONLY)BOLT, FLANGED, 6X14 (BLACK) (CALIF. ONLY)
-
1101211012-1388 CAP, CANISTER (CALIF. ONLY)CAP, CANISTER (CALIF. ONLY)
-
1105111051-1447 BRACKET, SEPARATOR (CALIF. ONLY)BRACKET, SEPARATOR (CALIF. ONLY)
-
11051A11051-1448 BRACKET, SEPARATOR (CALIF. ONLY)BRACKET, SEPARATOR (CALIF. ONLY)
-
11051B11051-1970 BRACKET, CANISTER (CALIF. ONLY)BRACKET, CANISTER (CALIF. ONLY)
-
1409114091-1279 COVER, CANISTER (CALIF. ONLY)COVER, CANISTER (CALIF. ONLY)
-
1616416164-1073 CANISTER (CALIF. ONLY)CANISTER (CALIF. ONLY)
-
1616516165-1001 SEPARATOR (CALIF. ONLY)SEPARATOR (CALIF. ONLY)
-
9200292002-1569 BOLT, 6X12 (CALIF. ONLY)BOLT, 6X12 (CALIF. ONLY)
-
92002A92002-1933 BOLT, 6X16 (CALIF. ONLY)BOLT, 6X16 (CALIF. ONLY)
-
9203792037-1104 CLAMP, HOSE (CALIF. ONLY)CLAMP, HOSE (CALIF. ONLY)
-
92037A92037-147 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
92037B92037-1512 CLAMP, CANISTER (CALIF. ONLY)CLAMP, CANISTER (CALIF. ONLY)
-
9207292072-045 BAND, L=90 (CALIF. ONLY)BAND, L=90 (CALIF. ONLY)
-
92072A92072-1237 BAND, L=250 (CALIF. ONLY)BAND, L=250 (CALIF. ONLY)
-
92072B92072-1393 BAND (CALIF. ONLY)BAND (CALIF. ONLY)
-
9216192161-1160 DAMPER (CALIF. ONLY)DAMPER (CALIF. ONLY)
-
9219192191-1507 TUBE (BLUE) (CALIF. ONLY)TUBE (BLUE) (CALIF. ONLY)
-
92191A92191-1508 TUBE (WHITE) (CALIF. ONLY)TUBE (WHITE) (CALIF. ONLY)
-
92191B92191-1509 TUBE (RED) (CALIF. ONLY)TUBE (RED) (CALIF. ONLY)
-
92191C92191-1537 TUBE (GREEN) (CALIF. ONLY)TUBE (GREEN) (CALIF. ONLY)
-
92191D92191-1538 TUBE (BLUE) (CALIF. ONLY)TUBE (BLUE) (CALIF. ONLY)
