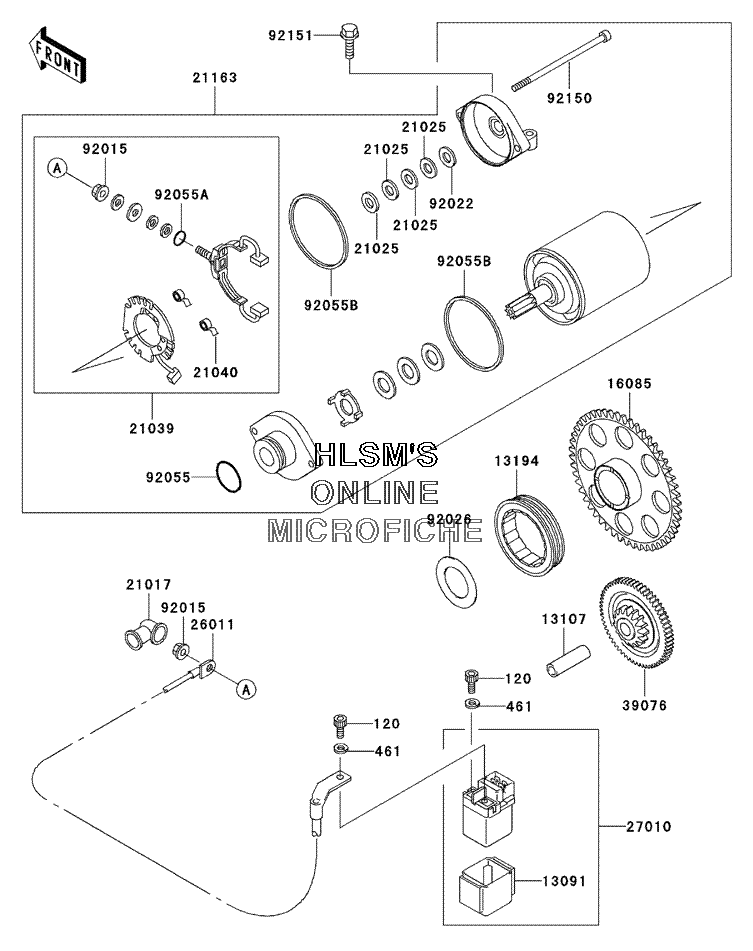

STARTER MOTOR для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
120120S0510 BOLT, SOCKETBOLT, SOCKET
-
461461K0500 WASHER, SPRING, 5MM (BLACK)WASHER, SPRING, 5MM (BLACK)
-
1309113091-1883 HOLDER, SWITCHHOLDER, SWITCH
-
1310713107-1106 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
1319413194-1083 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
1608516085-1318 GEAR, ONEWAY CLUTCHGEAR, ONEWAY CLUTCH
-
2101721017-017 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
2102521025-011 WASHER, 9.1X18X0.2WASHER, 9.1X18X0.2
-
2103921039-1060 BRUSH, CARBONBRUSH, CARBON
-
2104021040-1055 SPRING, BRUSHSPRING, BRUSH
-
2116321163-1263 STARTER, ELECTRICSTARTER, ELECTRIC
-
2601126011-1737 WIRE, LEAD, STARTER MOTORWIRE, LEAD, STARTER MOTOR
-
2701027010-1347 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3907639076-1073 LIMITER, STARTER GEARLIMITER, STARTER GEAR
-
9201592015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202292022-1132 WASHER, 9.1X18X0.8WASHER, 9.1X18X0.8
-
9202692026-087 SPACER, 29.1X47.5X1.2SPACER, 29.1X47.5X1.2
-
9205592055-1276 O-RINGO-RING
-
92055A92055-1370 O-RING, 4.5X2.0O-RING, 4.5X2.0
-
92055B92055-1381 O-RING, STARTER MOTORO-RING, STARTER MOTOR
-
9215092150-1913 BOLT, STARTER MOTORBOLT, STARTER MOTOR
-
9215192151-1500 BOLT, 6X22BOLT, 6X22
