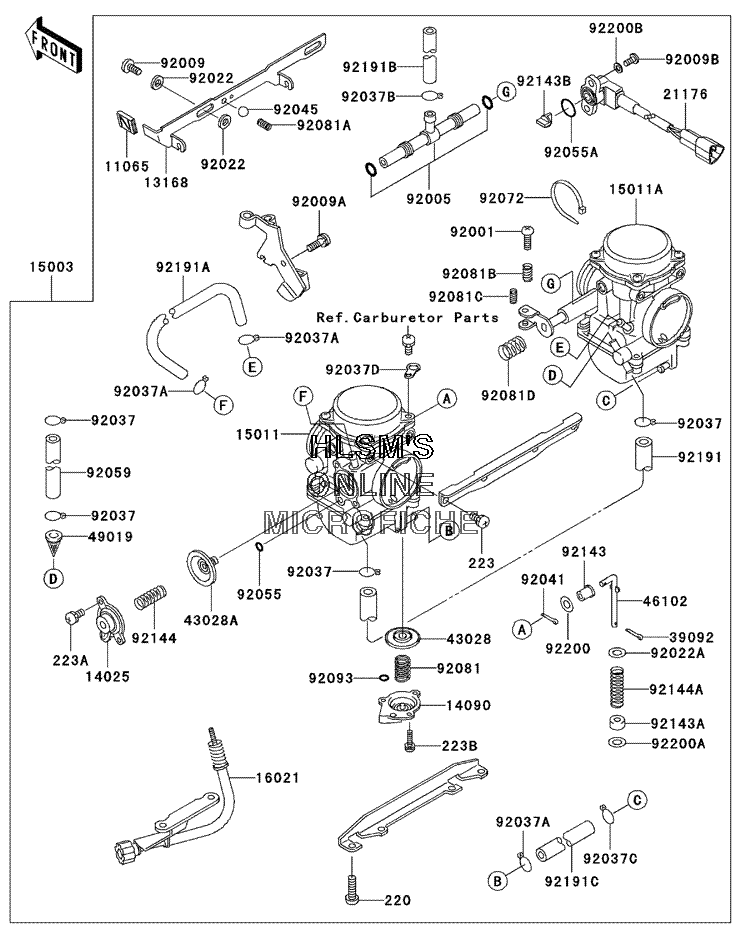

CARBURETOR для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
1106511065-1092 CAP, STARTER LEVERCAP, STARTER LEVER
-
1316813168-1679 LEVER, STARTERLEVER, STARTER
-
1402514025-1903 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1409014090-1635 COVER, ACCELERATORCOVER, ACCELERATOR
-
1500315003-1594 CARBURETOR, ASSY.CARBURETOR, ASSY.
-
1501115011-1795 CARBURETOR (LEFT)CARBURETOR (LEFT)
-
15011A15011-1796 CARBURETOR (RIGHT)CARBURETOR (RIGHT)
-
1602116021-1228 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
2117621176-1101 SENSORSENSOR
-
3909239092-1058 PIN, HAIRPIN, HAIR
-
4302843028-1077 DIAPHRAGMDIAPHRAGM
-
43028A43028-1084 DIAPHRAGM, 4.9MM, AIR CUT VALVEDIAPHRAGM, 4.9MM, AIR CUT VALVE
-
4610246102-1434 RODROD
-
4901949019-1092 FILTER, FUELFILTER, FUEL
-
9200192001-1998 BOLT, THROTTLE ADJUSTBOLT, THROTTLE ADJUST
-
9200592005-1326 FITTINGFITTING
-
9200992009-1262 SCREWSCREW
-
92009A92009-1365 SCREW, 5X10SCREW, 5X10
-
92009B92009-1781 SCREWSCREW
-
9202292022-1199 WASHER, 6.1X11X0.8, POLYACETALWASHER, 6.1X11X0.8, POLYACETAL
-
92022A92022-1480 WASHER, PLAIN, STOP SPRINGWASHER, PLAIN, STOP SPRING
-
9203792037-1075 CLAMP, FUEL TUBECLAMP, FUEL TUBE
-
92037A92037-1142 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1185 CLAMP, FUEL TAP HOSECLAMP, FUEL TAP HOSE
-
92037C92037-1396 CLAMP, TUBECLAMP, TUBE
-
92037D92037-1969 CLAMP, HOSECLAMP, HOSE
-
9204192041-1061 COTTERCOTTER
-
9204592045-1104 BALL, BRASS, SHAFT STOPBALL, BRASS, SHAFT STOP
-
9205592055-1245 O-RINGO-RING
-
92055A92055-1574 O-RING, SENSORO-RING, SENSOR
-
9205992059-1597 TUBE, 7.3X12.5X180TUBE, 7.3X12.5X180
-
9207292072-1250 BAND, L=100BAND, L=100
-
9208192081-1092 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
92081A92081-1619 SPRING, SHAFT STOPSPRING, SHAFT STOP
-
92081B92081-1620 SPRING, THROTTLE ADJUST UPPERSPRING, THROTTLE ADJUST UPPER
-
92081C92081-1621 SPRING, THROTTLE ADJUST LOWERSPRING, THROTTLE ADJUST LOWER
-
92081D92081-1876 SPRINGSPRING
-
9209392093-1046 SEAL, "U"RINGSEAL, "U"RING
-
9214392143-1790 COLLARCOLLAR
-
92143A92143-1791 COLLARCOLLAR
-
220220B0616 SCREW, PAN, CROS, 6X16SCREW, PAN, CROS, 6X16
-
223223C0510 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
223A223D0408 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
223B223D0410 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
92143B92143-1907 COLLARCOLLAR
-
9214492144-1072 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
92144A92144-1886 SPRINGSPRING
-
9219192191-1410 TUBE, FUELTUBE, FUEL
-
92191A92191-1411 TUBETUBE
-
92191B92191-1412 TUBE, 7X11X370TUBE, 7X11X370
-
92191C92191-1443 TUBETUBE
-
9220092200-1274 WASHERWASHER
-
92200A92200-1275 WASHERWASHER
-
92200B92200-1369 WASHERWASHER
