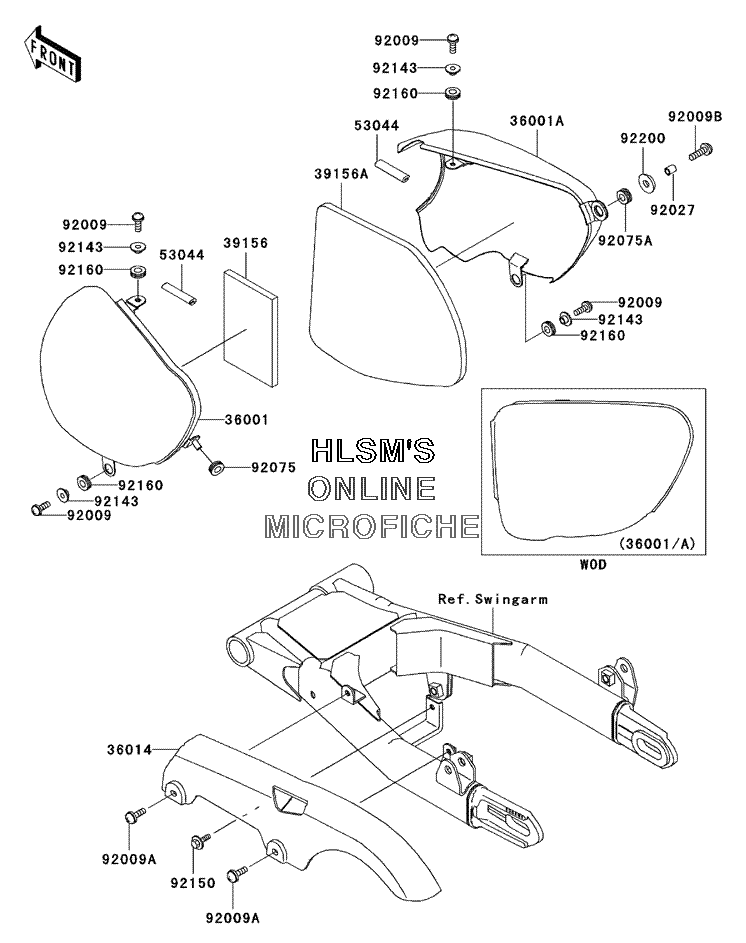

SIDE COVERS W/ CHAIN COVER для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
3600136001-1632-H8 COVER, SIDE (LEFT) (EBONY)COVER, SIDE (LEFT) (EBONY)
-
36001A36001-1636-H8 COVER, SIDE (RIGHT) (EBONY)COVER, SIDE (RIGHT) (EBONY)
-
3601436014-1234 CASE, CHAINCASE, CHAIN
-
3915639156-1635 PAD, SIDE COVER (LEFT)PAD, SIDE COVER (LEFT)
-
39156A39156-1636 PAD, SIDE COVER (RIGHT)PAD, SIDE COVER (RIGHT)
-
5304453044-1320 TRIM, L=40TRIM, L=40
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
92009A92009-1877 SCREW, 6X12SCREW, 6X12
-
92009B92009-3763 SCREW, 6X20SCREW, 6X20
-
9202792027-162 COLLAR, 6.8X10X12COLLAR, 6.8X10X12
-
9207592075-1629 DAMPERDAMPER
-
92075A92075-1634 DAMPERDAMPER
-
9214392143-1019 COLLAR, L=7.4COLLAR, L=7.4
-
9215092150-1133 BOLT, 6X14BOLT, 6X14
-
9216092160-1278 DAMPERDAMPER
-
9220092200-1153 WASHERWASHER
