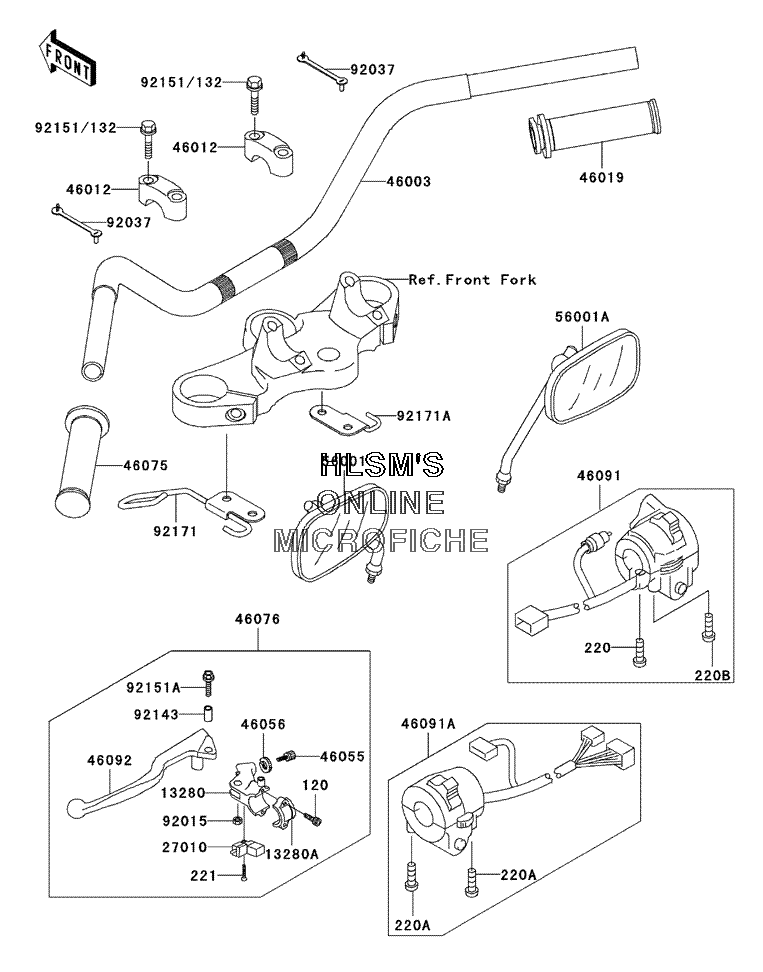

HANDLEBAR для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
120120S0625 BOLT, SOCKET, 6X25 (BLACK)BOLT, SOCKET, 6X25 (BLACK)
-
220220C0520 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220C0535 SCREW, PAN, CROSSCREW, PAN, CROS
-
220B220C0540 SCREW, PAN, CROSSCREW, PAN, CROS
-
221221B0320 SCREW, CSK, CROS, 3X20SCREW, CSK, CROS, 3X20
-
1328013280-1137 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
13280A13280-1138 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
2701027010-1268 SWITCH, CLUTCHSWITCH, CLUTCH
-
4600346003-1545 HANDLEHANDLE
-
4601246012-1294 HOLDER, HANDLE, UPPERHOLDER, HANDLE, UPPER
-
4601946019-1110 GRIP, ASSY., THROTTLEGRIP, ASSY., THROTTLE
-
4605546055-003 SCREW, CABLE ADJUST, 8MMSCREW, CABLE ADJUST, 8MM
-
4605646056-005 NUT, CABLE ADJUST LOCK, 8MMNUT, CABLE ADJUST LOCK, 8MM
-
4607546075-1175 GRIP (LEFT)GRIP (LEFT)
-
4607646076-1223 LEVER, ASSY., GRIP, CLUTCHLEVER, ASSY., GRIP, CLUTCH
-
4609146091-1778 HOUSING, ASSY., CONTROL (RIGHT)HOUSING, ASSY., CONTROL (RIGHT)
-
46091A46091-1779 HOUSING, ASSY., CONTROL (LEFT)HOUSING, ASSY., CONTROL (LEFT)
-
4609246092-1209 LEVER, GRIP, CLUTCHLEVER, GRIP, CLUTCH
-
5600156001-1451 MIRROR, ASSY. (LEFT)MIRROR, ASSY. (LEFT)
-
56001A56001-1452 MIRROR, ASSY. (RIGHT)MIRROR, ASSY. (RIGHT)
-
9201592015-1191 NUT, LOCK, 6MM (BLACK)NUT, LOCK, 6MM (BLACK)
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
9214392143-1351 COLLARCOLLAR
-
9215192151-1402 BOLT, FLANGED, 8X35BOLT, FLANGED, 8X35
-
92151A92151-1523 BOLTBOLT
-
9217192171-1146 CLAMP, HANDLE SWITCH HARNESS (LEFT)CLAMP, HANDLE SWITCH HARNESS (LEFT)
-
92171A92171-1148 CLAMP, HANDLE SWITCH HARNESS (RIGHT)CLAMP, HANDLE SWITCH HARNESS (RIGHT)
