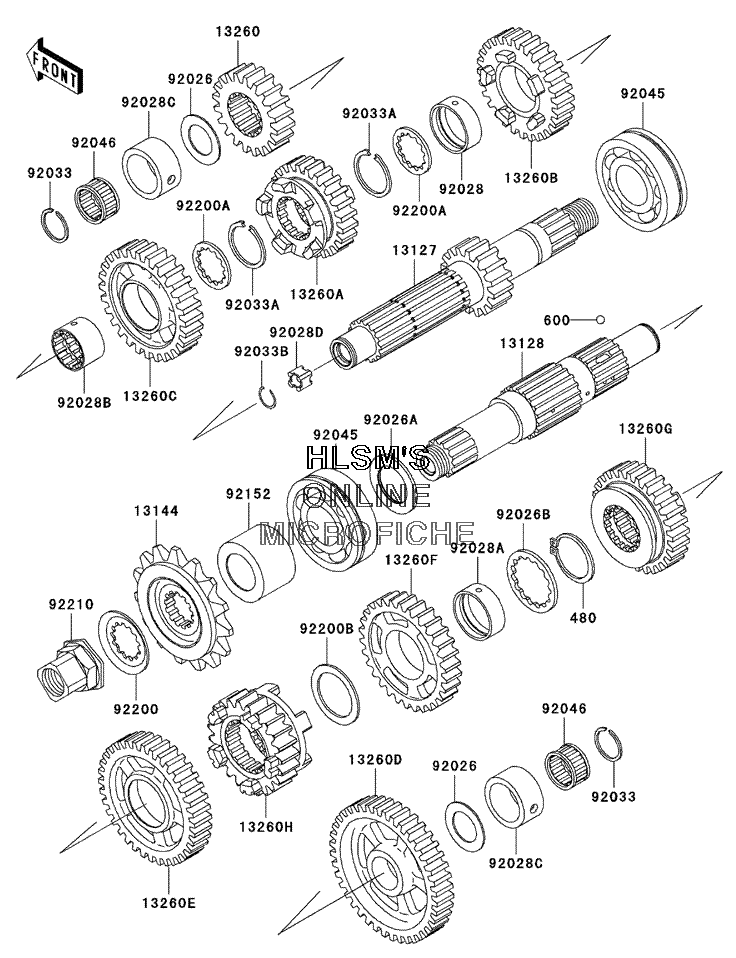

TRANSMISSION для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
480480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-1270 SHAFT, TRANSMISSION INPUT (17 TEETH)SHAFT, TRANSMISSION INPUT (17 TEETH)
-
1312813128-1234 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1314413144-1305 SPROCKET, OUTPUT (15 TEETH)SPROCKET, OUTPUT (15 TEETH)
-
1326013260-1783 GEAR, INPUT 2ND (22 TEETH)GEAR, INPUT 2ND (22 TEETH)
-
13260A13260-1784 GEAR, INPUT 3RD (25 TEETH)GEAR, INPUT 3RD (25 TEETH)
-
13260B13260-1785 GEAR, INPUT 4TH (28 TEETH)GEAR, INPUT 4TH (28 TEETH)
-
13260C13260-1786 GEAR, INPUT TOP (27 TEETH)GEAR, INPUT TOP (27 TEETH)
-
13260D13260-1787 GEAR, OUTPUT LOW (39 TEETH)GEAR, OUTPUT LOW (39 TEETH)
-
13260E13260-1788 GEAR, OUTPUT 2ND (35 TEETH)GEAR, OUTPUT 2ND (35 TEETH)
-
13260F13260-1789 GEAR, OUTPUT 3RD (31 TEETH)GEAR, OUTPUT 3RD (31 TEETH)
-
13260G13260-1790 GEAR, OUTPUT 4TH (28 TEETH)GEAR, OUTPUT 4TH (28 TEETH)
-
13260H13260-1791 GEAR, OUTPUT TOP (23 TEETH)GEAR, OUTPUT TOP (23 TEETH)
-
9202692026-1528 SPACER, 20.5X33X1.0SPACER, 20.5X33X1.0
-
92026A92026-1529 SPACER, 25.3X39X2.0SPACER, 25.3X39X2.0
-
92026B92026-1530 SPACER, TOOTHED, 28X30X2.0SPACER, TOOTHED, 28X30X2.0
-
9202892028-1449 BUSHING, INPUT GEARBUSHING, INPUT GEAR
-
92028A92028-1707 BUSHING, OUTPUT GEAR, 2NDBUSHING, OUTPUT GEAR, 2ND
-
92028B92028-1752 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
92028C92028-180 BUSHING, 26X34X16.6BUSHING, 26X34X16.6
-
92028D92028-1901 BUSHING, INPUT SHAFTBUSHING, INPUT SHAFT
-
9203392033-015 RING, SNAP, 20MMRING, SNAP, 20MM
-
92033A92033-1037 RING, SNAP, T=1.2RING, SNAP, T=1.2
-
92033B92033-1072 RING, SNAPRING, SNAP
-
9204592045-1224 BEARING, BALL, 6305N2SH2BEARING, BALL, 6305N2SH2
-
9204692046-1185 BEARING, NEEDLE, KMJ20X26X13.8X1BEARING, NEEDLE, KMJ20X26X13.8X1
-
9215292152-1148 COLLAR, SPROCKETCOLLAR, SPROCKET
-
9220092200-1065 WASHERWASHER
-
92200A92200-1240 WASHER, T=1.5WASHER, T=1.5
-
92200B92200-1278 WASHER, 29.9X40X1.5WASHER, 29.9X40X1.5
-
9221092210-1098 NUT, SPROCKETNUT, SPROCKET
