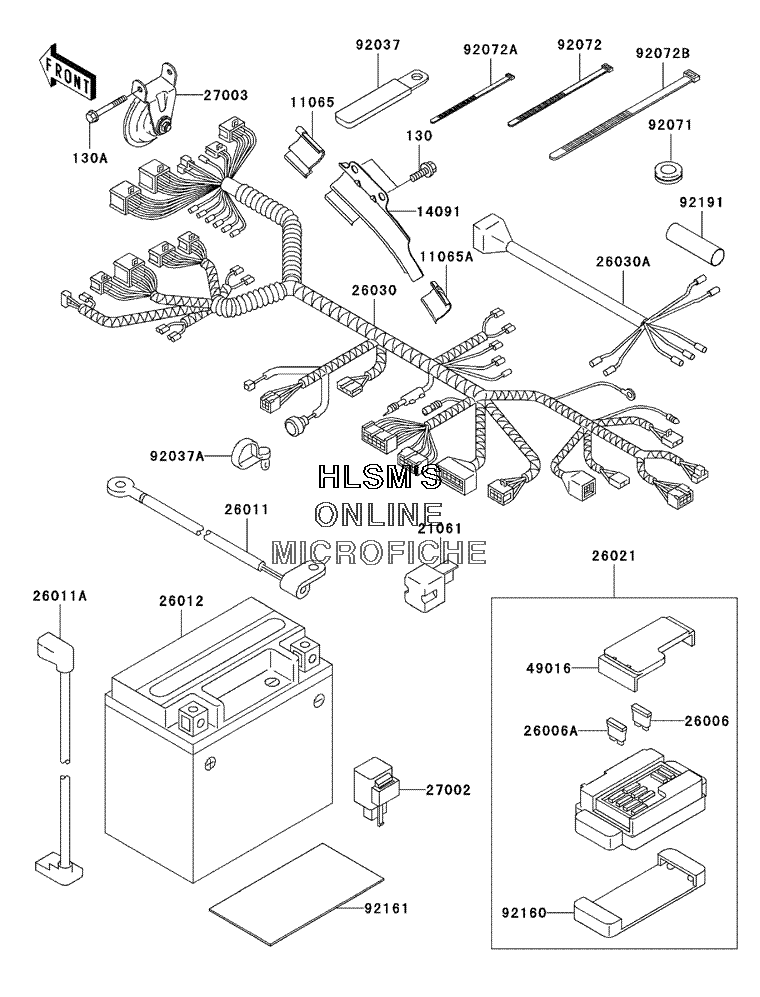

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
130130J0608 BOLT, FLANGED, 6X8BOLT, FLANGED, 6X8
-
130A130J0660 BOLT, FLANGED, 6X60BOLT, FLANGED, 6X60
-
1106511065-1141 CAP, HARNESS COVER, FRONTCAP, HARNESS COVER, FRONT
-
11065A11065-1142 CAP, HARNESS COVER, REARCAP, HARNESS COVER, REAR
-
1409114091-1274 COVER, HARNESSCOVER, HARNESS
-
2106121061-1003 RECTIFIERRECTIFIER
-
2600626006-1067 FUSE, 30A, GFUSE, 30A, G
-
26006A26006-1068 FUSE, 10A, RFUSE, 10A, R
-
2601126011-1711 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
26011A26011-1746 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
2601226012-1334 BATTERY, YTX14, BS, 12V 12AHBATTERY, YTX14, BS, 12V 12AH
-
2602126021-1096 JUNCTION BOXJUNCTION BOX
-
2603026030-1648 HARNESS, MAINHARNESS, MAIN
-
26030A26030-1656 HARNESS, REARHARNESS, REAR
-
2700227002-1101 RELAY, ASSY., TURN SIGNALRELAY, ASSY., TURN SIGNAL
-
2700327003-1416 HORNHORN
-
4901649016-1177 COVER, SEAL, FUSECOVER, SEAL, FUSE
-
9203792037-1679 CLAMPCLAMP
-
92037A92037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9207192071-099 GROMMET, 13MMGROMMET, 13MM
-
9207292072-1237 BAND, L=250BAND, L=250
-
92072A92072-1293 BAND, L=140BAND, L=140
-
92072B92072-1372 BAND, L=350BAND, L=350
-
9216092160-1650 DAMPER, JUNCTION BOXDAMPER, JUNCTION BOX
-
9216192161-1085 DAMPER, BATTERYDAMPER, BATTERY
-
9219192191-1419 TUBE, 25X26.6X90TUBE, 25X26.6X90
