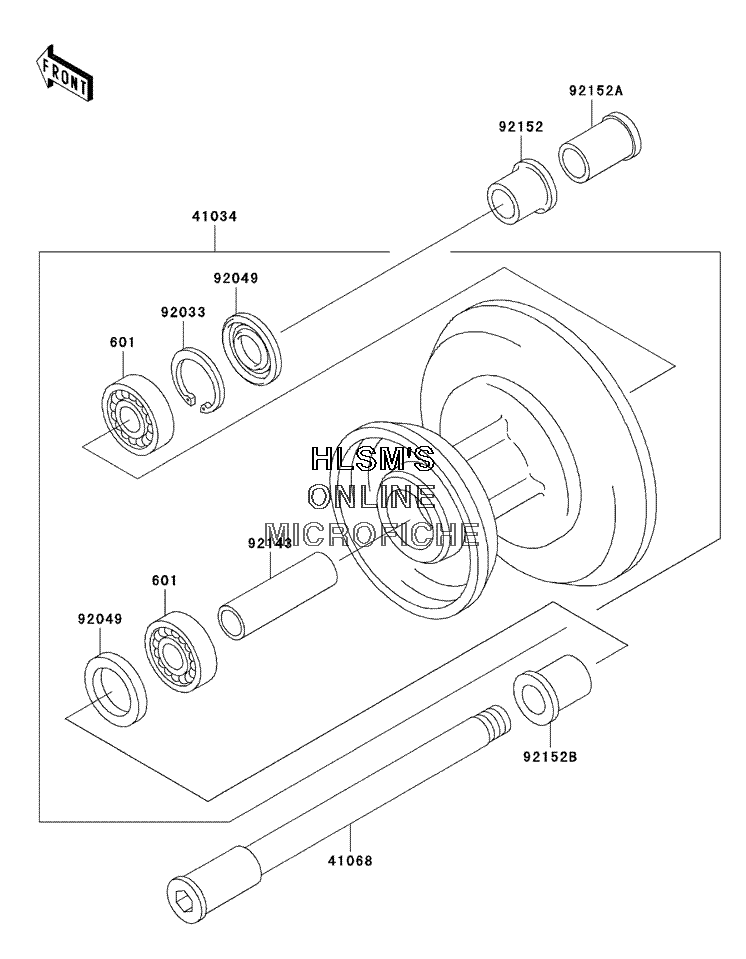

WHEEL - FRONT для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
601601B6203UG BEARING, BALL, #6203UGBEARING, BALL, #6203UG
-
4103441034-1322 DRUM, ASSY., FRONT BRAKEDRUM, ASSY., FRONT BRAKE
-
4106841068-1431 AXLE, FRONTAXLE, FRONT
-
9203392033-1040 RING, SNAP, 40MMRING, SNAP, 40MM
-
9204992049-1110 SEAL, OIL, AG1258AOSEAL, OIL, AG1258AO
-
9214392143-1208 COLLAR, 17.2X25X69COLLAR, 17.2X25X69
-
9215292152-1160 COLLAR, FRONT AXLE (RIGHT) L=25.5COLLAR, FRONT AXLE (RIGHT) L=25.5
-
92152A92152-1306 COLLAR, FRONT AXLE NUT, L=37.5COLLAR, FRONT AXLE NUT, L=37.5
-
92152B92152-1307 COLLAR, FRONT AXLE (LEFT) L=31.5COLLAR, FRONT AXLE (LEFT) L=31.5
