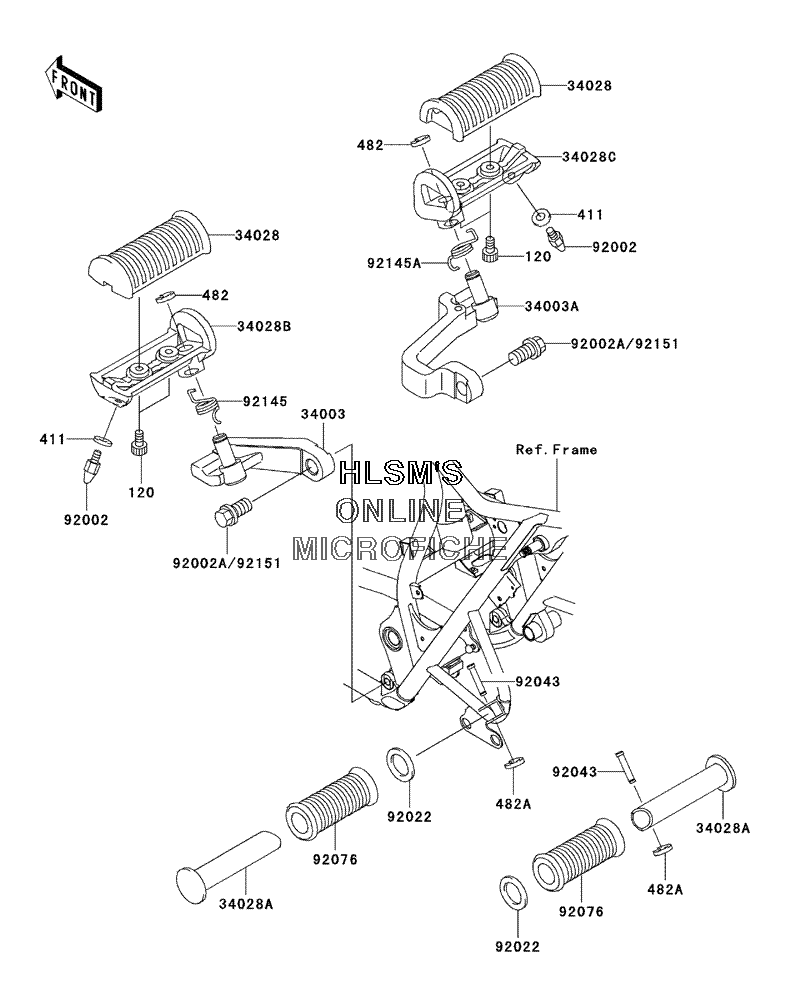

FOOTRESTS для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
120120S0512 BOLT, SOCKETBOLT, SOCKET
-
411411F0600 WASHER, PLAIN, 6MM (BLACK)WASHER, PLAIN, 6MM (BLACK)
-
482482L0100 CIRCLIP, TYPE, E, 10MMCIRCLIP, TYPE, E, 10MM
-
482A482L5000 CIRCLIP, TYPE, E, 5MMCIRCLIP, TYPE, E, 5MM
-
3400334003-1491 HOLDER, STEP, FRONT (LEFT)HOLDER, STEP, FRONT (LEFT)
-
34003A34003-1492 HOLDER, STEP, FRONT (RIGHT)HOLDER, STEP, FRONT (RIGHT)
-
3402834028-1372 STEP, RUBBERSTEP, RUBBER
-
34028A34028-1373 STEP, REARSTEP, REAR
-
34028B34028-1477 STEP, FRONT (LEFT)STEP, FRONT (LEFT)
-
34028C34028-1478 STEP, FRONT (RIGHT)STEP, FRONT (RIGHT)
-
9200292002-1742 BOLT, BANK SENSORBOLT, BANK SENSOR
-
9202292022-1568 WASHER, 20X30X2.3WASHER, 20X30X2.3
-
9204392043-1607 PIN, 6X30PIN, 6X30
-
9207692076-020 DAMPERDAMPER
-
9214592145-1217 SPRING, STEP RETURN (LEFT)SPRING, STEP RETURN (LEFT)
-
92145A92145-1218 SPRING, STEP RETURN (RIGHT)SPRING, STEP RETURN (RIGHT)
-
9215192151-1942 BOLT, FLANGED, 12X30BOLT, FLANGED, 12X30
