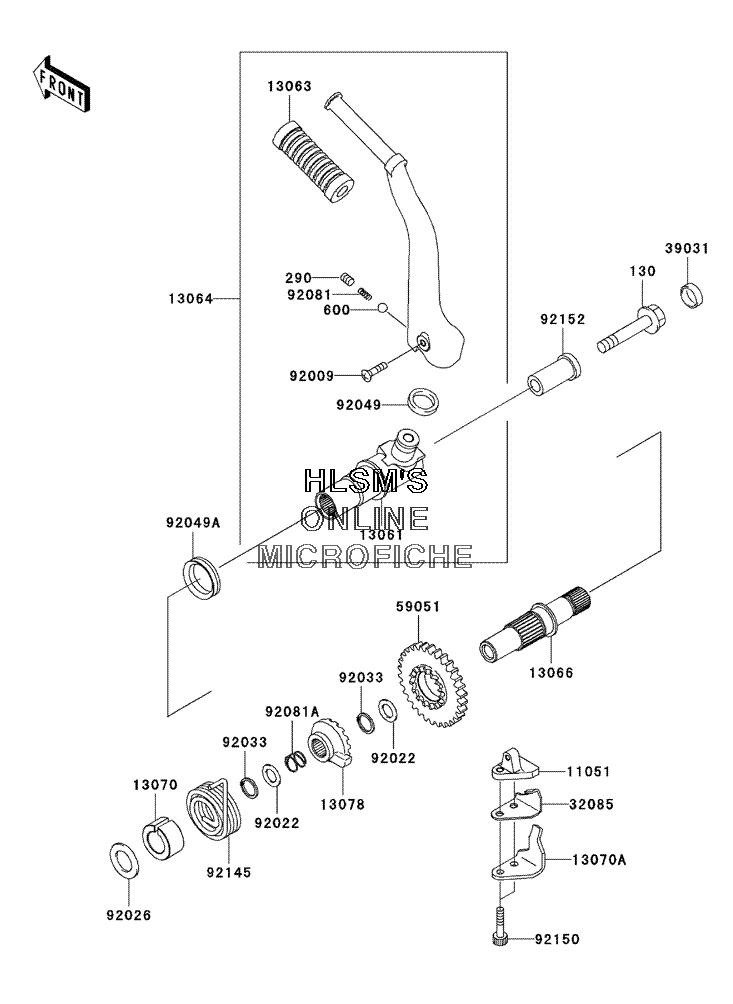

KICKSTARTER MECHANISM для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
130130T1070 BOLT, FLANGEDBOLT, FLANGED
-
290290P0812 SCREW, SET, SOCKETSCREW, SET, SOCKET
-
600600A0800 BALL, STEEL, 1/4"BALL, STEEL, 1/4"
-
1105111051-1210 BRACKETBRACKET
-
1306113061-1728 BOSS, KICK PEDALBOSS, KICK PEDAL
-
1306313063-004 DAMPER, KICK PEDALDAMPER, KICK PEDAL
-
1306413064-1192 LEVER, ASSY., KICK, PEDALLEVER, ASSY., KICK, PEDAL
-
1306613066-1102 SHAFT, KICKSHAFT, KICK
-
1307013070-1334 GUIDE, RETURN SPRINGGUIDE, RETURN SPRING
-
13070A13070-1335 GUIDEGUIDE
-
1307813078-1051 RATCHETRATCHET
-
3208532085-1488 STOPPERSTOPPER
-
3903139031-1061 CAP, ENDCAP, END
-
5905159051-1376 GEAR, SPUR, KICK SHAFTGEAR, SPUR, KICK SHAFT
-
9200992009-1590 SCREW, 6X30SCREW, 6X30
-
9202292022-159 WASHER, 25.3X30X0.5WASHER, 25.3X30X0.5
-
9202692026-1537 SPACER, KICK GUIDESPACER, KICK GUIDE
-
9203392033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
9204992049-1406 SEAL, OILSEAL, OIL
-
92049A92049-1505 SEAL, OILSEAL, OIL
-
9208192081-020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
92081A92081-097 SPRINGSPRING
-
9214592145-1219 SPRING, KICK RETURNSPRING, KICK RETURN
-
9215092150-1653 BOLT, SOCKET, 6X40BOLT, SOCKET, 6X40
-
9215292152-1145 COLLAR, KICKSTARTERCOLLAR, KICKSTARTER
