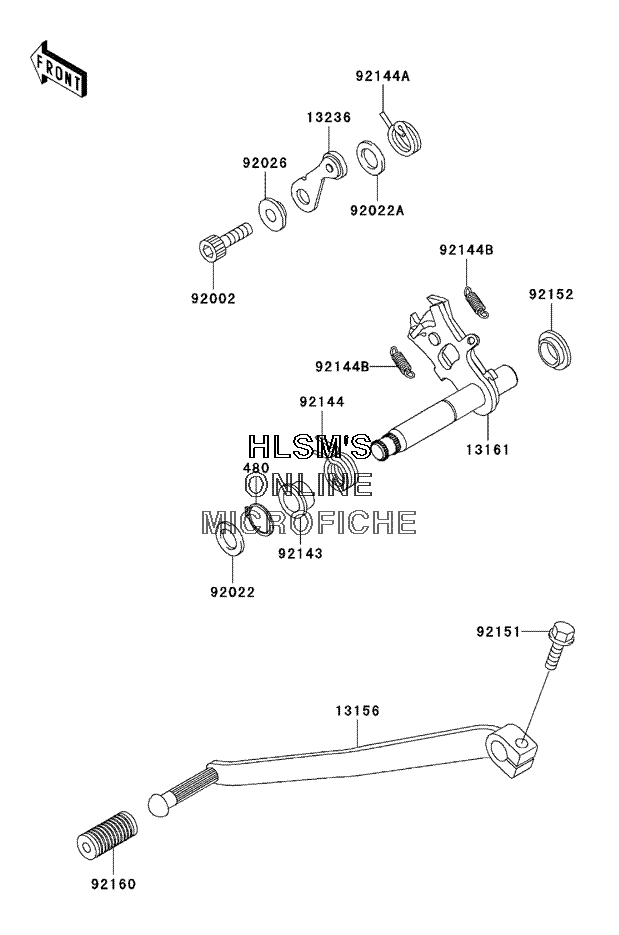

GEAR CHANGE MECHANISM для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
480480J1300 CIRCLIP, TYPE, C, 13MMCIRCLIP, TYPE, C, 13MM
-
1315613156-1482 LEVER, CHANGE, PEDALLEVER, CHANGE, PEDAL
-
1316113161-1257 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1323613236-1253 LEVER, COMP, POSITIONLEVER, COMP, POSITION
-
9200292002-1778 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9202292022-1496 WASHER, 13.3X20X1WASHER, 13.3X20X1
-
92022A92022-1827 WASHER, 6X12.8X1.2WASHER, 6X12.8X1.2
-
9202692026-1217 SPACERSPACER
-
9214392143-1498 COLLAR, RETURN SPRINGCOLLAR, RETURN SPRING
-
9214492144-1628 SPRING, CHANGE SHAFT RETURNSPRING, CHANGE SHAFT RETURN
-
92144A92144-1873 SPRING, LEVER POSITIONSPRING, LEVER POSITION
-
92144B92144-1975 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
9215192151-1226 BOLT, 6X20BOLT, 6X20
-
9215292152-1075 COLLARCOLLAR
-
9216092160-1036 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
