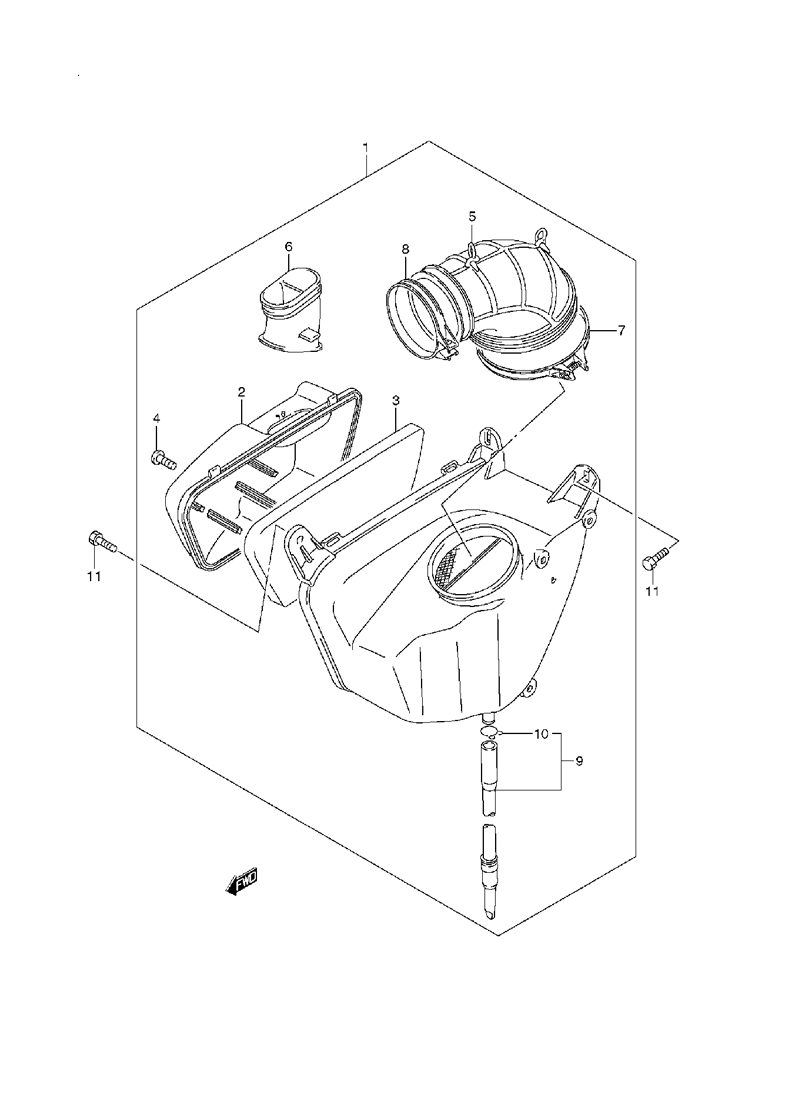

AIR CLEANER (REAR) для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
113700-38B70 CLEANER ASSY, AIR REAR (INCL. 2-10)CLEANER ASSY, AIR REAR (INCL. 2-10)
-
213740-38B51 CAPCAP
-
313781-38B60 FILTERFILTER
-
402142-0516B SCREWSCREW
-
513881-38B50 TUBE, OUTLETTUBE, OUTLET
-
613891-38B50 TUBE, INLETTUBE, INLET
-
709402-82202 CLAMPCLAMP
-
809402-58208 CLAMPCLAMP
-
913870-11458 TUBE, DRAINTUBE, DRAIN
-
1009401-13409 CLIPCLIP
-
1101500-06207 BOLTBOLT
