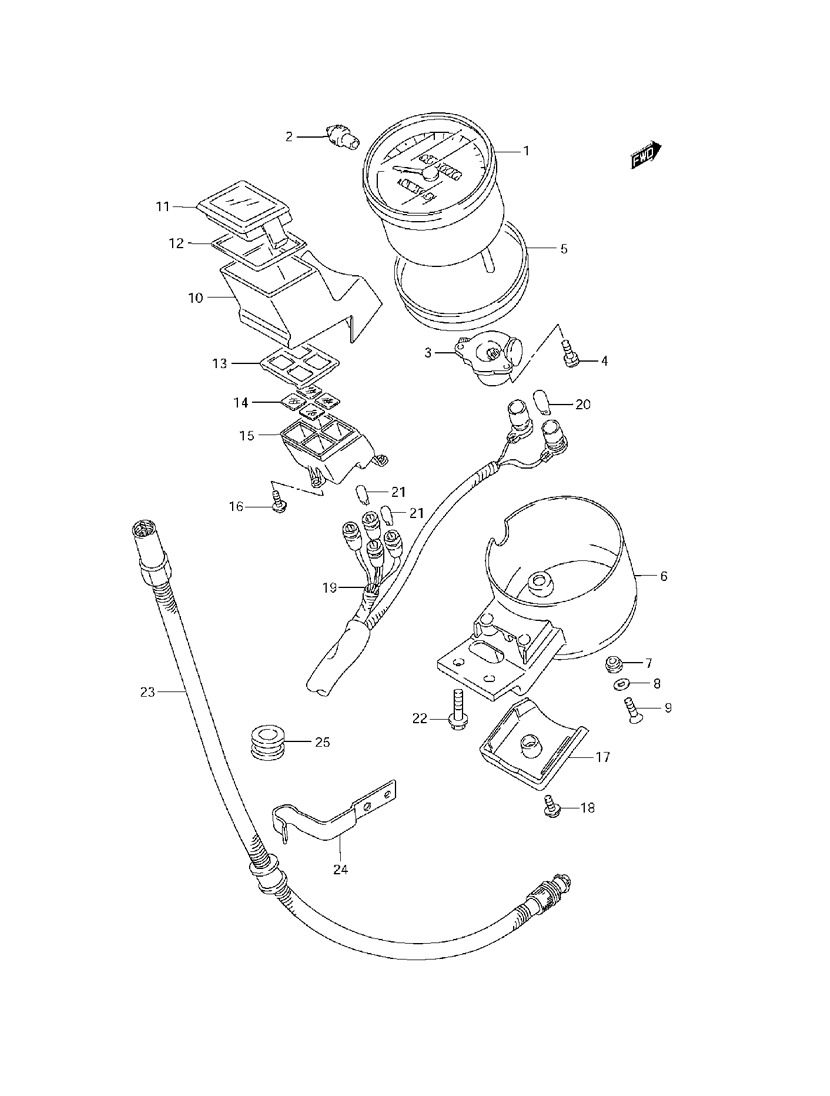

SPEEDOMETER для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
134110-38BB1 SPEEDOMETER (MILE/KILO)SPEEDOMETER (MILE/KILO)
-
134110-38B60 SPEEDOMETER (KILO) (CANADA ONLY)SPEEDOMETER (KILO) (CANADA ONLY)
-
234124-39A10 KNOB, TRIPKNOB, TRIP
-
334131-19B00 BOX, METER GEARBOX, METER GEAR
-
402112-3410A SCREWSCREW
-
534288-39A00 CUSHION, METERCUSHION, METER
-
634193-38B00 COVER, METERCOVER, METER
-
734189-05A30 CUSHIONCUSHION
-
834181-38A00 WASHERWASHER
-
902112-04087 SCREWSCREW
-
1036381-39A20 BOX, PILOT LAMPBOX, PILOT LAMP
-
1136393-38B60 LENS, PILOT BOXLENS, PILOT BOX
-
1236395-38A00 CUSHIONCUSHION
-
1336386-38A00 PLATE, PILOT LENSPLATE, PILOT LENS
-
1436300-38870 LENS SET, PILOT LAMPLENS SET, PILOT LAMP
-
1536382-38B30 CASE, PILOT LAMPCASE, PILOT LAMP
-
1602112-73083 SCREWSCREW
-
1734152-38B31 COVER, PILOT BOXCOVER, PILOT BOX
-
1802112-74083 SCREWSCREW
-
1934173-38BA0 SOCKET, METERSOCKET, METER
-
2009471-12028 BULB (12V,3.4W)BULB (12V,3.4W)
-
2109471-12108 BULB (12V,1.7)BULB (12V,1.7)
-
2202162-0616B SCREWSCREW
-
2334910-38B11 CABLE ASSY, SPEEDOMETERCABLE ASSY, SPEEDOMETER
-
2434938-38A02 GUIDE, METER CABLEGUIDE, METER CABLE
-
2509308-13005 GROMMETGROMMET
