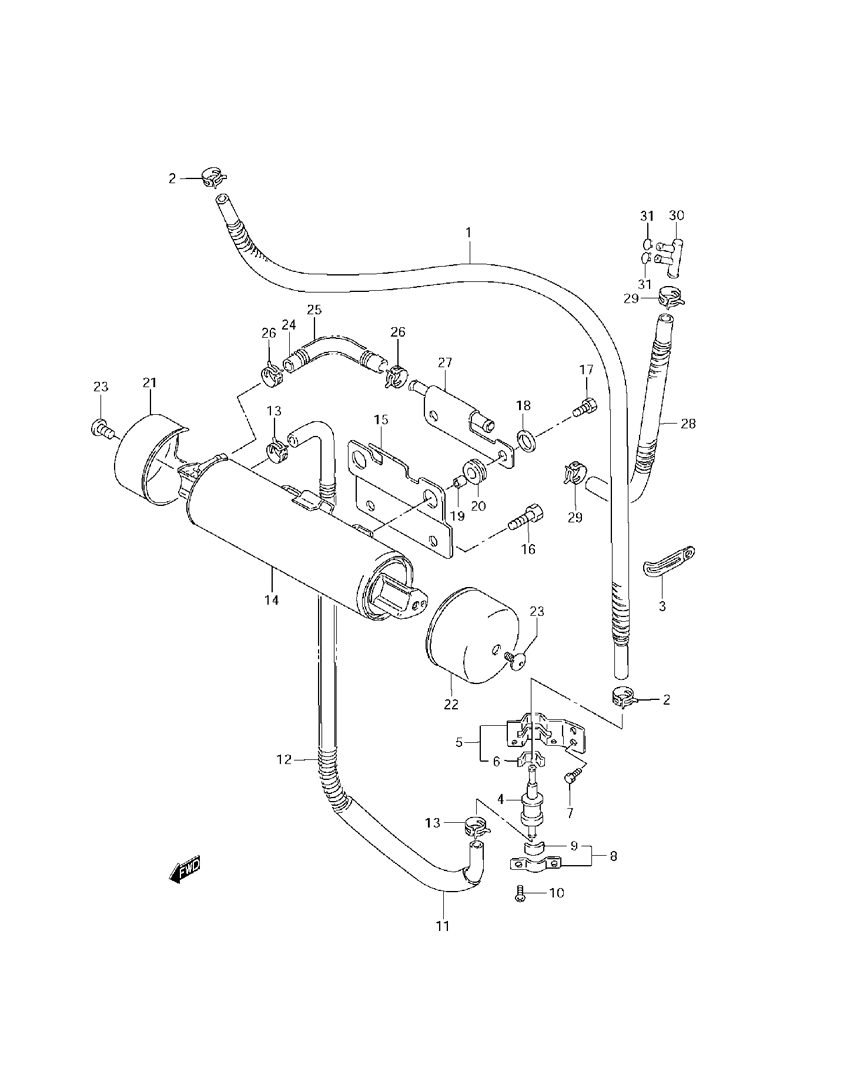

EVAP SYSTEM (CALIF ONLY) для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
144460-38BA0 HOSE, FUEL TANK JOINTHOSE, FUEL TANK JOINT
-
209401-11413 CLIPCLIP
-
309404-06433 CLAMPCLAMP
-
444240-38A00 VALVE, FUEL TANK BREATHERVALVE, FUEL TANK BREATHER
-
544890-38B01 BRACKET, BREATHER VALVE (INCL. 6)BRACKET, BREATHER VALVE (INCL. 6)
-
644894-24A00 CUSHIONCUSHION
-
701500-0510B BOLTBOLT
-
844892-24A00 PLATE, BREATHER VALVE (INCL. 9)PLATE, BREATHER VALVE (INCL. 9)
-
944894-24A00 CUSHIONCUSHION
-
1002142-0410B SCREWSCREW
-
1144450-38BA0 HOSE, VALVE/CANISTER JOINTHOSE, VALVE/CANISTER JOINT
-
1209440-14026 SPRINGSPRING
-
1309401-11413 CLIPCLIP
-
1417210-38B10 CANISTERCANISTER
-
1544870-38B00 PLATE, CANISTER FITTINGPLATE, CANISTER FITTING
-
1601580-0816B BOLT, PLATEBOLT, PLATE
-
1701580-0616B BOLT, CANISTERBOLT, CANISTER
-
1809160-06054 WASHERWASHER
-
1909180-06038 SPACERSPACER
-
2009320-08021 CUSHIONCUSHION
-
2144991-38B01 COVER, CANISTERCOVER, CANISTER
-
2244991-38B10 COVER, CANISTERCOVER, CANISTER
-
2309139-06078 SCREWSCREW
-
2444445-38BA0 HOSE, CANISTER PIPE JOINTHOSE, CANISTER PIPE JOINT
-
2509440-14025 SPRINGSPRING
-
2609401-11415 CLIPCLIP
-
2744940-38B00 PIPE, CANISTERPIPE, CANISTER
-
2844440-38BA0 HOSE, PIPE JOINTHOSE, PIPE JOINT
-
2909401-11415 CLIPCLIP
-
3009367-06004 SEPARATOR, VALVESEPARATOR, VALVE
-
3109401-08401 CLIPCLIP
