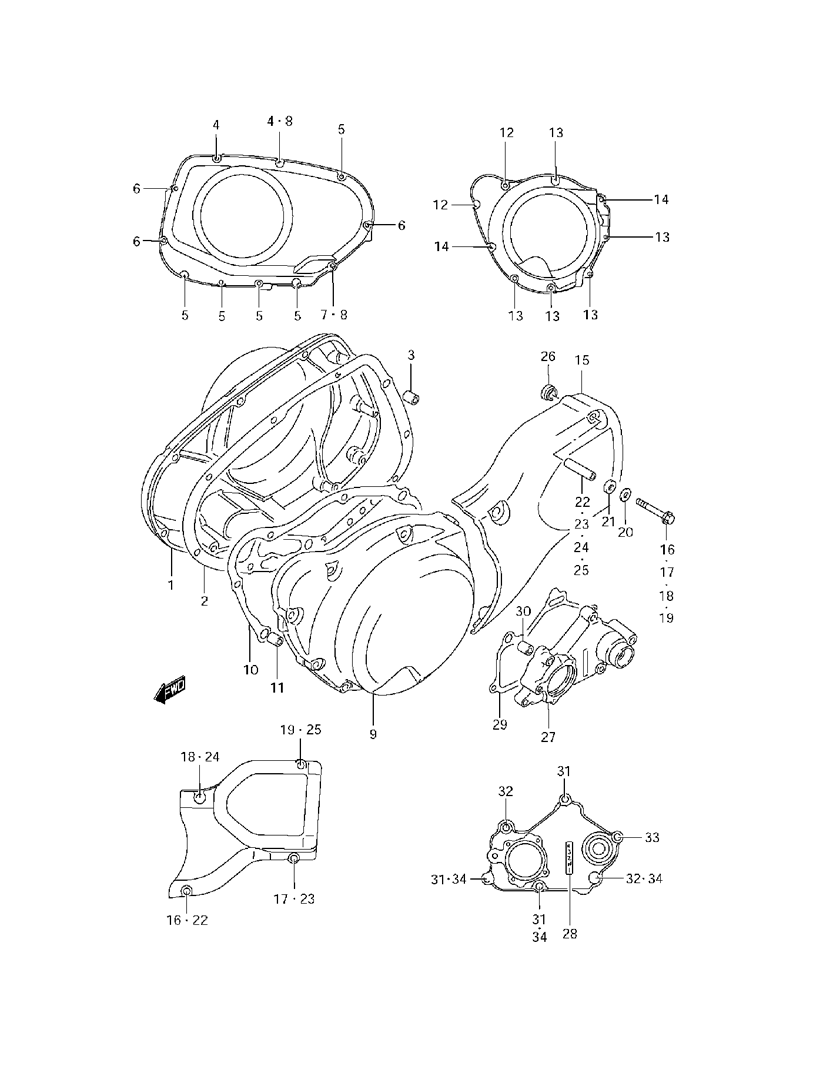

CRANKCASE COVER для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
111341-38B01 COVER, CLUTCHCOVER, CLUTCH
-
211482-38B20 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
304211-09189 PINPIN
-
409103-06213 BOLT (6X30)BOLT (6X30)
-
509103-06213 BOLT (6X30)BOLT (6X30)
-
609103-06215 BOLT (6X40)BOLT (6X40)
-
709103-06216 BOLT (6X55)BOLT (6X55)
-
809168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
911351-38B00 COVER, GENERATORCOVER, GENERATOR
-
1011483-38B10 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1109206-11007 PINPIN
-
1209103-06213 BOLT (6X30)BOLT (6X30)
-
1309103-06214 BOLT (6X34)BOLT (6X34)
-
1409103-06224 BOLTBOLT
-
1511361-38B00 COVER, SECONDARY CASECOVER, SECONDARY CASE
-
1609103-06214 BOLT (6X34)BOLT (6X34)
-
1709103-06215 BOLT (6X40)BOLT (6X40)
-
1809103-06261 BOLT (6X60)BOLT (6X60)
-
1909103-06261 BOLT (6X60)BOLT (6X60)
-
2009160-06125 WASHERWASHER
-
2109161-09005 CUSHION, OUTERCUSHION, OUTER
-
2209180-06301 SPACER (L:18.2)SPACER (L:18.2)
-
2309180-06302 SPACER (L:23)SPACER (L:23)
-
2409180-06303 SPACER (L:43)SPACER (L:43)
-
2509180-06281 SPACER (L:45.9)SPACER (L:45.9)
-
2609161-09005 CUSHION, INNERCUSHION, INNER
-
2711371-38B20 COVER, GEAR SHIFT (INCL. 28)COVER, GEAR SHIFT (INCL. 28)
-
2868392-38B00 LABEL, GEAR SHIFT PATTERNLABEL, GEAR SHIFT PATTERN
-
2911485-38B20 GASKET, GEAR SHIFT COVERGASKET, GEAR SHIFT COVER
-
3004211-09109 PINPIN
-
3109103-06212 BOLTBOLT
-
3209103-06214 BOLTBOLT
-
3309103-06224 BOLTBOLT
-
3409168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
