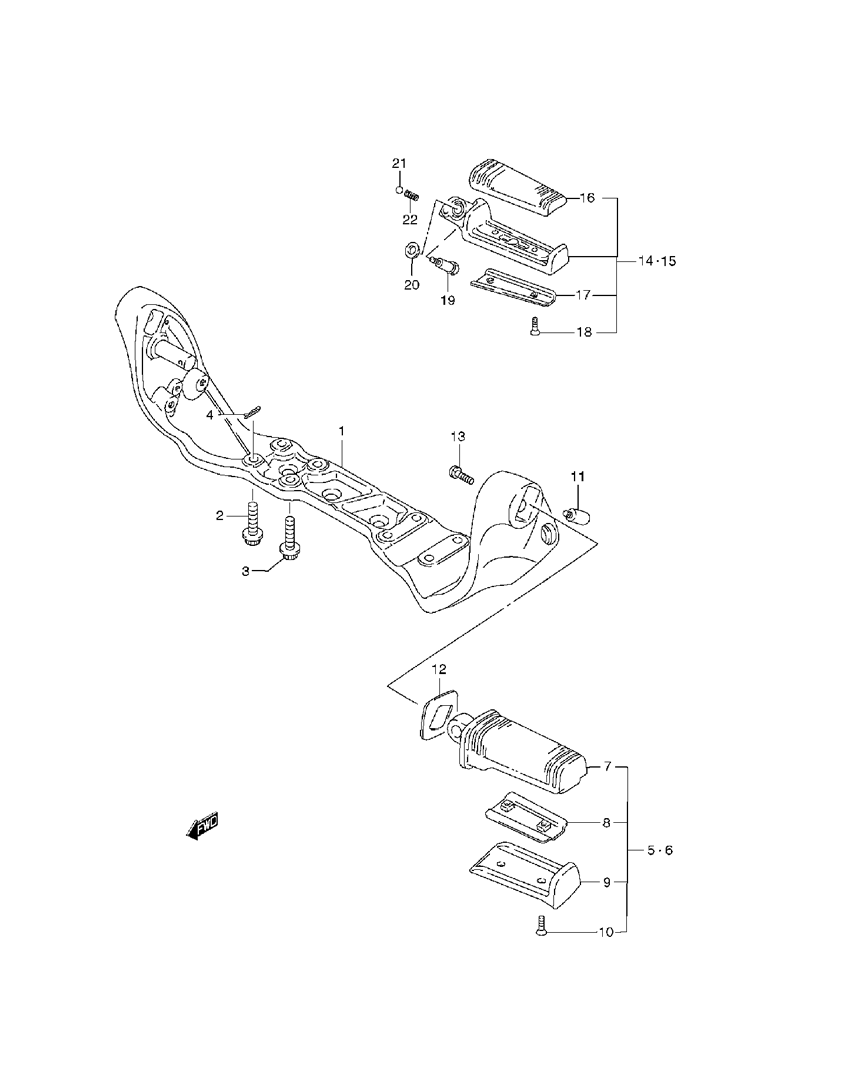

FOOTREST для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
143510-39B20 BRACKET, FRONT FOOTRESTBRACKET, FRONT FOOTREST
-
209106-08064 BOLT, OUTERBOLT, OUTER
-
307120-0820B BOLT, INNERBOLT, INNER
-
409385-08005 PINPIN
-
543501-38B11 FOOTREST ASSY, FRONT RIGHT HAND (INCL. 7-10)FOOTREST ASSY, FRONT RIGHT HAND (INCL. 7-10)
-
643502-38B11 FOOTREST ASSY, FRONT LEFT HAND (INCL. 7-10)FOOTREST ASSY, FRONT LEFT HAND (INCL. 7-10)
-
743551-38B00 RUBBERRUBBER
-
843580-38B10 PLATE, RUBBERPLATE, RUBBER
-
943585-38B11 COVER, FRONT FOOTRESTCOVER, FRONT FOOTREST
-
1009127-05018 SCREWSCREW
-
1109106-06101 BOLT, RUBBERBOLT, RUBBER
-
1243546-38B01 WASHER, FRONT FOOTRESTWASHER, FRONT FOOTREST
-
1302112-3512B SCREW, RUBBER STOPPERSCREW, RUBBER STOPPER
-
1443600-38E00 FOOTREST ASSY, PILLION RIGHT HAND (INCL. 16-18)FOOTREST ASSY, PILLION RIGHT HAND (INCL. 16-18)
-
1543700-38E00 FOOTREST ASSY, PILLION LEFT HAND (INCL. 16-18)FOOTREST ASSY, PILLION LEFT HAND (INCL. 16-18)
-
1643612-38A00 RUBBER, PILLION FOOTRESTRUBBER, PILLION FOOTREST
-
1743632-38A00 PLATE, RUBBER STOPPERPLATE, RUBBER STOPPER
-
1809127-05017 SCREWSCREW
-
1909111-06050 BOLTBOLT
-
2008221-08164 SHIMSHIM
-
2106111-07004 BALLBALL
-
2209440-05005 SPRINGSPRING
