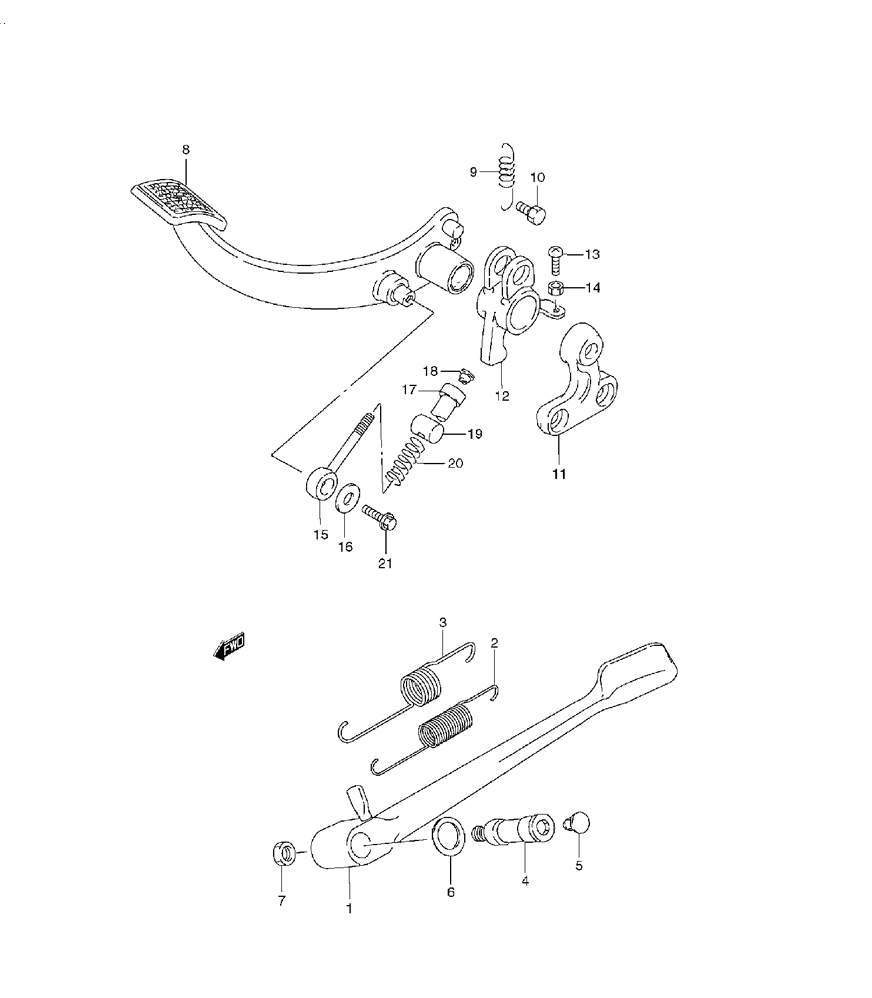

BRAKE PEDAL W/ STAND для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
142310-38B01 STAND, PROPSTAND, PROP
-
209443-16014 SPRING, INNERSPRING, INNER
-
309443-22007 SPRING, OUTERSPRING, OUTER
-
442341-38B01 BOLTBOLT
-
509250-08014 CAPCAP
-
609181-15158 SHIMSHIM
-
709140-10044 NUTNUT
-
843100-38B00 PEDAL ASSY, BRAKEPEDAL ASSY, BRAKE
-
909443-10033 SPRINGSPRING
-
1009128-06044 BOLTBOLT
-
1143519-38B01 BRACKET, BRAKE PEDAL BOSSBRACKET, BRAKE PEDAL BOSS
-
1243120-38B02 LEVER, REAR BRAKELEVER, REAR BRAKE
-
1309125-05070 SCREW, STOP SWITCH ADJUSTERSCREW, STOP SWITCH ADJUSTER
-
1408310-00057 NUTNUT
-
1543271-38B00 LINK, BRAKE PEDALLINK, BRAKE PEDAL
-
1609160-06036 WASHERWASHER
-
1743272-38B00 NUT, BRAKE PEDAL LINKNUT, BRAKE PEDAL LINK
-
1809250-05008 CAPCAP
-
1909209-13008 PINPIN
-
2009440-09029 SPRINGSPRING
-
2101547-06167 BOLTBOLT
