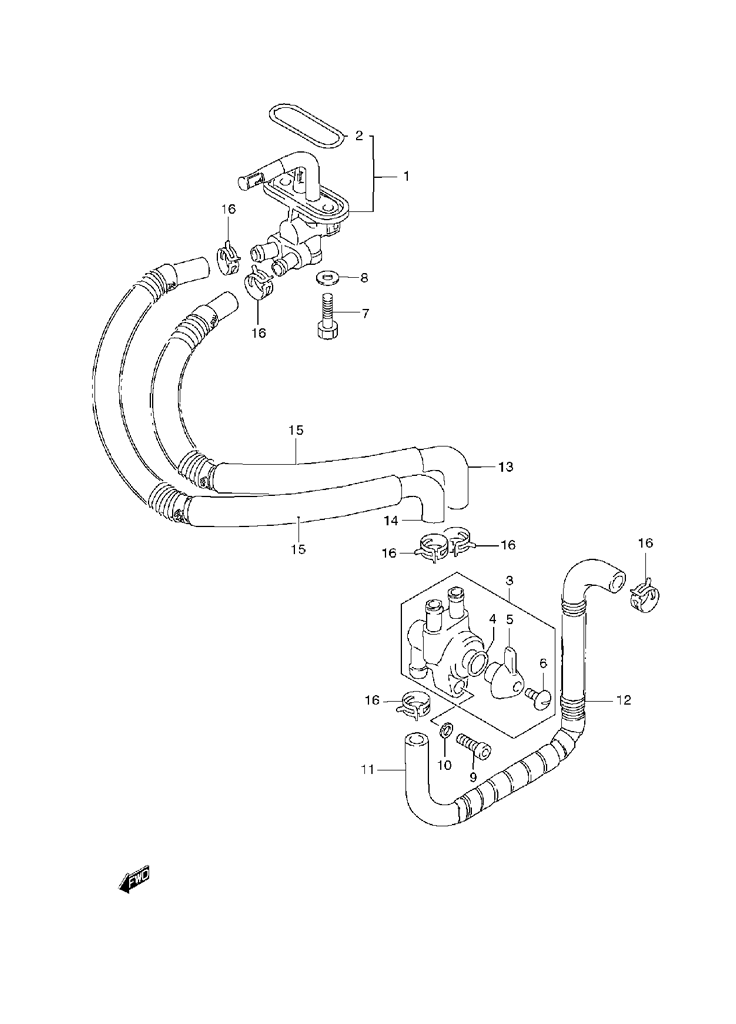

FUEL COCK ASSY. для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
144300-38B02 COCK ASSY, FUEL NO.1 (INCL. 2)COCK ASSY, FUEL NO.1 (INCL. 2)
-
244348-28070 O RING, JOINTO RING, JOINT
-
344300-38B13 COCK ASSY, FUEL NO.2 (INCL. 4-6)COCK ASSY, FUEL NO.2 (INCL. 4-6)
-
444353-12C01 O RING, LEVERO RING, LEVER
-
544306-38A00 LEVERLEVER
-
644307-38A00 SCREWSCREW
-
709128-06006 BOLTBOLT
-
809168-06026 GASKETGASKET
-
907130-0512B BOLT, FUEL COCK NO.2BOLT, FUEL COCK NO.2
-
1008321-0105B LOCK WASHERLOCK WASHER
-
1144420-38BA0 HOSE, FUEL PUMP AND COCKHOSE, FUEL PUMP AND COCK
-
1209440-14026 SPRINGSPRING
-
1344430-38BA0 HOSE, FUEL NO.1HOSE, FUEL NO.1
-
1444430-38BB0 HOSE, FUEL NO.2HOSE, FUEL NO.2
-
1544311-17E01 TUBE, FUEL HOSE (CANADA ONLY)TUBE, FUEL HOSE (CANADA ONLY)
-
1544423-44B00 TUBE, FUEL HOSE (USA ONLY)TUBE, FUEL HOSE (USA ONLY)
-
1609401-11415 CLIP, FUEL HOSECLIP, FUEL HOSE
