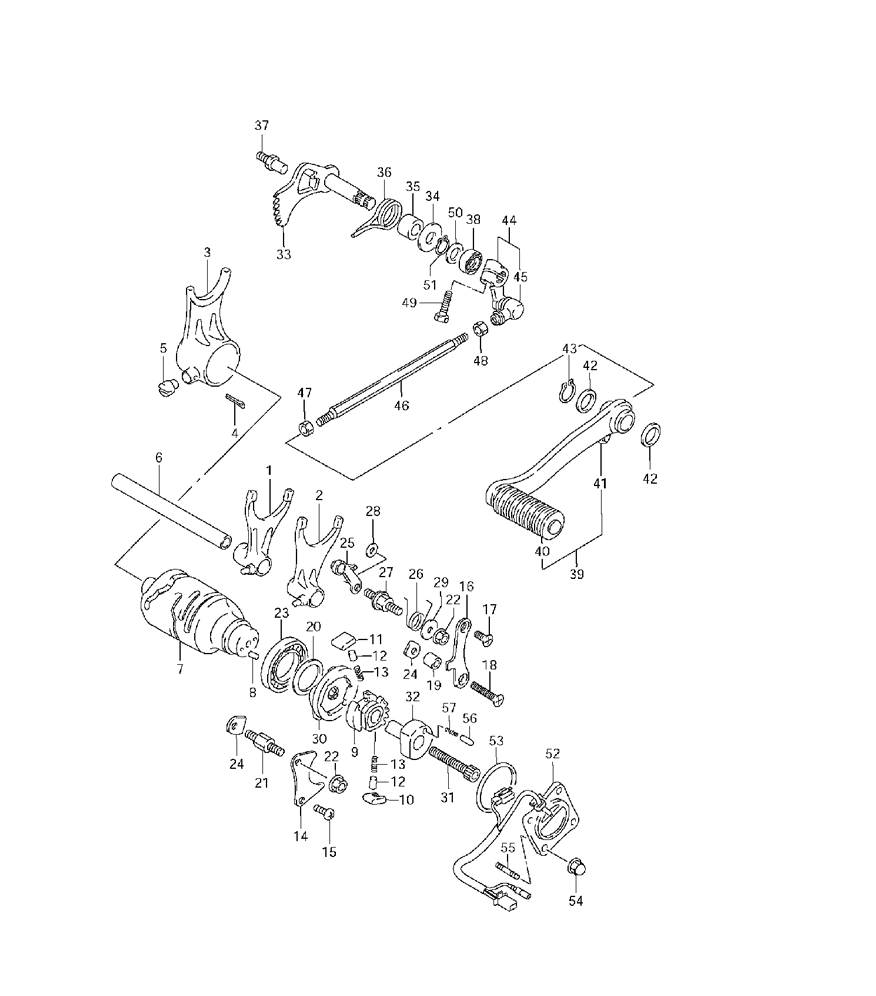

GEAR SHIFTING для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
125211-38B11 FORK, GEAR SHIFTING NO.1FORK, GEAR SHIFTING NO.1
-
225221-38B10 FORK, GEAR SHIFTING NO.2FORK, GEAR SHIFTING NO.2
-
325231-38B10 FORK, GEAR SHIFTING NO.3FORK, GEAR SHIFTING NO.3
-
404111-2525A PINPIN
-
509209-10002 PINPIN
-
625411-38B01 SHAFT, GEAR SHIFTING FORKSHAFT, GEAR SHIFTING FORK
-
725310-38B10 CAM, GEAR SHIFTING (INCL. 8)CAM, GEAR SHIFTING (INCL. 8)
-
804221-04089 PINPIN
-
925322-31310 GEAR, CAM DRIVENGEAR, CAM DRIVEN
-
1025323-34201 PAWL, NO.1PAWL, NO.1
-
1125324-34201 PAWL, NO.2PAWL, NO.2
-
1209261-05003 PINPIN
-
1309440-04003 SPRINGSPRING
-
1425331-38B00 LIFTER, PAWLLIFTER, PAWL
-
1509125-06110 SCREW (6X12)SCREW (6X12)
-
1625341-38B00 GUIDE, CAMGUIDE, CAM
-
1709126-06011 SCREW (6X12)SCREW (6X12)
-
1809126-06019 SCREW (6X30)SCREW (6X30)
-
1909180-06293 SPACER (6.5X10X14)SPACER (6.5X10X14)
-
2009160-25059 WASHER (25X32X3)WASHER (25X32X3)
-
2125332-38A10 BOSSBOSS
-
2208316-1006A NUTNUT
-
2309262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
2424741-21A00 RETAINER, BEARINGRETAINER, BEARING
-
2525350-38B00 STOPPER, CAMSTOPPER, CAM
-
2609448-17024 SPRINGSPRING
-
2725356-12C00 SUPPORTSUPPORT
-
2808211-06141 WASHERWASHER
-
2909160-06121 WASHER (6.5X18X2)WASHER (6.5X18X2)
-
3025380-38B00 PLATE, STOPPERPLATE, STOPPER
-
3109106-06083 BOLT (6X50)BOLT (6X50)
-
3225312-38B01 HOLDER, NEUTRAL SWITCHHOLDER, NEUTRAL SWITCH
-
3325510-38B00 SHAFT, GEAR SHIFTINGSHAFT, GEAR SHIFTING
-
3409160-12091 WASHER (12.5X28X1.2)WASHER (12.5X28X1.2)
-
3509180-12068 SPACER (12X20X15.3)SPACER (12X20X15.3)
-
3609444-26021 SPRINGSPRING
-
3725671-38B00 STOPPER, ARMSTOPPER, ARM
-
3809285-12002 OIL SEALOIL SEAL
-
3925600-38B01 LEVER ASSY, GEAR SHIFTING (INCL. 40-41)LEVER ASSY, GEAR SHIFTING (INCL. 40-41)
-
4025652-38B00 RUBBERRUBBER
-
4125526-47000 COVER, DUSTCOVER, DUST
-
4209160-14054 WASHER (14.5X22X1)WASHER (14.5X22X1)
-
4308331-3114A CIRCLIPCIRCLIP
-
4425520-38B00 ARM, GEAR SHIFT LINK (INCL. 45)ARM, GEAR SHIFT LINK (INCL. 45)
-
4525526-47000 COVER, DUSTCOVER, DUST
-
4625525-38B00 RODROD
-
4709140-06011 NUTNUT
-
4808310-00067 NUTNUT
-
4901500-06207 BOLTBOLT
-
5009181-12167 WASHER (12X20X1.0)WASHER (12X20X1.0)
-
5108331-3112A CIRCLIPCIRCLIP
-
5237720-38BA0 BASE ASSY, NEUT SWBASE ASSY, NEUT SW
-
5309280-35006 O RING (D:2.4,ID:35.5)O RING (D:2.4,ID:35.5)
-
5408313-2005B NUTNUT
-
5509108-05010 STUD BOLTSTUD BOLT
-
5609209-04021 CONTACT, SWITCHCONTACT, SWITCH
-
5709440-02003 SPRINGSPRING
