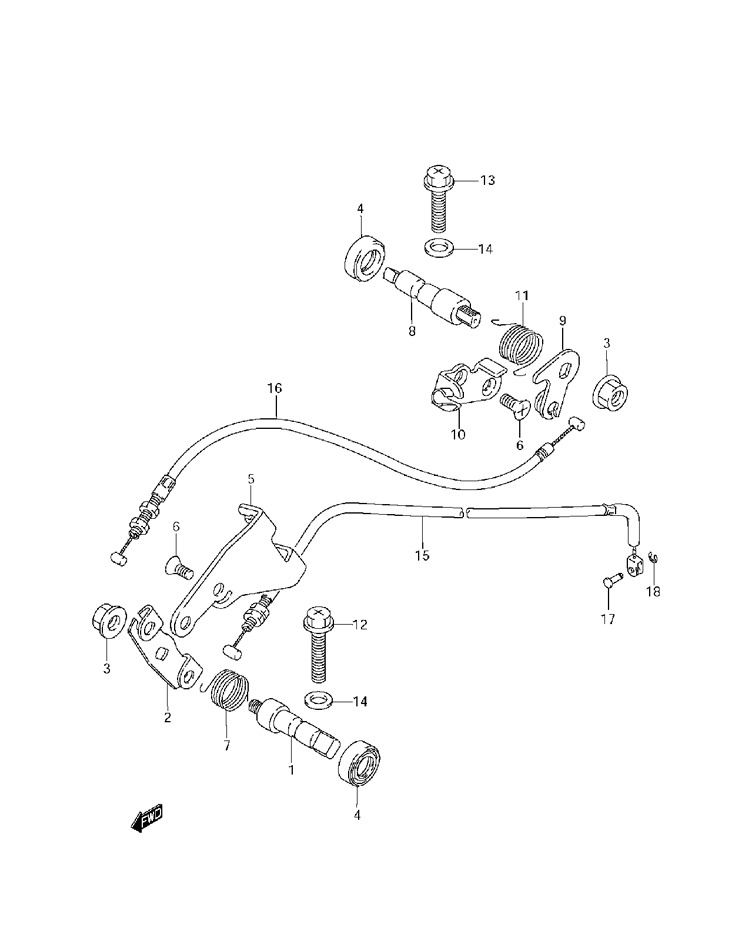

DECOMPRESSION SHAFT для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
112939-38B00 SHAFT, DECOMP FRONTSHAFT, DECOMP FRONT
-
212942-38B03 LEVER, DECOMP FRONTLEVER, DECOMP FRONT
-
308316-1008B NUTNUT
-
409282-10012 OIL SEAL (10X20X6)OIL SEAL (10X20X6)
-
512944-38B02 HOLDER, DECOMP CABLE FRONTHOLDER, DECOMP CABLE FRONT
-
602122-0510B SCREW (GREEN)SCREW (GREEN)
-
709448-17029 SPRING, FRONTSPRING, FRONT
-
812941-38B00 SHAFT, DECOMP REARSHAFT, DECOMP REAR
-
912952-38B01 LEVER, DECOMP REARLEVER, DECOMP REAR
-
1012950-38B00 HOLDER, DECOMP CABLE REARHOLDER, DECOMP CABLE REAR
-
1109448-17023 SPRING, REARSPRING, REAR
-
1202162-0630B BOLT (GREEN)BOLT (GREEN)
-
1302162-0625B BOLT (GREEN)BOLT (GREEN)
-
1409168-06023 GASKETGASKET
-
1558900-38B20 CABLE, DECOMP, FRCABLE, DECOMP, FR
-
1658910-38B20 CABLE, DECOMP, RRCABLE, DECOMP, RR
-
1709209-04020 PINPIN
-
1808332-1103A E RINGE RING
