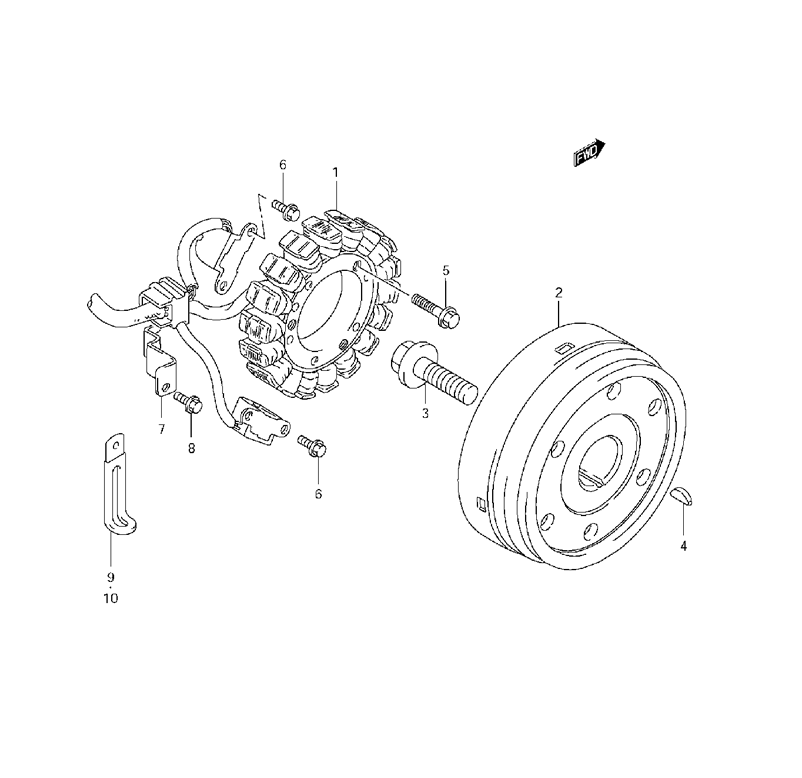

MAGNETO для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
132101-38B02 STATOR ASSYSTATOR ASSY
-
232102-38B10 ROTORROTOR
-
309103-14001 BOLT, ROTORBOLT, ROTOR
-
409420-05007 KEYKEY
-
501547-0630B BOLT, STATORBOLT, STATOR
-
601547-0510B BOLTBOLT
-
732371-45C00 CLAMP, LEAD WIRECLAMP, LEAD WIRE
-
801547-0510B BOLTBOLT
-
909404-08419 CLAMP (L:80)CLAMP (L:80)
-
1009404-06429 CLAMP (L:60)CLAMP (L:60)
