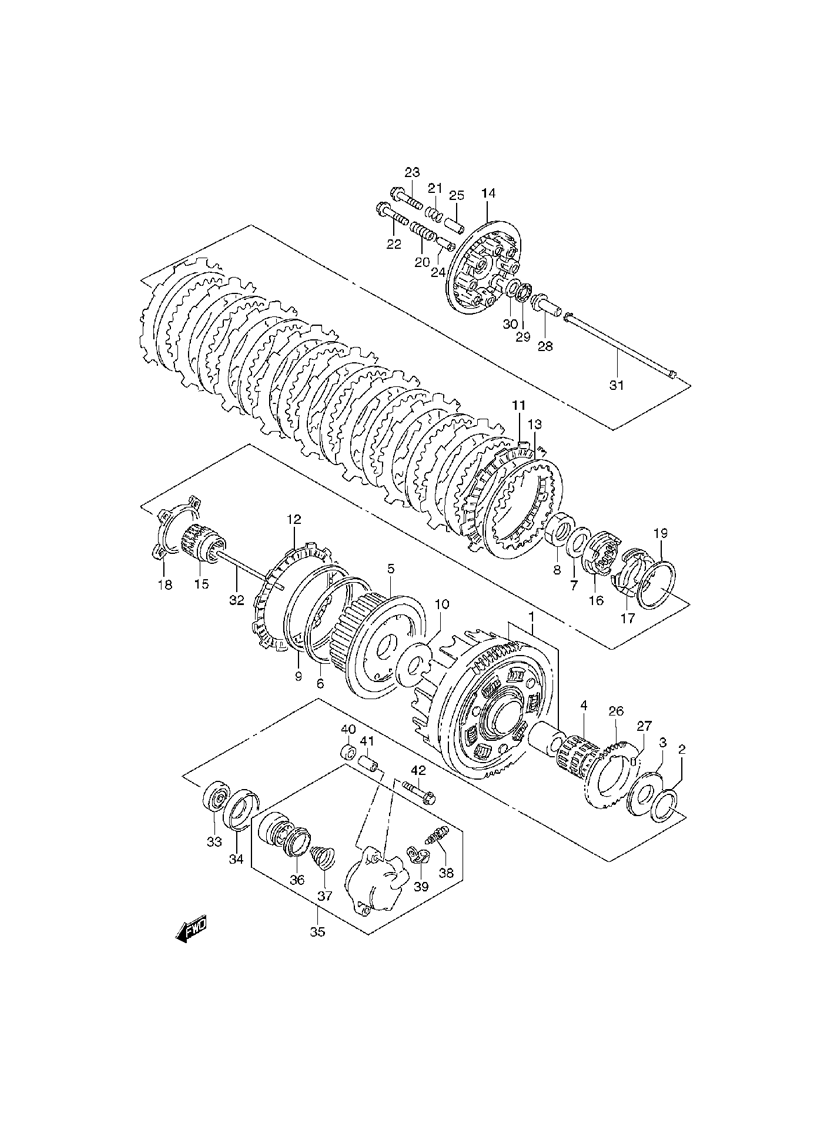

CLUTCH для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
121200-38823 GEAR, PRIMARY DRIVEN (NT:79)GEAR, PRIMARY DRIVEN (NT:79)
-
209160-25066 WASHER, INNER (25X38X2.5)WASHER, INNER (25X38X2.5)
-
309160-25037 WASHER (25X54X2.5)WASHER (25X54X2.5)
-
409263-35017 BEARING (35X40X35.8)BEARING (35X40X35.8)
-
521410-38B00 HUB, SLEEVEHUB, SLEEVE
-
621471-37400 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
709164-22008 WASHER (22.4X45X2.50)WASHER (22.4X45X2.50)
-
809140-22011 NUTNUT
-
909164-00004 WASHER (110.5X119X0.9)WASHER (110.5X119X0.9)
-
1009160-25065 WASHER (25X60X2.50)WASHER (25X60X2.50)
-
1121441-12D01 PLATE, DRIVE NO.1PLATE, DRIVE NO.1
-
1221442-37401 PLATE, CLUTCH DRIVE NO.2PLATE, CLUTCH DRIVE NO.2
-
1321451-05A00 PLATE, DRIVENPLATE, DRIVEN
-
1421462-38B00 DISC, PRESSUREDISC, PRESSURE
-
1521621-38B00 SPACERSPACER
-
1626111-38B03 CAM, CLUTCH NO.1CAM, CLUTCH NO.1
-
1726112-38B02 CAM, CLUTCH NO.2CAM, CLUTCH NO.2
-
1821613-38B01 SLIDER, CLUTCH SPRINGSLIDER, CLUTCH SPRING
-
1909160-54002 WASHER, THRUST (54X62X1)WASHER, THRUST (54X62X1)
-
2009440-14021 SPRINGSPRING
-
2109440-14022 SPRING, NO.2SPRING, NO.2
-
2209116-06135 BOLT (6X40)BOLT (6X40)
-
2309116-06136 BOLT, NO.2 (6X35)BOLT, NO.2 (6X35)
-
2409180-06177 SPACER (6.1X9X25.1)SPACER (6.1X9X25.1)
-
2509180-06276 SPACER (6.1X9X24.1)SPACER (6.1X9X24.1)
-
2616321-38B00 GEAR, OIL PUMP DRIVE (NT:40)GEAR, OIL PUMP DRIVE (NT:40)
-
2709261-06002 PINPIN
-
2823121-38B00 PIECE, PUSHPIECE, PUSH
-
2909263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
3009160-15045 WASHER (15X28X1)WASHER (15X28X1)
-
3123110-38B00 ROD, PUSH RIGHT HANDROD, PUSH RIGHT HAND
-
3223111-24A01 ROD, PUSH LEFT HANDROD, PUSH LEFT HAND
-
3309283-06010 OIL SEALOIL SEAL
-
3423117-38A00 RETAINERRETAINER
-
3523160-38B00 CYLINDER, CLUTCH RELEASE (INCL. 36-39)CYLINDER, CLUTCH RELEASE (INCL. 36-39)
-
3623163-06B00 CUPCUP
-
3723164-05A00 SPRINGSPRING
-
3859121-01A00 BLEEDERBLEEDER
-
3959122-01A00 CAPCAP
-
4009180-09019 SPACER (9X16X11)SPACER (9X16X11)
-
4109206-09011 PINPIN
-
4201550-0640A BOLTBOLT
