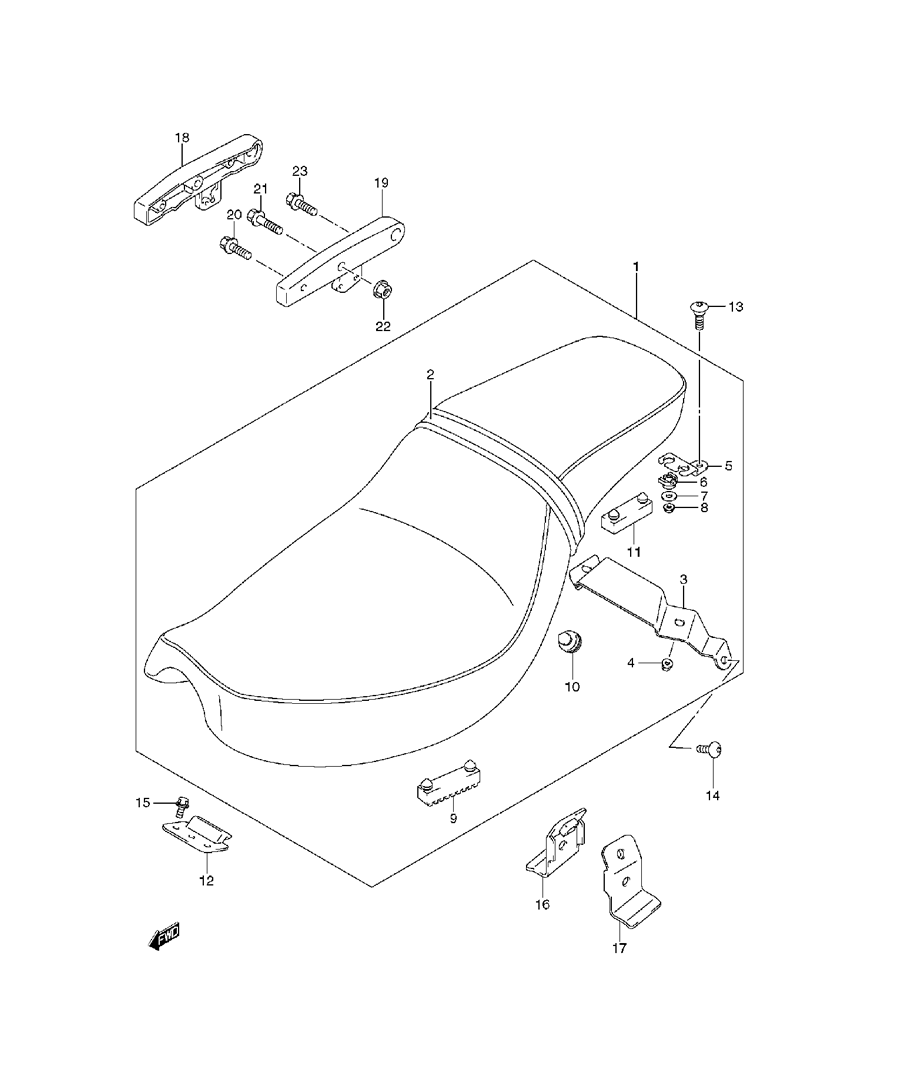

SEAT для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
145100-38BA0-HW9 SEAT ASSY (INCL. 2-11)SEAT ASSY (INCL. 2-11)
-
245180-38BA0 BAND ASSYBAND ASSY
-
345115-38BA0 BRACKET, BANDBRACKET, BAND
-
408319-3106A NUTNUT
-
545118-38BA0 BRACKET, REARBRACKET, REAR
-
645215-06B00 CUSHIONCUSHION
-
709160-06088 WASHERWASHER
-
808316-1006A NUTNUT
-
945148-31E00 CUSHIONCUSHION
-
1045148-16700 CUSHIONCUSHION
-
1145149-43500 CUSHIONCUSHION
-
1245210-38B00 BRACKET, FRONTBRACKET, FRONT
-
1309139-06121 BOLT, REARBOLT, REAR
-
1409106-06117 SCREW, SEAT CENTERSCREW, SEAT CENTER
-
1501580-06167 BOLT, BRACKETBOLT, BRACKET
-
1645116-38BA0 BRACKET, SEAT CENTER, RBRACKET, SEAT CENTER, R
-
1745117-38BA0 BRACKET, SEAT CENTER, LBRACKET, SEAT CENTER, L
-
1846212-38B22 HANDLE, PILLION RIDER, RHANDLE, PILLION RIDER, R
-
1946213-38B22 HANDLE, PILLION RIDER, LHANDLE, PILLION RIDER, L
-
2001580-0640B BOLT, FRONTBOLT, FRONT
-
2101580-0845B BOLT, CENTERBOLT, CENTER
-
2208316-1008B NUTNUT
-
2301580-0620B BOLT, REARBOLT, REAR
