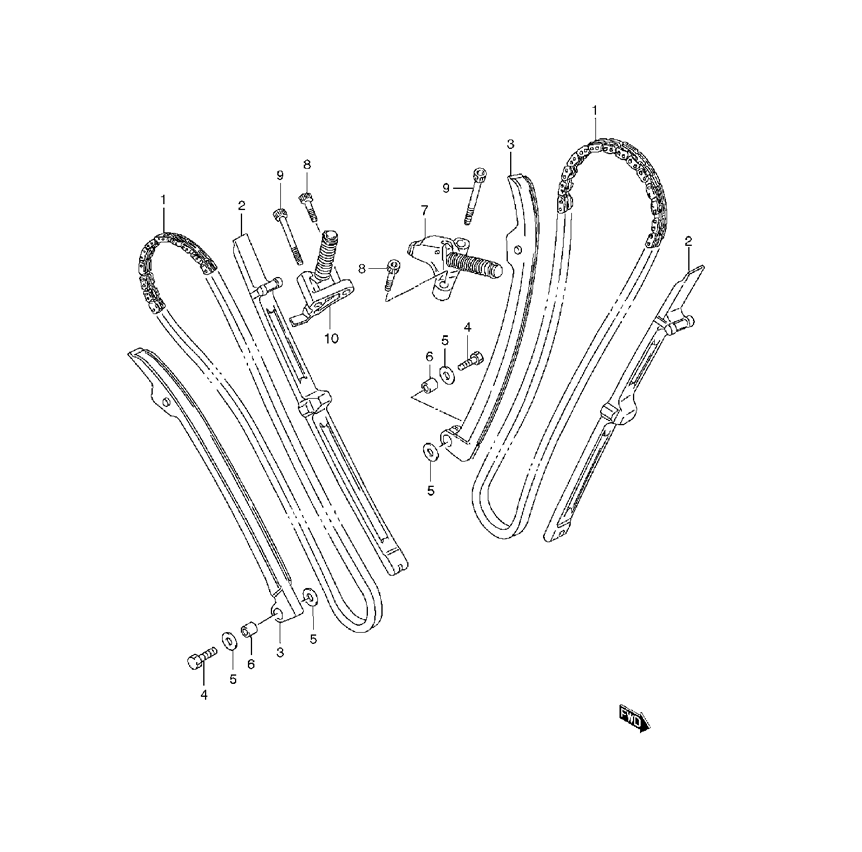

CAM CHAIN ASSY. W/ TENSIONER для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
112760-38B00 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-38B00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-38B00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
409100-06129 BOLT (6X26)BOLT (6X26)
-
508211-06182 WASHERWASHER
-
609180-06184 SPACERSPACER
-
712831-38A01 ADJUSTER ASSY, TENSIONER FRONTADJUSTER ASSY, TENSIONER FRONT
-
807130-0620B BOLTBOLT
-
907130-0645B BOLTBOLT
-
1012832-38A01 ADJUSTER ASSY, TENSIONER REARADJUSTER ASSY, TENSIONER REAR
