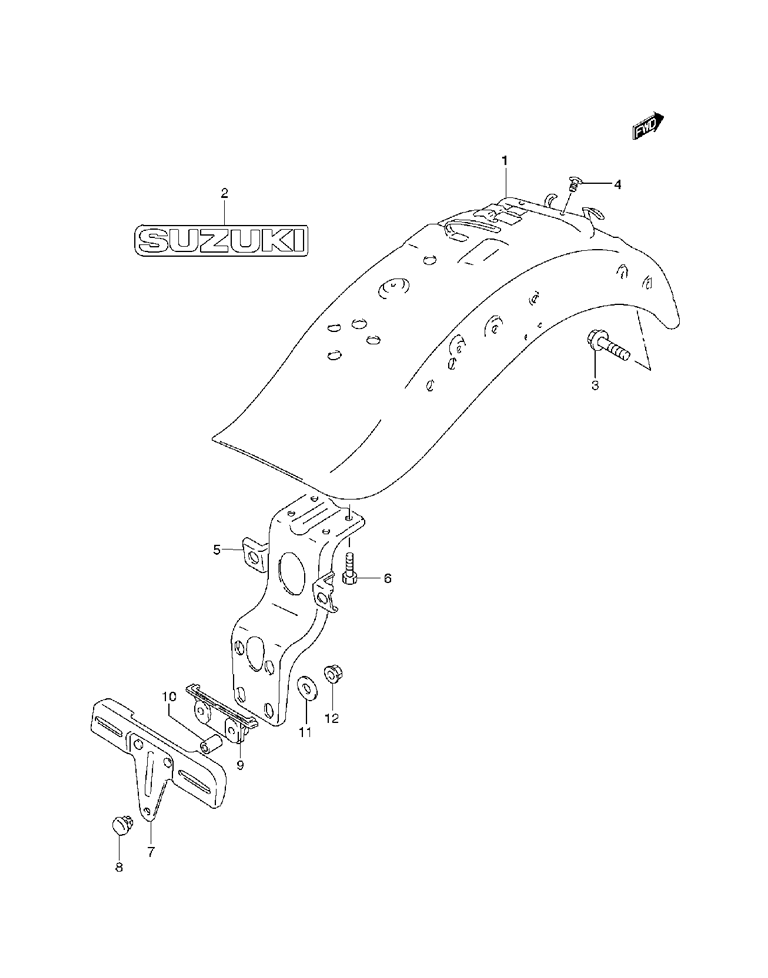

FENDER - REAR для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
163100-39B00-YAY FENDER, REAR (BLACK) (YAY) (INCL. 2)FENDER, REAR (BLACK) (YAY) (INCL. 2)
-
163100-39B00-YHG FENDER, REAR (GRAY) (YHG) (INCL. 2)FENDER, REAR (GRAY) (YHG) (INCL. 2)
-
268271-34A00-YES EMBLEM (SILVER)EMBLEM (SILVER)
-
301550-0820B BOLTBOLT
-
409250-05011-5PK CAP (BLACK)CAP (BLACK)
-
563460-38B00 BRACKET, LAMPBRACKET, LAMP
-
601570-0612B BOLTBOLT
-
763463-38B10 PLATE, LICENSEPLATE, LICENSE
-
809321-08005 CUSHIONCUSHION
-
963464-38B00 CUSHION, PLATECUSHION, PLATE
-
1009180-05050 SPACERSPACER
-
1109160-05051 WASHERWASHER
-
1208316-2005B NUTNUT
