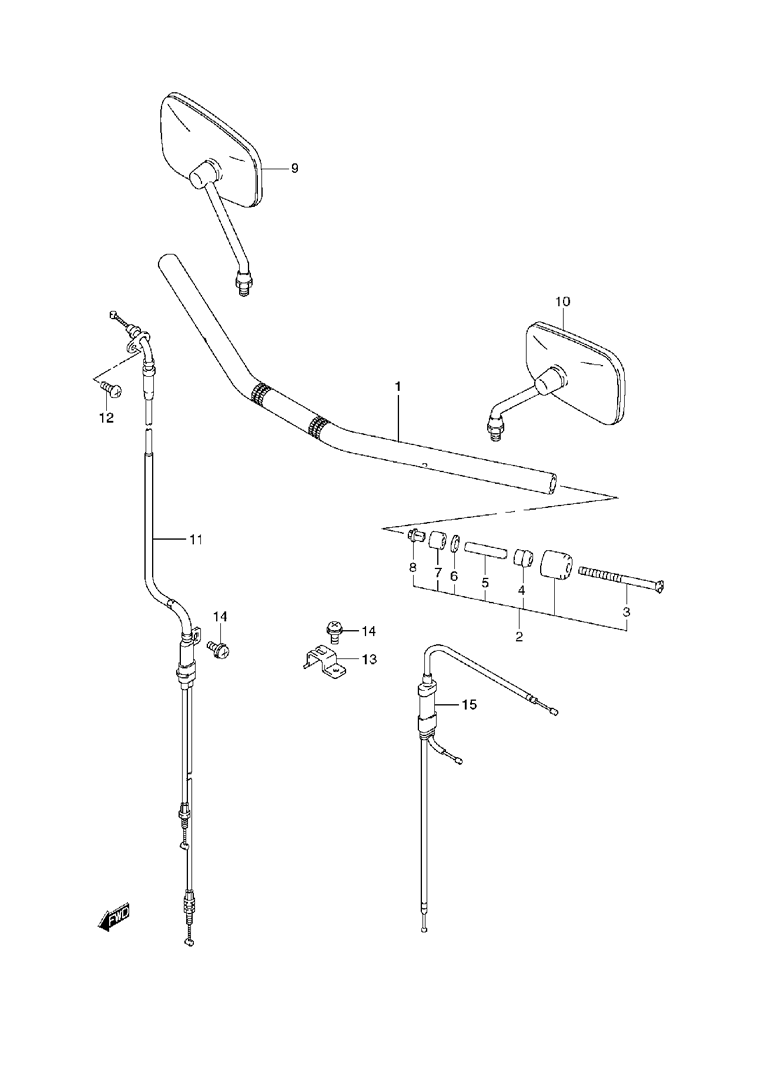

HANDLEBAR для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
156111-39B00 HANDLEBARHANDLEBAR
-
256200-10891 BALANCER SET, HANDLEBAR (INCL. 3-8)BALANCER SET, HANDLEBAR (INCL. 3-8)
-
309127-06017 SCREW (6X125)SCREW (6X125)
-
456272-26D01 EXPANDER, HANDLE BALANCEREXPANDER, HANDLE BALANCER
-
556276-17D00 SPACER, EXPANDERSPACER, EXPANDER
-
609160-06131 WASHERWASHER
-
756272-10G10 EXPANDER, INNEREXPANDER, INNER
-
856273-10G10 NUTNUT
-
956500-45C61 MIRROR ASSY, REAR VIEW RIGHT HANDMIRROR ASSY, REAR VIEW RIGHT HAND
-
1056600-45C61 MIRROR ASSY, REAR VIEW LEFT HANDMIRROR ASSY, REAR VIEW LEFT HAND
-
1158300-39B00 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
1209139-05033 SCREWSCREW
-
1358621-38B00 CLAMPCLAMP
-
1402112-7512B SCREWSCREW
-
1558400-39B00 CABLE, STARTERCABLE, STARTER
