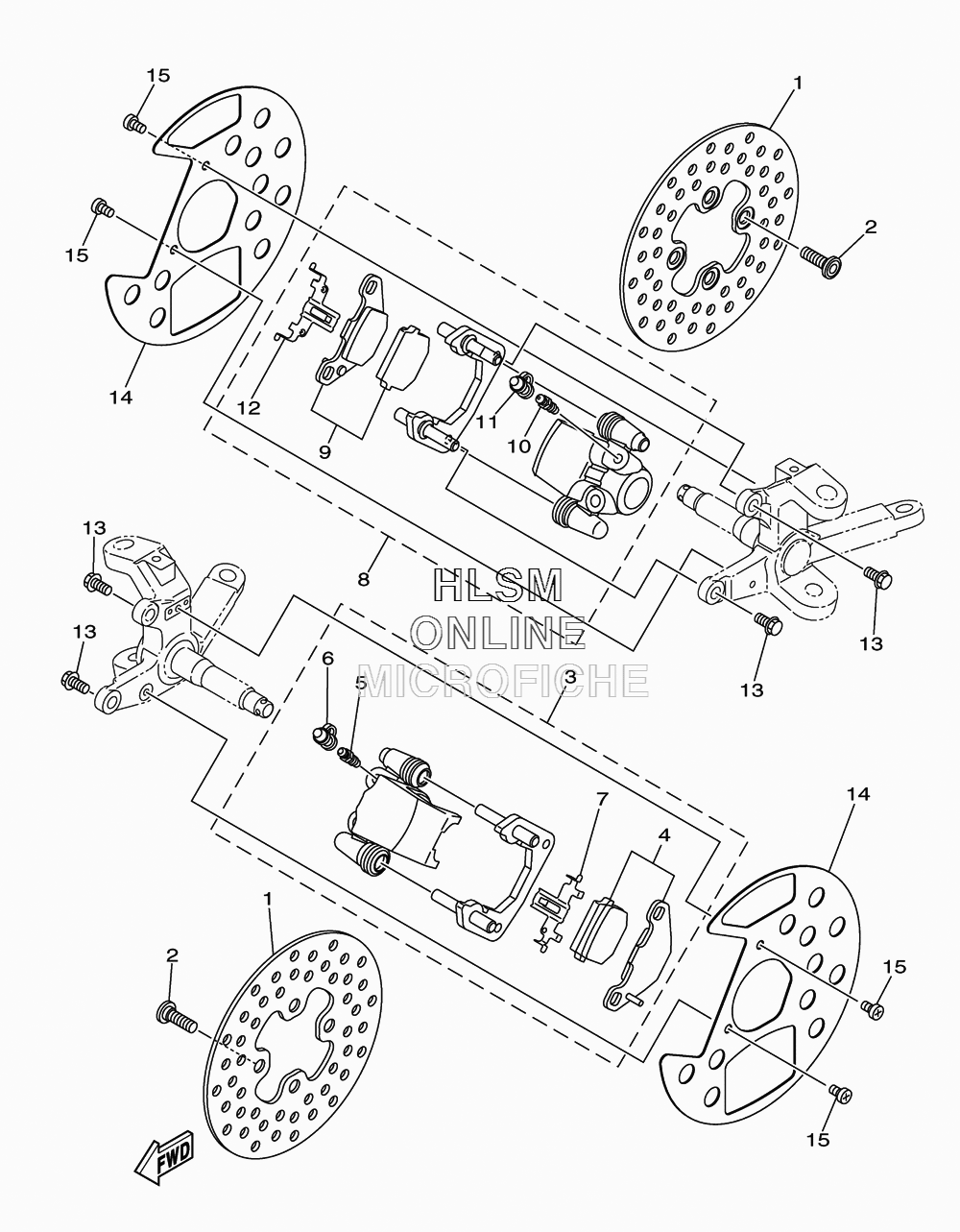

BRAKE - FRONT CALIPER для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-F582T-00-00 DISC, BRAKE (LEFT/RIGHT)DISC, BRAKE (LEFT/RIGHT)
-
21SC-F4834-00-00 BOLTBOLT
-
31SC-F580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
41SC-F5805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
51SC-F319V-00-00 ...SCREW, BLEED...SCREW, BLEED
-
643D-F5825-00-00 ...CAP...CAP
-
743D-F5919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
81SC-F580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
91SC-F5805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
1043D-F5824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
1143D-F5825-00-00 ...CAP...CAP
-
1243D-F5919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
1343D-F2125-10-00 BOLTBOLT
-
141SC-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
1543D-F8355-00-00 SCREWSCREW
