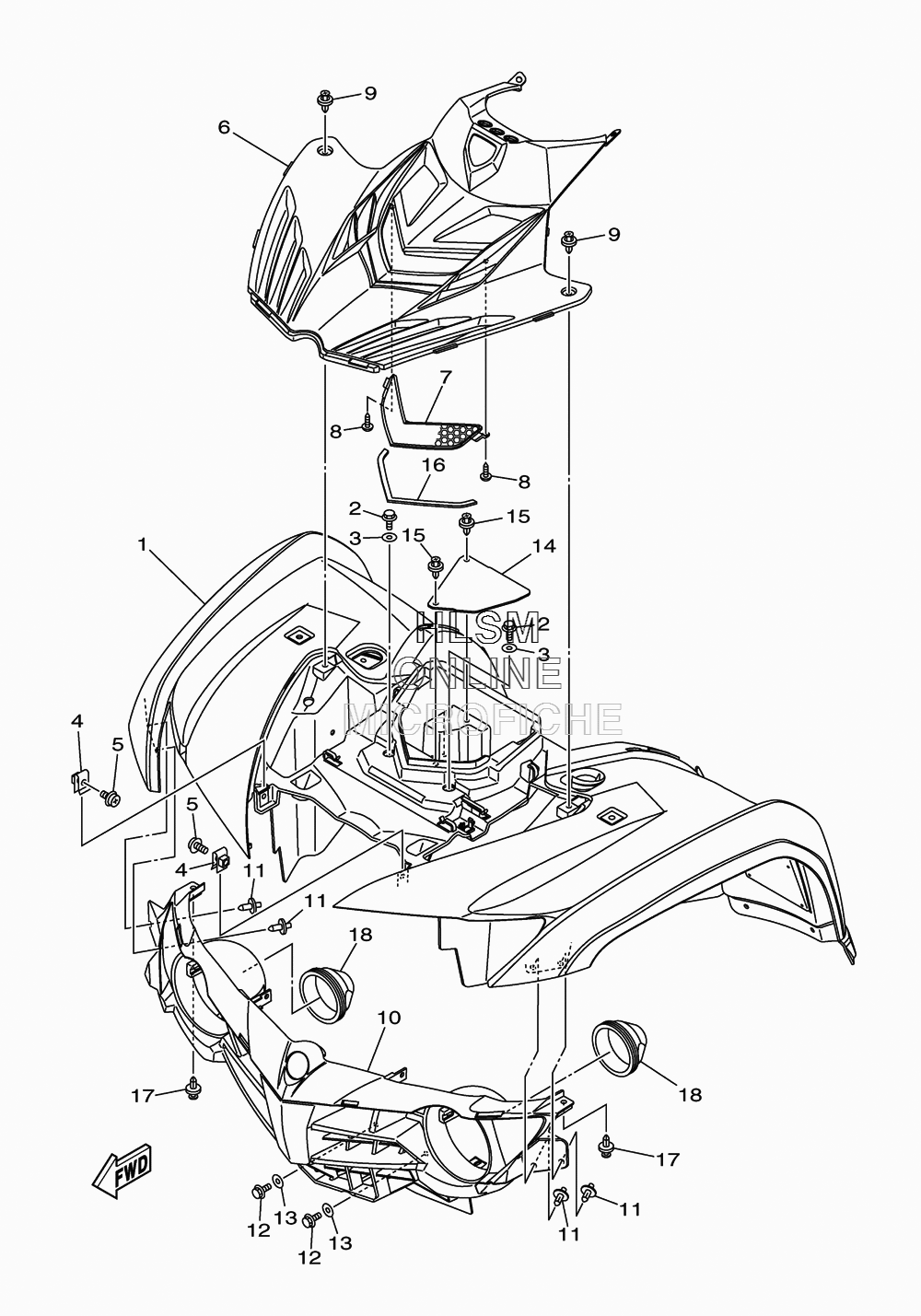

FENDER - FRONT для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-F1500-00-00 FRONT FENDER ASSY (PDG - DEEP GREEN)FRONT FENDER ASSY (PDG - DEEP GREEN)
-
11SC-F1500-10-00 FRONT FENDER ASSY (DPBSN - PURPLISH BLUE)FRONT FENDER ASSY (DPBSN - PURPLISH BLUE)
-
11SC-F1500-C0-00 FRONT FENDER ASSY (RTR - ROMANTIQUE ROUGE)FRONT FENDER ASSY (RTR - ROMANTIQUE ROUGE)
-
297004-06016-00 BOLTBOLT
-
392904-06600-00 WASHERWASHER
-
443D-F3834-00-00 NUT 2NUT 2
-
51SC-F11C7-00-00 SCREW 3SCREW 3
-
61SC-F3391-00-00 PANEL, FRONTPANEL, FRONT
-
71SC-F1523-00-00 PLATE 1PLATE 1
-
843D-F4453-00-00 SCREWSCREW
-
91SC-F1728-00-00 RIVETRIVET
-
101SC-F8309-00-00 GRILLE, FRONTGRILLE, FRONT
-
111SC-F3468-00-00 RIVETRIVET
-
1297004-06016-00 BOLTBOLT
-
1392904-06600-00 WASHERWASHER
-
141SC-F1524-00-00 PLATE 2PLATE 2
-
151SC-F1728-00-00 RIVETRIVET
-
161SC-F1746-00-00 DAMPERDAMPER
-
1743D-F3119-00-00 PLUG, DRAINPLUG, DRAIN
-
181SC-F8349-00-00 CAPCAP
