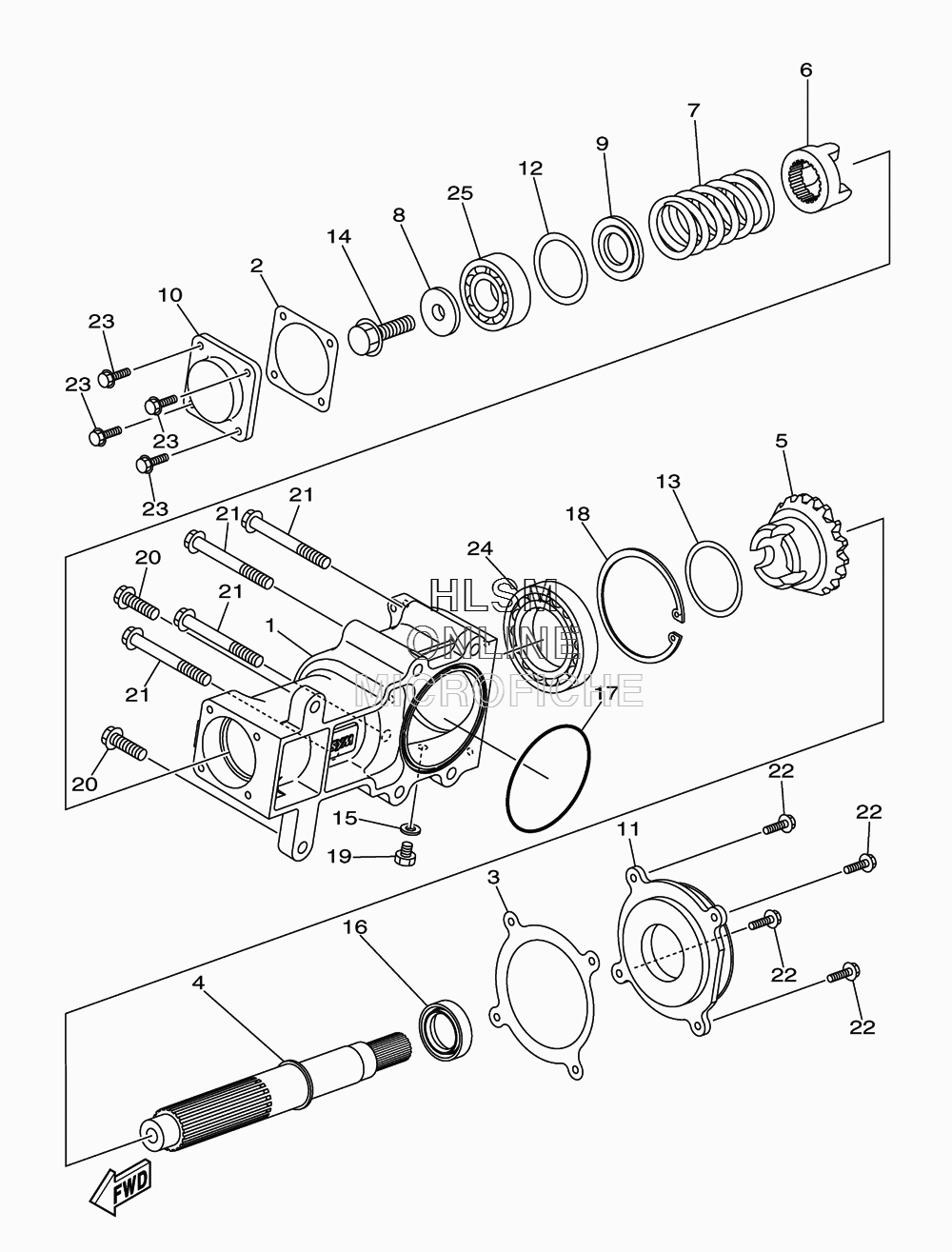

MIDDLE DRIVE GEAR для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-E7541-00-00 CASE, TRANSFER 1CASE, TRANSFER 1
-
21SC-E7472-00-00 GASKETGASKET
-
31SC-E7519-00-00 GASKET, HOUSING CAPGASKET, HOUSING CAP
-
41SC-E761A-00-00 SHAFT, 1SHAFT, 1
-
51SC-E7552-00-00 PINION, DRIVENPINION, DRIVEN
-
61SC-E7527-00-00 CAM, DRIVENCAM, DRIVEN
-
71SC-E7493-00-00 SPRING, TRANSMISSION SHIFTSPRING, TRANSMISSION SHIFT
-
81SC-E7648-00-00 WASHERWASHER
-
91SC-E7658-00-00 WASHER, BELLEVILLEWASHER, BELLEVILLE
-
101SC-E7542-00-00 CASE, TRANSFER 2CASE, TRANSFER 2
-
111SC-E7551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
121SC-E7537-00-00 SHIM, THRUSTSHIM, THRUST
-
131SC-E7687-00-00 SHIMSHIM
-
141SC-E7617-00-00 BOLT CAPBOLT CAP
-
151SC-E7818-00-00 GASKETGASKET
-
161SC-E76G3-00-00 OIL SEAL 2OIL SEAL 2
-
171SC-E76F5-00-00 O-RINGO-RING
-
181SC-E7424-00-00 CIRCLIP 1CIRCLIP 1
-
191SC-E4777-00-00 BOLTBOLT
-
201SC-E3574-00-00 BOLT 2BOLT 2
-
211SC-E6777-00-00 BOLTBOLT
-
221SC-E4496-00-00 BOLTBOLT
-
231SC-E118E-00-00 BOLT, COVER MOUNTINGBOLT, COVER MOUNTING
-
241SC-E7412-00-00 JOURNALJOURNAL
-
251SC-E7413-00-00 JOURNAL 2JOURNAL 2
