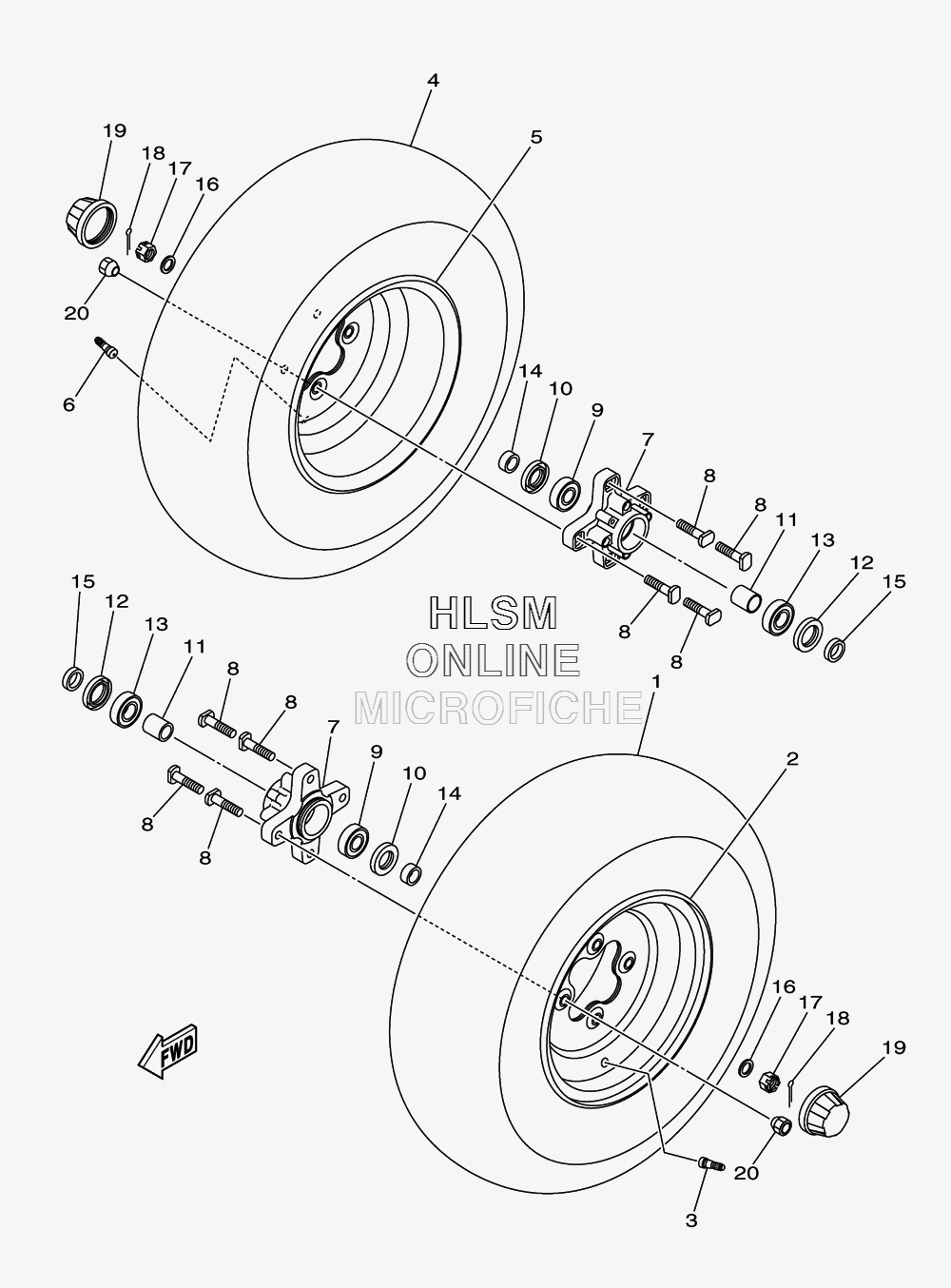

WHEEL - FRONT W/ AXLE ASSY для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-F510S-00-00 TIRE (AT22 X 7-10 M919) MAXXISTIRE (AT22 X 7-10 M919) MAXXIS
-
21SC-F5180-00-00 WHEEL COMP.WHEEL COMP.
-
343D-F5170-00-00 AIR VALVE ASSYAIR VALVE ASSY
-
41SC-F510S-00-00 TIRE (AT22 X 7-10 M919) MAXXISTIRE (AT22 X 7-10 M919) MAXXIS
-
51SC-F5180-00-00 WHEEL COMP.WHEEL COMP.
-
643D-F5170-00-00 AIR VALVE ASSYAIR VALVE ASSY
-
71SC-F5111-00-00 HUB, FRONTHUB, FRONT
-
81SC-F4592-00-00 BOLTBOLT
-
91SC-F51H1-00-00 BEARINGBEARING
-
101SC-F511B-00-00 SEAL, OILSEAL, OIL
-
111SC-F4863-00-00 SPACER, CARRIERSPACER, CARRIER
-
121SC-F51H3-00-00 OIL SEAL 2OIL SEAL 2
-
1343D-E7412-00-00 JOURNALJOURNAL
-
141SC-F4725-00-00 SPACER 1SPACER 1
-
151SC-F4729-00-00 SPACER 2SPACER 2
-
161SC-F5384-00-00 WASHER, WHEELWASHER, WHEEL
-
171SC-F1293-00-00 NUTNUT
-
1891401-25033-00 PIN, COTTERPIN, COTTER
-
191SC-F512A-00-00 CAP, WHEELCAP, WHEEL
-
201SC-F1839-00-00 NUTNUT
