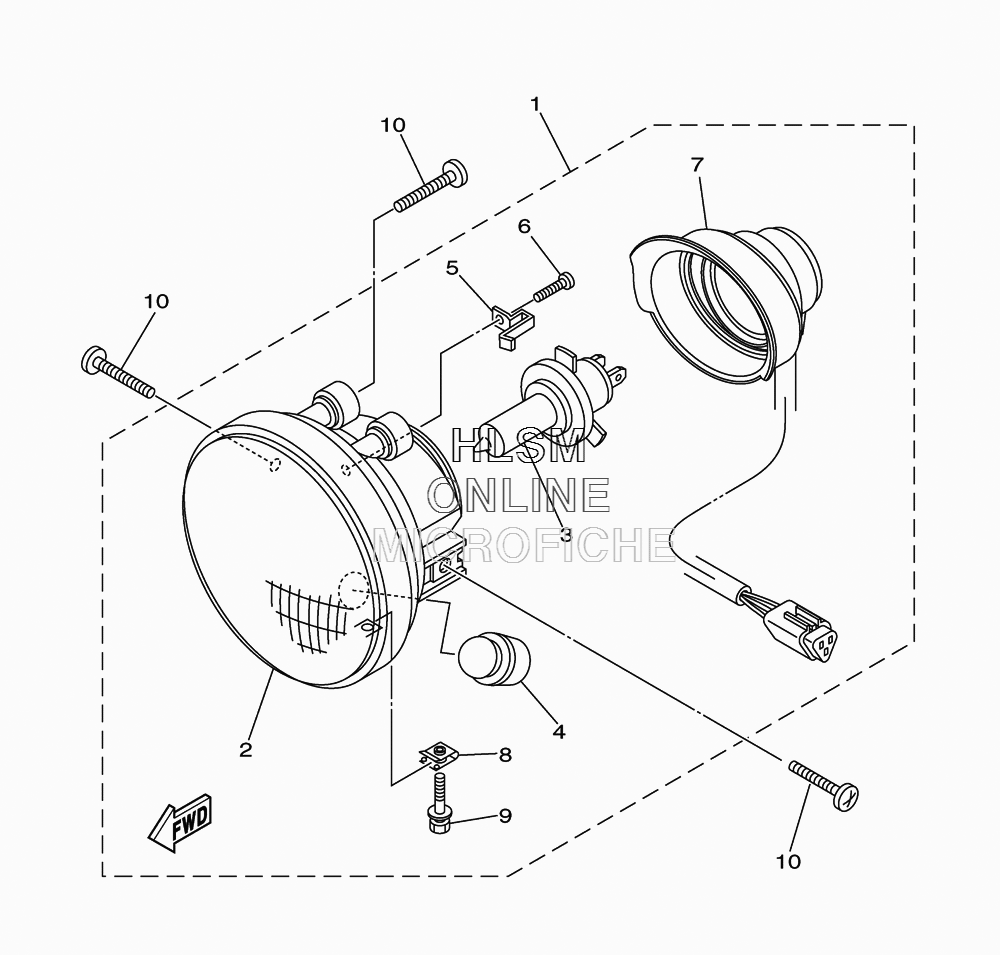

HEADLIGHT для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-H4300-00-00 HEADLIGHT ASSY.HEADLIGHT ASSY.
-
21SC-H4320-00-00 ...LENS ASSY...LENS ASSY
-
31SC-H4314-00-00 ...BULB (12V-35/35W)...BULB (12V-35/35W)
-
41SC-H4762-00-00 ...GROMMET...GROMMET
-
51SC-H413K-00-00 ...PLATE, ADJUSTING...PLATE, ADJUSTING
-
61SC-H4526-00-00 ...SCREW...SCREW
-
71SC-H4340-00-00 ...SOCKET CORD ASSY 1...SOCKET CORD ASSY 1
-
81SC-H413H-00-00 ...PLATE, SPRING...PLATE, SPRING
-
91SC-H433E-00-00 ...SCREW, ADJUSTING...SCREW, ADJUSTING
-
101SC-H4726-00-00 SCREWSCREW
