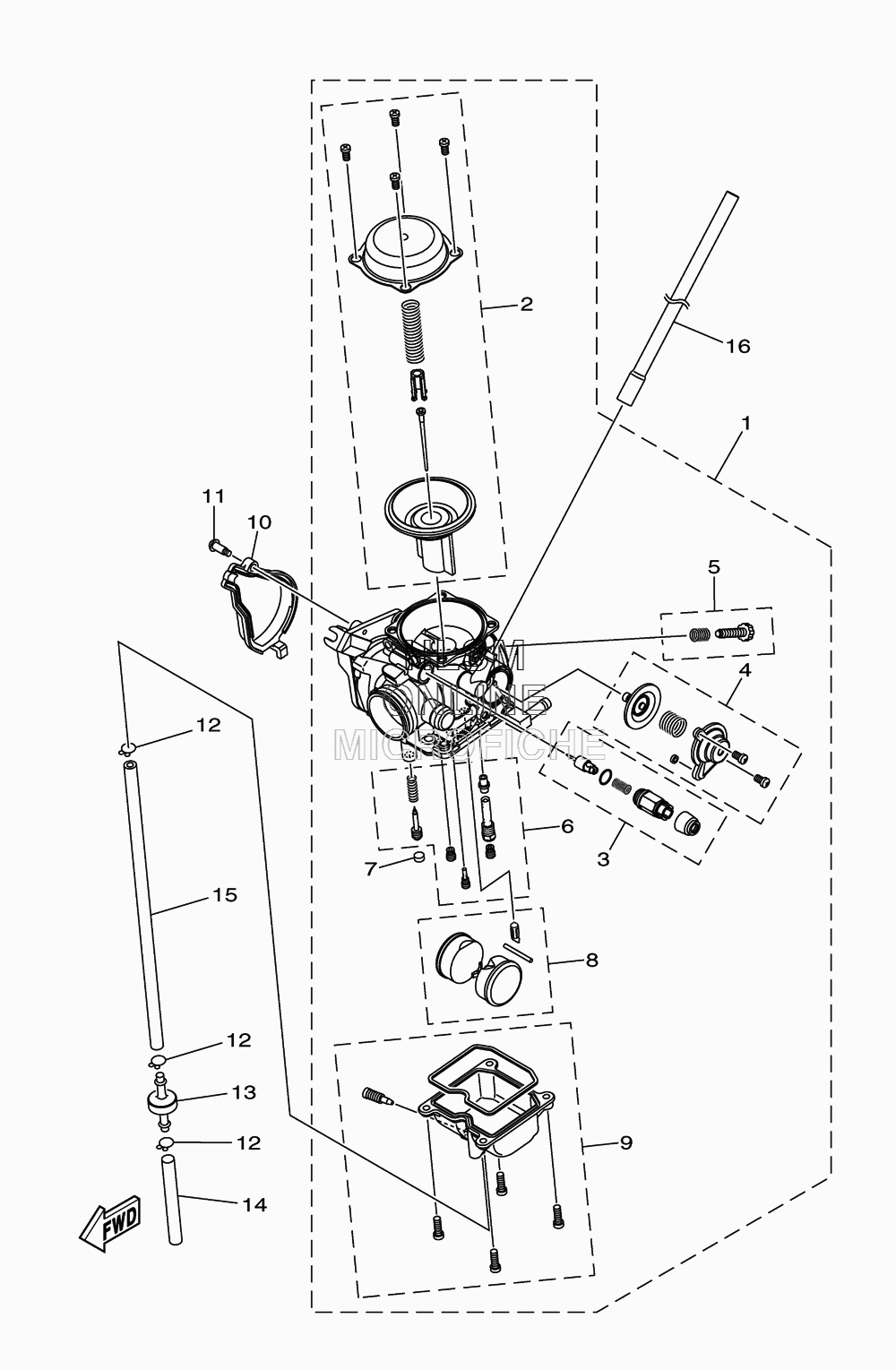

CARBURETOR для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-E4101-00-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
21SC-E4107-00-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
31SC-E410A-00-00 ...STARTER SET...STARTER SET
-
41SC-E490H-00-00 ...DIAPHRAGM SET 5...DIAPHRAGM SET 5
-
51SC-E490K-00-00 ...STOP SCREW SET...STOP SCREW SET
-
61SC-E41B0-00-00 ...JET KIT...JET KIT
-
71SC-E4118-00-00 ...CAP...CAP
-
81SC-E4180-00-00 ...FLOAT CHAMBER ASSY...FLOAT CHAMBER ASSY
-
91SC-E4730-00-00 ...CHAMBER ASSY...CHAMBER ASSY
-
101SC-E4293-00-00 COVER 1COVER 1
-
111SC-E4428-00-00 BOLTBOLT
-
1243D-E439G-00-00 CLIP 1CLIP 1
-
1343D-E3512-00-00 VALVE, ROTARYVALVE, ROTARY
-
141SC-E4996-00-00 PIPEPIPE
-
151SC-E4987-00-00 HOSEHOSE
-
161SC-E4197-00-00 PIPEPIPE
