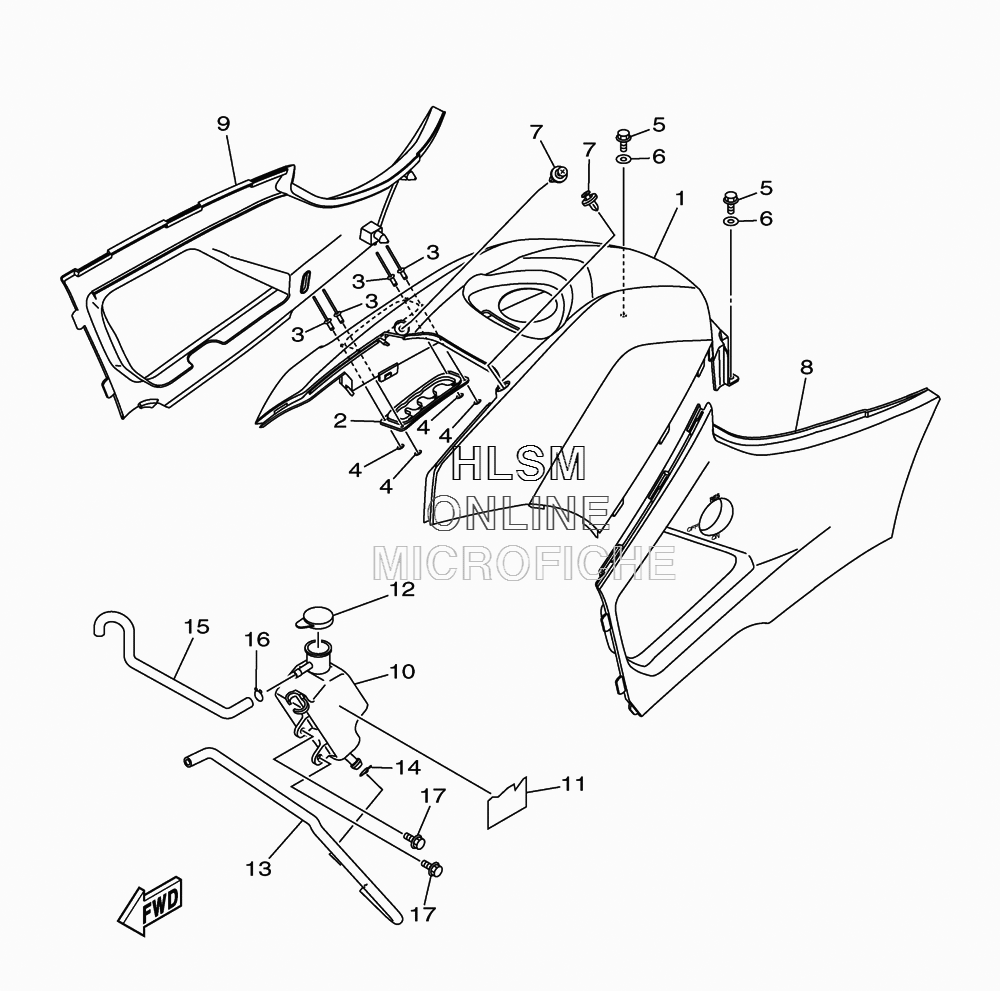

SIDE COVER для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-F171A-00-00 COVER, TOP (PDG - DEEP GREEN)COVER, TOP (PDG - DEEP GREEN)
-
11SC-F171A-10-00 COVER, TOP (DPBSN - PURPLISH BLUE)COVER, TOP (DPBSN - PURPLISH BLUE)
-
11SC-F171A-20-00 COVER, TOP (RTR - ROMANTIQUE ROUGE)COVER, TOP (RTR - ROMANTIQUE ROUGE)
-
21SC-F1665-00-00 GUIDE, MUD GUARDGUIDE, MUD GUARD
-
31SC-F1539-00-00 RIVETRIVET
-
443D-F1615-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
597004-06016-00 BOLTBOLT
-
692904-06600-00 WASHERWASHER
-
71SC-F1728-00-00 RIVETRIVET
-
81SC-F1711-00-00 COVER, SIDE 1 (PDG - DEEP GREENCOVER, SIDE 1 (PDG - DEEP GREEN
-
81SC-F1711-10-00 COVER, SIDE 1 (DPBSN - PURPLISH BLUE)COVER, SIDE 1 (DPBSN - PURPLISH BLUE)
-
81SC-F1711-20-00 COVER, SIDE 1 (RTR - ROMANTIQUE ROUGE)COVER, SIDE 1 (RTR - ROMANTIQUE ROUGE)
-
91SC-F1721-00-00 COVER, SIDE 2 (PDG - DEEP GREENCOVER, SIDE 2 (PDG - DEEP GREEN
-
91SC-F1721-10-00 COVER, SIDE 2 (DPBSN - PURPLISH BLUE)COVER, SIDE 2 (DPBSN - PURPLISH BLUE)
-
91SC-F1721-20-00 COVER, SIDE 2 (RTR - ROMANTIQUE ROUGE)COVER, SIDE 2 (RTR - ROMANTIQUE ROUGE)
-
101SC-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
111SC-F174S-00-00 INSULATOR 5INSULATOR 5
-
121SC-F1875-00-00 CAPCAP
-
131SC-E244G-00-00 HOSE, 4HOSE, 4
-
141SC-E2486-00-00 CLIPCLIP
-
151SC-E244H-00-00 HOSE 5HOSE 5
-
161SC-E2486-00-00 CLIPCLIP
-
171SC-F1738-00-00 BOLTBOLT
