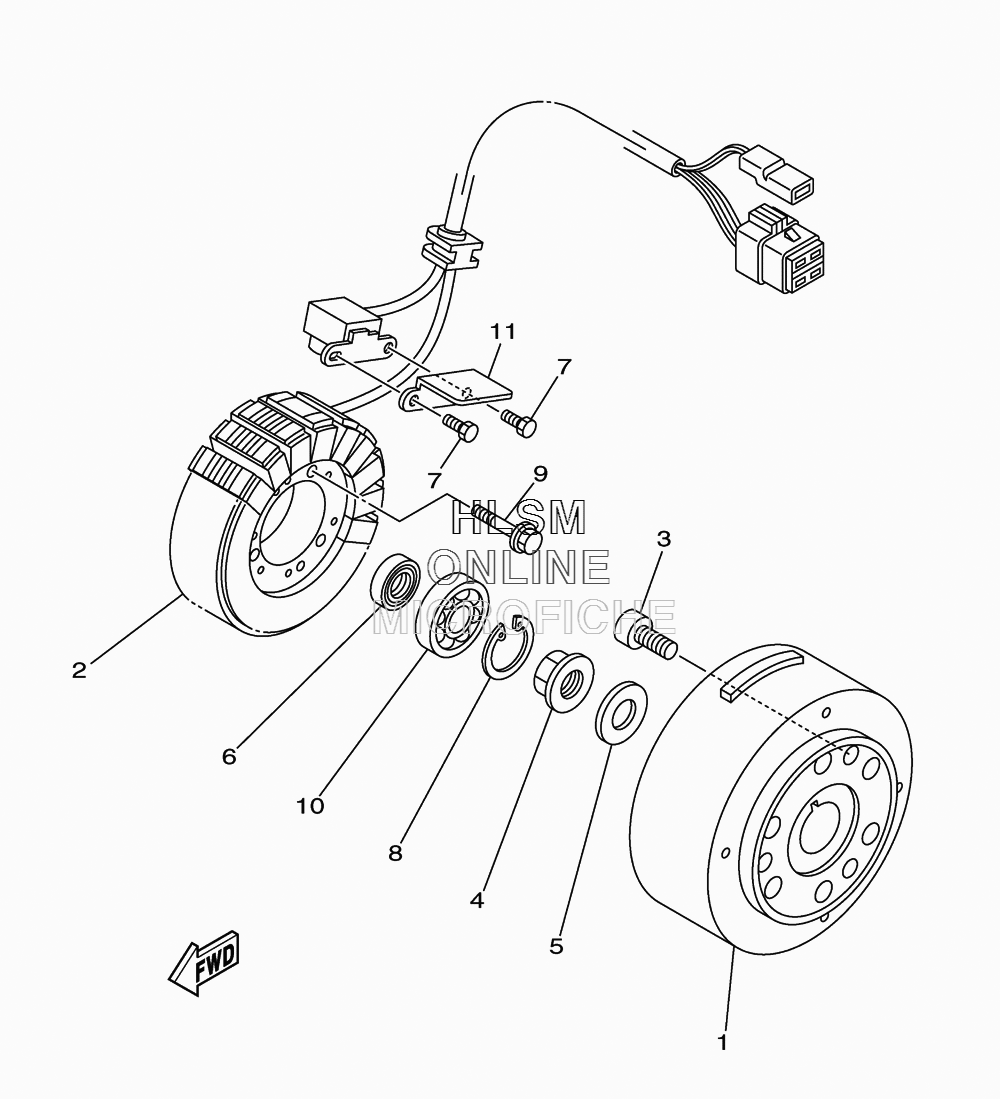

GENERATOR для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-H1450-00-00 ROTOR ASSYROTOR ASSY
-
21SC-H1410-00-00 STATOR ASSYSTATOR ASSY
-
31SC-H1152-00-00 BOLTBOLT
-
41SC-H1353-00-00 NUTNUT
-
51SC-H1162-00-00 WASHER, PLAINWASHER, PLAIN
-
61SC-H1167-00-00 OIL SEALOIL SEAL
-
71SC-H1352-00-00 BOLTBOLT
-
81SC-H132L-00-00 CIRCLIPCIRCLIP
-
91SC-H1252-00-00 BOLTBOLT
-
101SC-H1157-00-00 BEARING 1BEARING 1
-
111SC-H1528-00-00 CLAMP 1CLAMP 1
