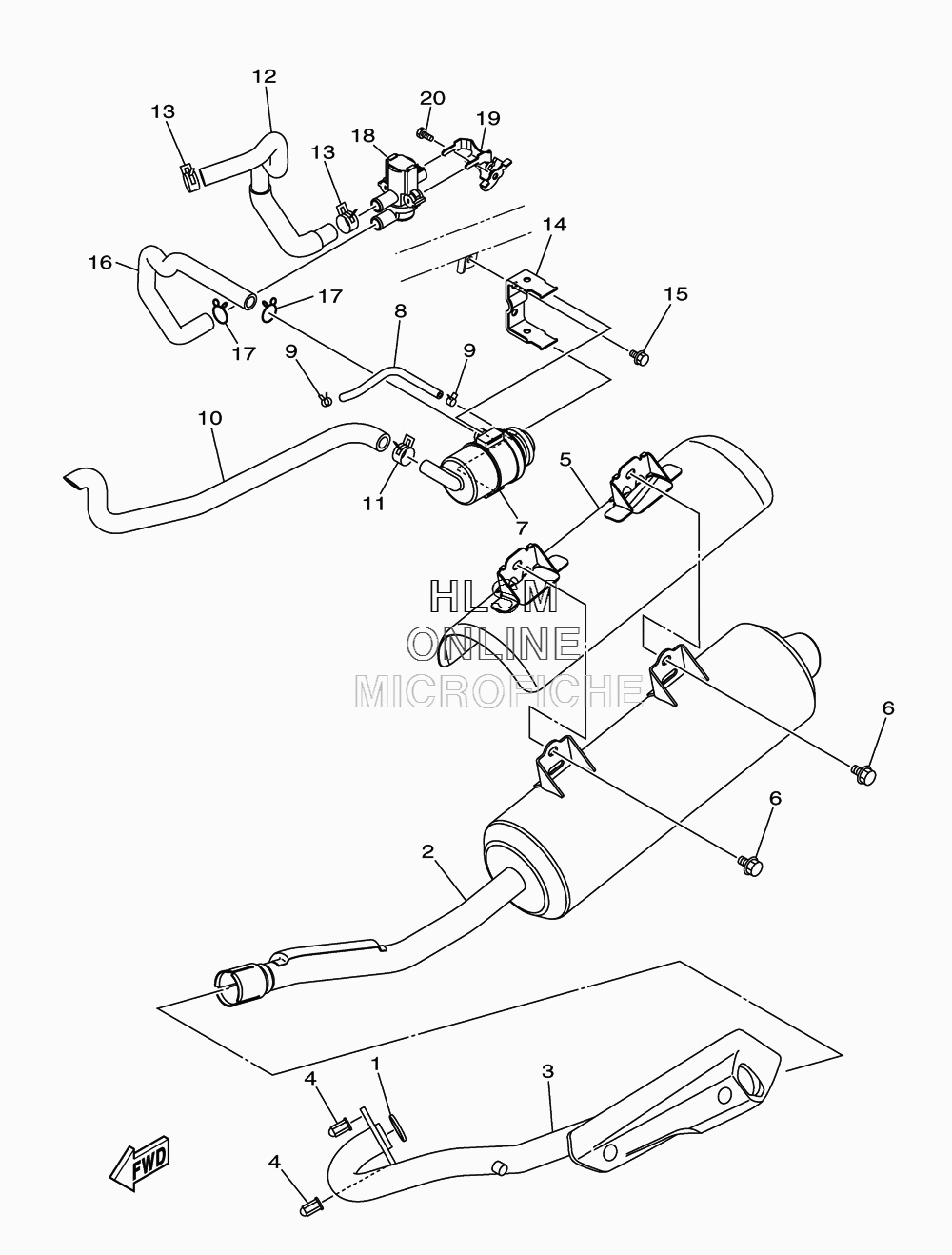

EXHAUST для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-E4613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
21SC-E4711-00-00 MUFFLER 1MUFFLER 1
-
31SC-E4610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
41SC-E4681-00-00 NUTNUT
-
51SC-E4718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
695827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
71SC-E4840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
81SC-E481A-00-00 CONNECTING, TUBECONNECTING, TUBE
-
91SC-E262K-00-00 CLAMP 1CLAMP 1
-
101SC-E4881-00-00 HOSE, BEND 1HOSE, BEND 1
-
111SC-E4937-00-00 CLIPCLIP
-
121SC-E4882-00-00 HOSE, BEND 2HOSE, BEND 2
-
131SC-E4919-00-00 CLIPCLIP
-
141SC-E4867-00-00 BRACKETBRACKET
-
1595827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
161SC-E4883-00-00 HOSE, BEND 3HOSE, BEND 3
-
171SC-E4919-00-00 CLIPCLIP
-
181SC-E4840-10-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
191SC-E4868-00-00 BRACKET 2BRACKET 2
-
201SC-E4162-00-00 BOLT, HOLDINGBOLT, HOLDING
