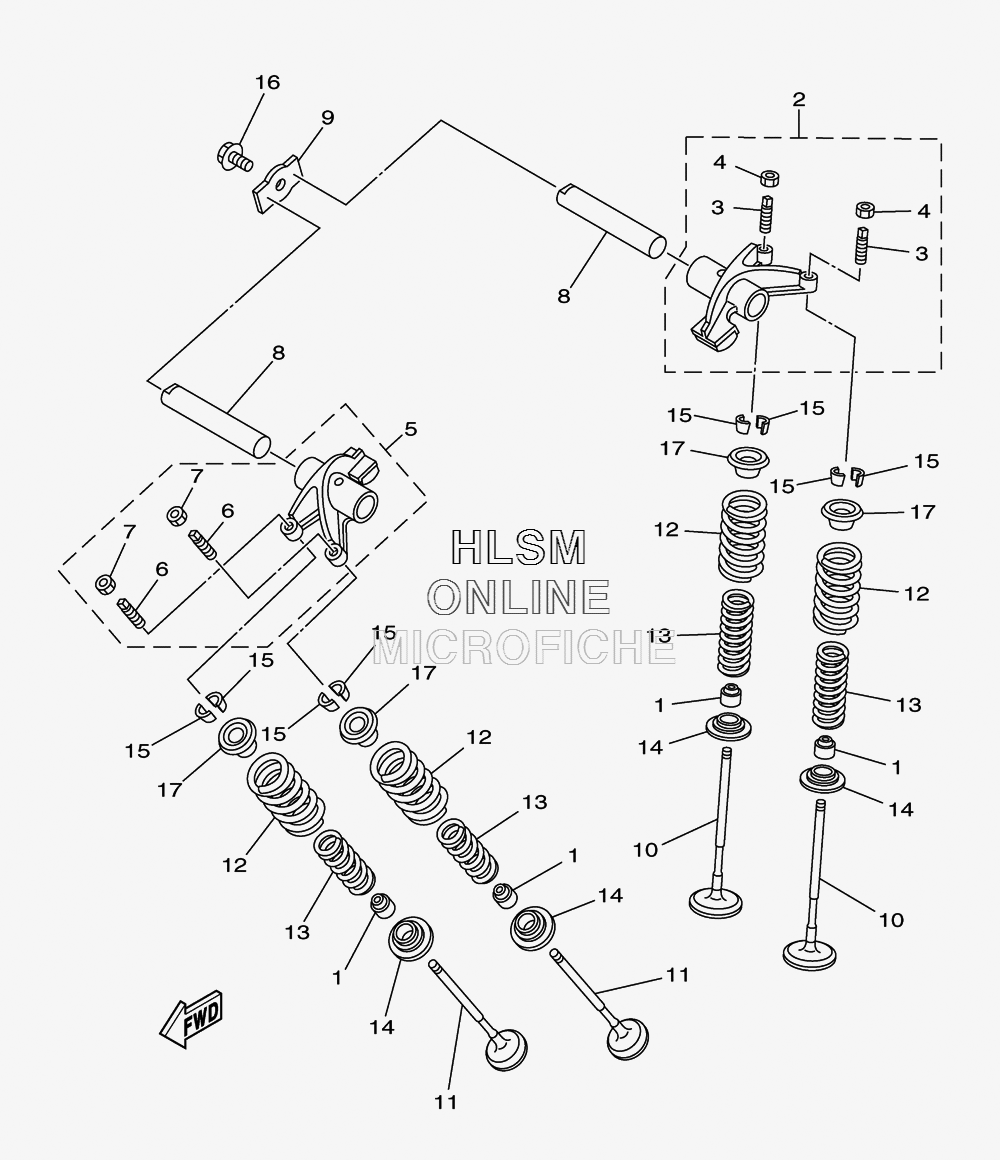

VALVE ASSY для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-E2119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
21SC-E2150-00-00 VALVE ROCKER ARM ASSY.VALVE ROCKER ARM ASSY.
-
31SC-E2159-00-00 ...SCREW, VALVE ADJUSTING...SCREW, VALVE ADJUSTING
-
41SC-E2158-00-00 ...NUT, LOCK...NUT, LOCK
-
51SC-E2160-00-00 VALVE ROCKER ARM ASSY 2VALVE ROCKER ARM ASSY 2
-
61SC-E2159-00-00 ...SCREW, VALVE ADJUSTING...SCREW, VALVE ADJUSTING
-
71SC-E2158-00-00 ...NUT, LOCK...NUT, LOCK
-
81SC-E2146-00-00 SHAFT, ROCKERSHAFT, ROCKER
-
91SC-E2279-00-00 PLATEPLATE
-
101SC-E2111-00-00 VALVE, INTAKEVALVE, INTAKE
-
111SC-E2121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
121SC-E2113-00-00 SPRING, VALVE (INNER)SPRING, VALVE (INNER)
-
131SC-E2114-00-00 SPRING, VALVE (OUTER)SPRING, VALVE (OUTER)
-
141SC-E2116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
151SC-E2118-00-00 COTTER, VALVECOTTER, VALVE
-
161SC-E2157-00-00 BOLTBOLT
-
171SC-E2117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
