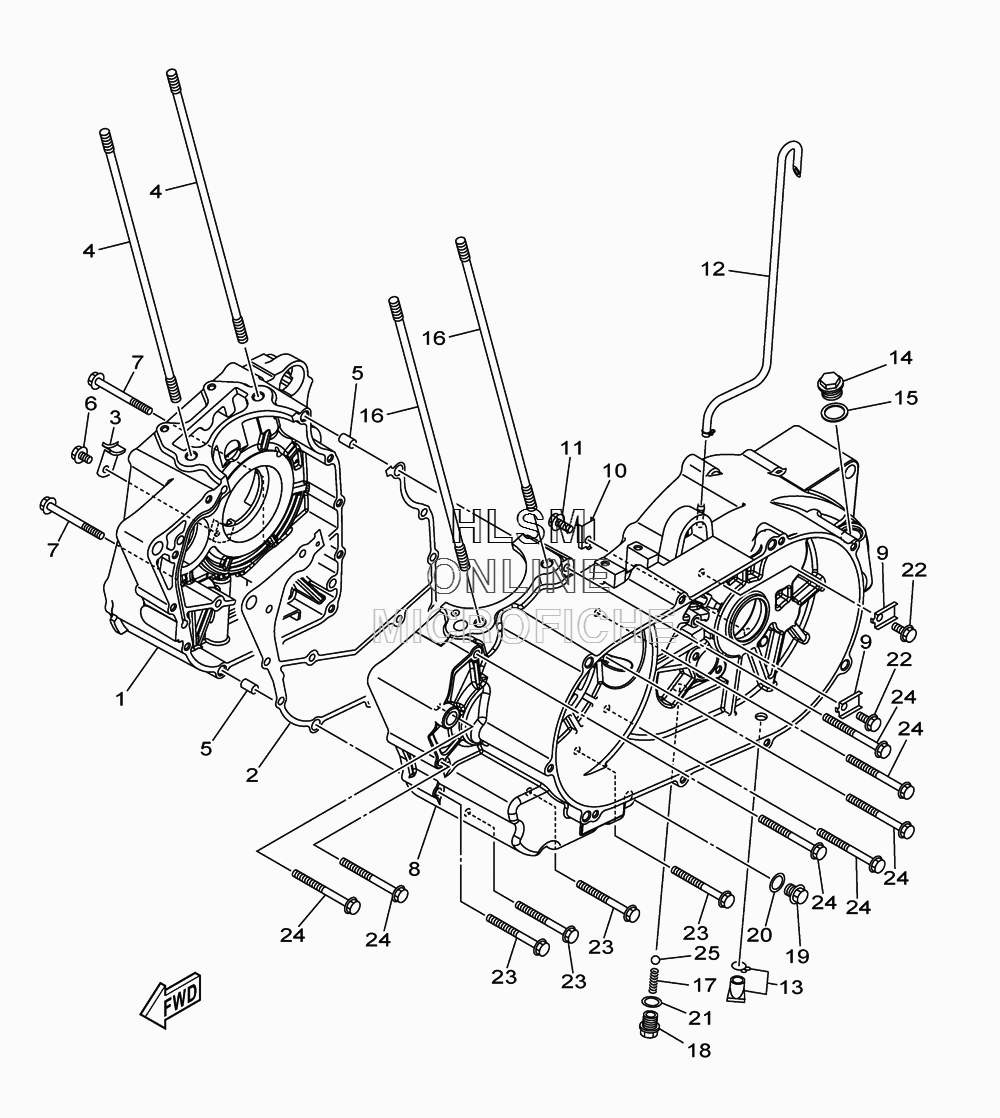

CRANKCASE для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-E5121-00-00 CRANKCASE 2CRANKCASE 2
-
21SC-E5314-00-00 GASKET, CRANKCASE 1GASKET, CRANKCASE 1
-
31SC-E2233-00-00 PLATE, GUIDE STOPPER 1PLATE, GUIDE STOPPER 1
-
41SC-E1362-00-00 BOLT, CYLINDER HOLDING 2BOLT, CYLINDER HOLDING 2
-
543D-E5181-00-00 PIN, DOWELPIN, DOWEL
-
61SC-E22C0-00-00 BOLT SETBOLT SET
-
71SC-E5187-00-00 BOLTBOLT
-
81SC-E5111-00-00 CRANKCASE 1CRANKCASE 1
-
91SC-E5381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
101SC-E7558-00-00 PLATE, BEARINGPLATE, BEARING
-
111SC-E4496-00-00 BOLTBOLT
-
121SC-E531A-00-00 HOSE, BREATHER 1HOSE, BREATHER 1
-
131SC-E1373-00-00 PLUG, WATER DRAINPLUG, WATER DRAIN
-
141SC-E5169-00-00 PLUG, BLIND 2PLUG, BLIND 2
-
151SC-E5158-00-00 WASHERWASHER
-
161SC-E1361-00-00 BOLT, CYLINDER HOLDING 1BOLT, CYLINDER HOLDING 1
-
171SC-E8557-00-00 SPRING, CAM STOPPERSPRING, CAM STOPPER
-
181SC-E8533-00-00 PLUG, BLINDPLUG, BLIND
-
191SC-E5351-00-00 PLUG, DRAINPLUG, DRAIN
-
201SC-E5561-00-00 WASHERWASHER
-
211SC-E5613-00-00 WASHERWASHER
-
221SC-E7087-00-00 BOLT, SPECIALBOLT, SPECIAL
-
231SC-E5768-00-00 BOLTBOLT
-
241SC-E5482-00-00 BOLT 2BOLT 2
-
251SC-E8218-00-00 BALLBALL
