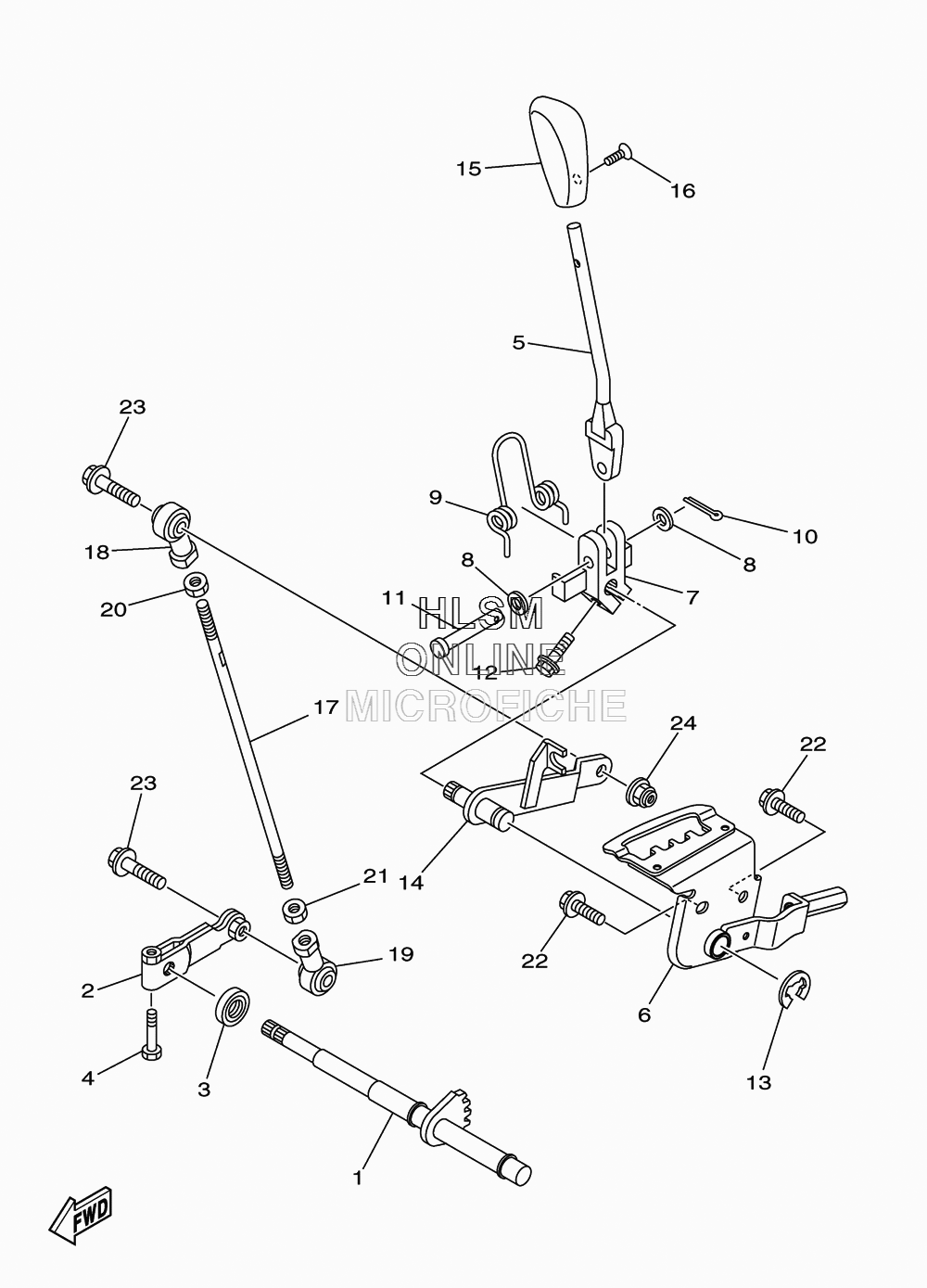

SHIFT SHAFT для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-E8103-00-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
21SC-E8122-00-00 LEVER, SHIFT 2LEVER, SHIFT 2
-
31SC-E511A-00-00 OIL SEALOIL SEAL
-
41SC-E1982-00-00 BOLT, HOLDERBOLT, HOLDER
-
51SC-E8121-00-00 LEVER, SHIFT 1LEVER, SHIFT 1
-
61SC-E811A-00-00 PLATE, SHIFT ARMPLATE, SHIFT ARM
-
71SC-E8164-00-00 KNOB, SHIFTERKNOB, SHIFTER
-
81SC-E8194-00-00 WASHER, SHIFT LEVERWASHER, SHIFT LEVER
-
91SC-E8434-00-00 SPRING, SHIFTSPRING, SHIFT
-
1091402-25020-00 PIN, COTTERPIN, COTTER
-
111SC-E8173-00-00 PIN, SHIFTPIN, SHIFT
-
1295822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
131SC-E8136-00-00 CLIP, SHIFT SHAFTCLIP, SHIFT SHAFT
-
141SC-E8169-00-00 ARM, SHIFT 2ARM, SHIFT 2
-
151SC-E8174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
1698702-05014-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
171SC-E8115-02-00 ROD, SHIFTROD, SHIFT
-
181SC-E8116-00-00 JOINT, ROD 1JOINT, ROD 1
-
191SC-E8117-00-00 JOINT, ROD 2JOINT, ROD 2
-
2095302-08700-00 NUTNUT
-
211SC-E7668-00-00 NUTNUT
-
2295822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2395822-08025-00 BOLT, FLANGEBOLT, FLANGE
-
2495602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
