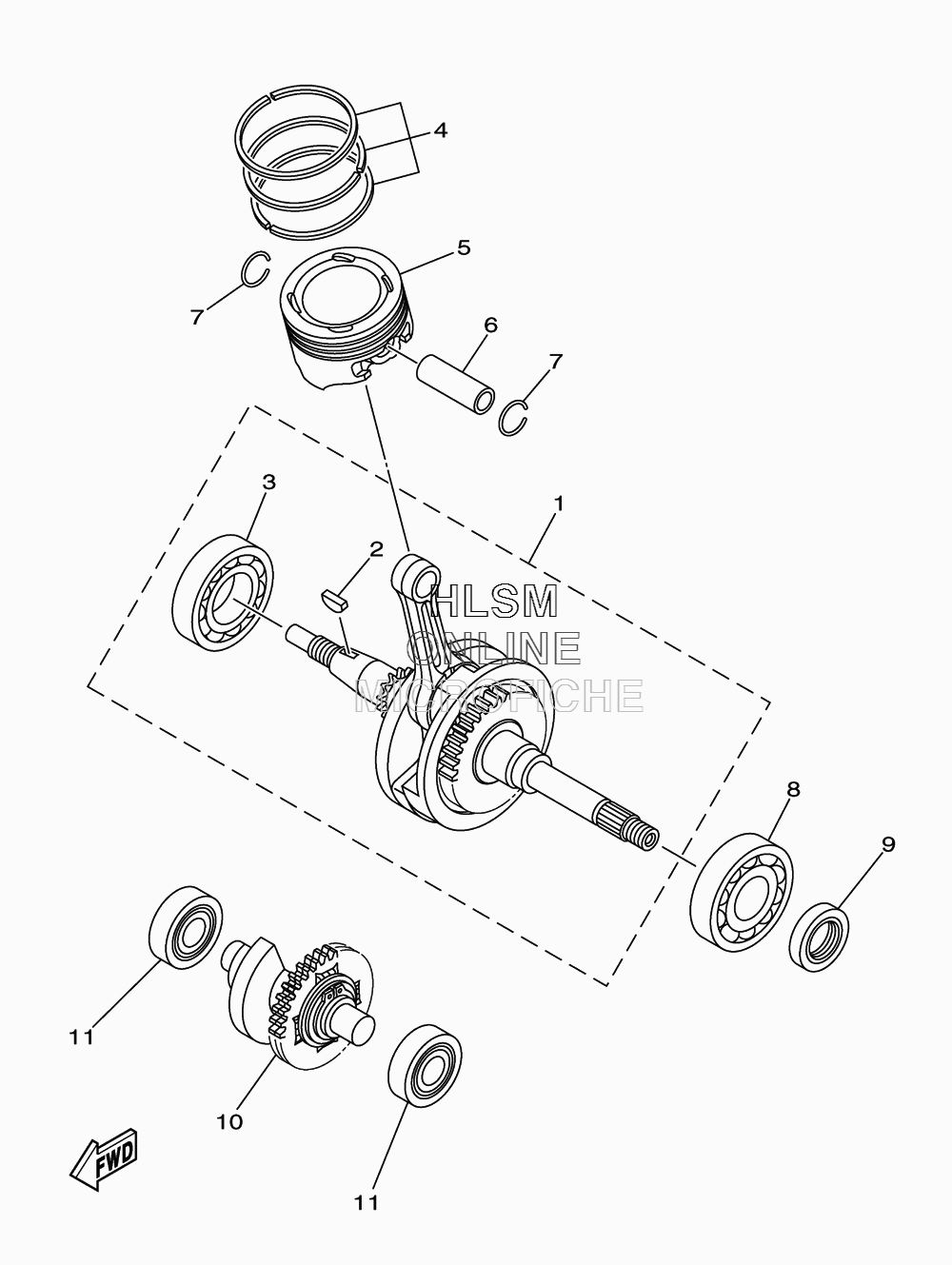

CRANKSHAFT - PISTON для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-E1400-00-00 CRANKSHAFT ASSY.CRANKSHAFT ASSY.
-
21SC-E1545-00-00 ...KEY, WOODRUFF...KEY, WOODRUFF
-
31SC-E1428-00-00 ...BEARING 1...BEARING 1
-
41SC-E1610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
51SC-E1631-00-00 PISTON (STD)PISTON (STD)
-
61SC-E1633-00-00 PIN, PISTONPIN, PISTON
-
71SC-E1634-00-00 CLIP, PISTON PINCLIP, PISTON PIN
-
81SC-E1429-00-00 BEARING 2BEARING 2
-
91SC-E1447-00-00 SEAL, CRANKSEAL, CRANK
-
101SC-E1500-00-00 BALANCER ASSYBALANCER ASSY
-
111SC-E142A-00-00 BEARINGBEARING
