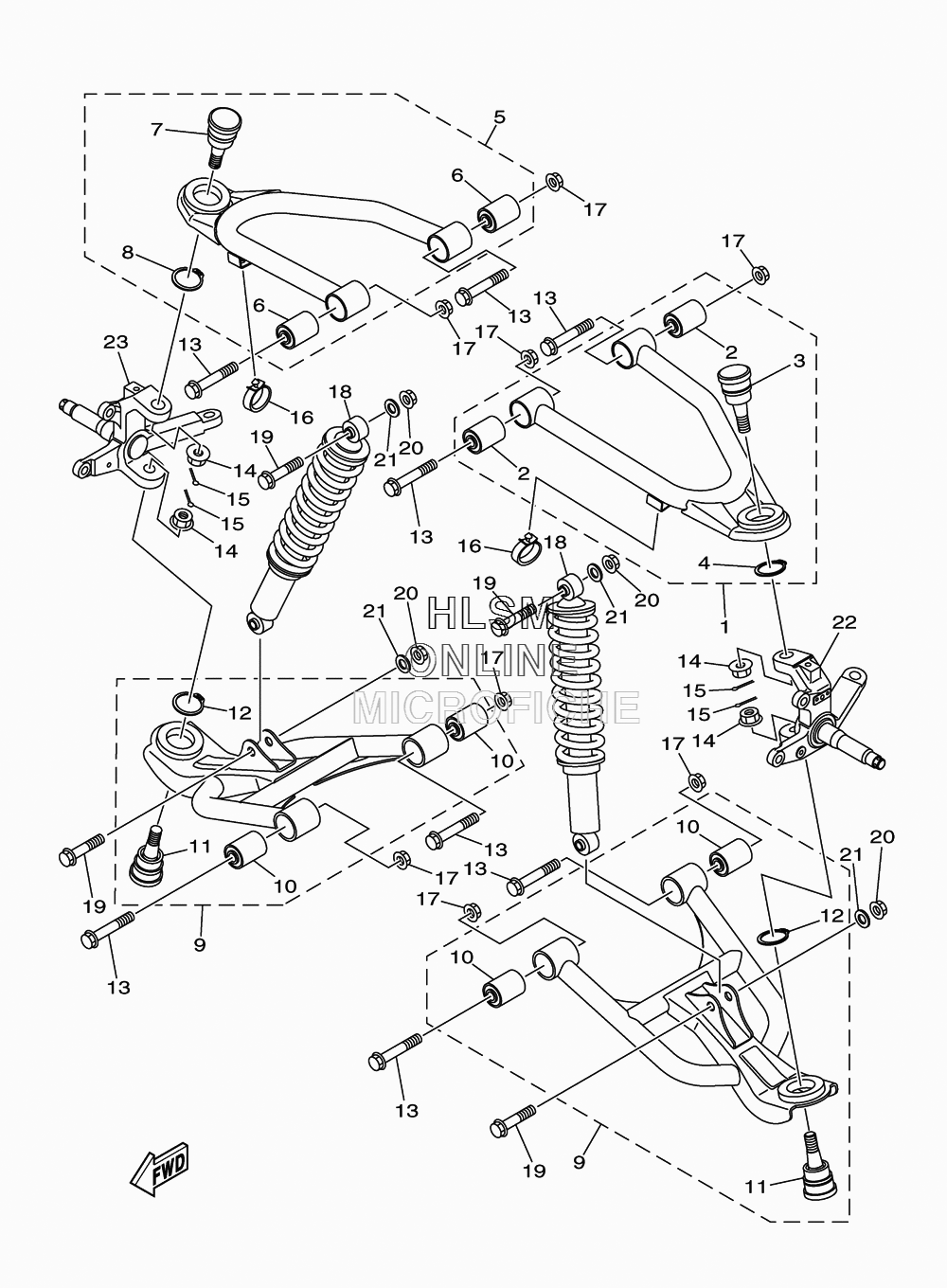

SUSPENSION - FRONT WHEEL для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-F3505-00-00 FRONT UPPER ARM SUB ASSY LEFT HANDFRONT UPPER ARM SUB ASSY LEFT HAND
-
21SC-F3526-00-00 ...BUSH...BUSH
-
31SC-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
41SC-F3183-00-00 ...CIRCLIP...CIRCLIP
-
51SC-F3506-00-00 FRONT UPPER ARM SUB ASSY RIGHT HANDFRONT UPPER ARM SUB ASSY RIGHT HAND
-
61SC-F3526-00-00 ...BUSH...BUSH
-
71SC-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
81SC-F3183-00-00 ...CIRCLIP...CIRCLIP
-
91SC-F3507-00-00 FRONT LOWER ARM SUB-ASSY (LEFT HAND)FRONT LOWER ARM SUB-ASSY (LEFT HAND)
-
101SC-F3526-00-00 ...BUSH...BUSH
-
111SC-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
121SC-F3183-00-00 ...CIRCLIP...CIRCLIP
-
1395812-10060-00 BOLT, FLANGEBOLT, FLANGE
-
141SC-F3393-00-00 NUT, SPECIALNUT, SPECIAL
-
1591401-25033-00 PIN, COTTERPIN, COTTER
-
1643D-F53N5-00-00 CLAMP 1CLAMP 1
-
1743D-F1839-00-00 NUTNUT
-
181SC-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
191SC-F3753-00-00 BOLTBOLT
-
2043D-F1839-00-00 NUTNUT
-
211SC-F3427-00-00 WASHERWASHER
-
221SC-F3511-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
231SC-F3521-00-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
