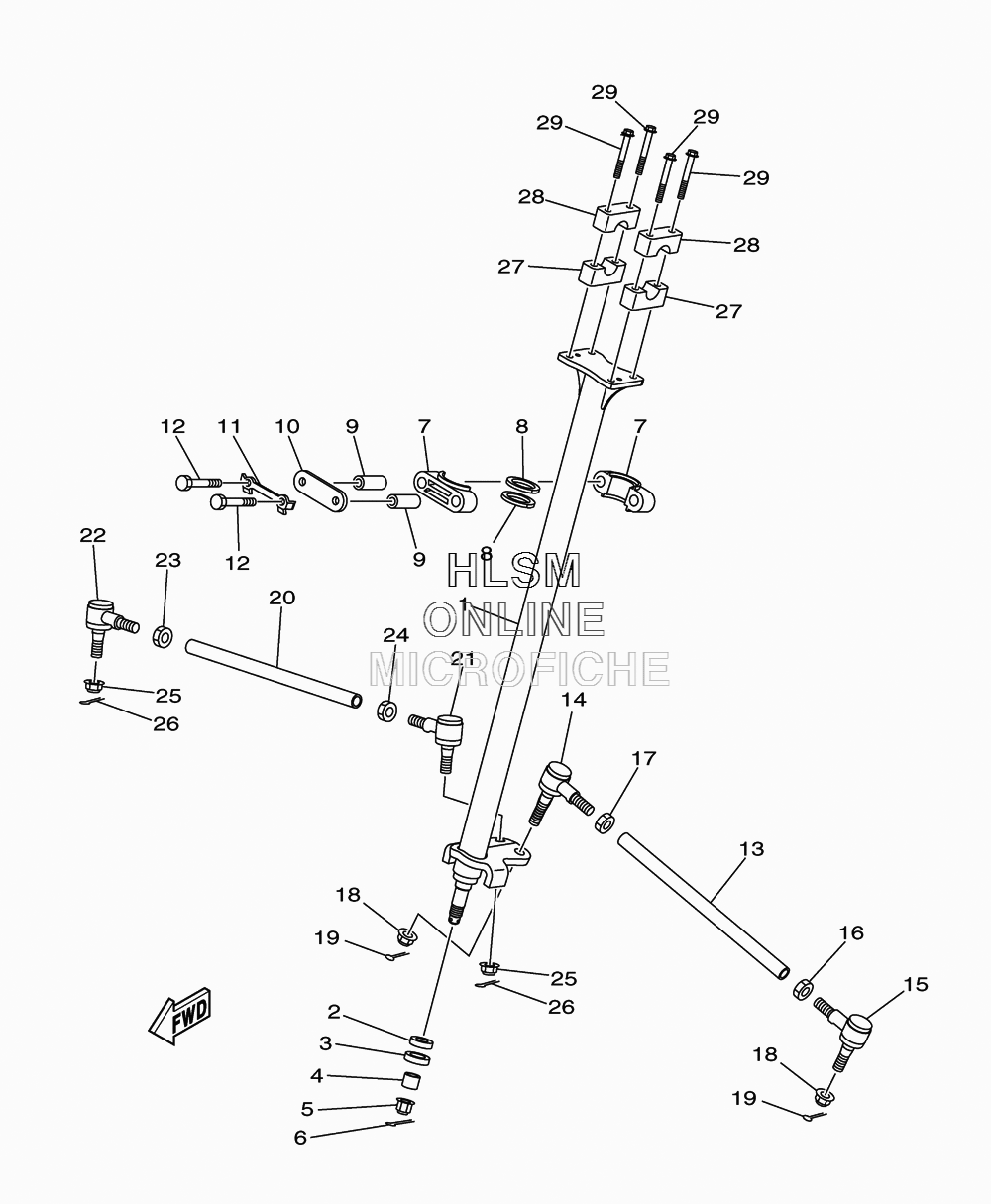

STEERING для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска
-
№АртикулНазвание
-
11SC-F3813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
243D-F3844-00-00 SEALSEAL
-
343D-F38B1-00-00 SEAL 2SEAL 2
-
443D-F38B2-00-00 SPACERSPACER
-
543D-F1535-00-00 NUT 1NUT 1
-
691401-25020-00 PIN, COTTERPIN, COTTER
-
71SC-F3872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
81SC-F3844-00-00 SEALSEAL
-
91SC-F3363-00-00 COLLAR 1COLLAR 1
-
101SC-F3868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
111SC-F3774-00-00 PLATEPLATE
-
1297022-08060-00 BOLTBOLT
-
131SC-F3831-00-00 ROD, TIEROD, TIE
-
141SC-F3841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
151SC-F3845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1643D-F1791-00-00 NUTNUT
-
1743D-F1829-00-00 NUTNUT
-
1843D-F1839-00-00 NUTNUT
-
1991401-25020-00 PIN, COTTERPIN, COTTER
-
201SC-F3831-00-00 ROD, TIEROD, TIE
-
211SC-F3841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
221SC-F3845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2343D-F1791-00-00 NUTNUT
-
2443D-F1829-00-00 NUTNUT
-
2543D-F1839-00-00 NUTNUT
-
2691401-25020-00 PIN, COTTERPIN, COTTER
-
271SC-F3442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
281SC-F3441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
291SC-F6225-00-00 BOLT, HANDLEBOLT, HANDLE
