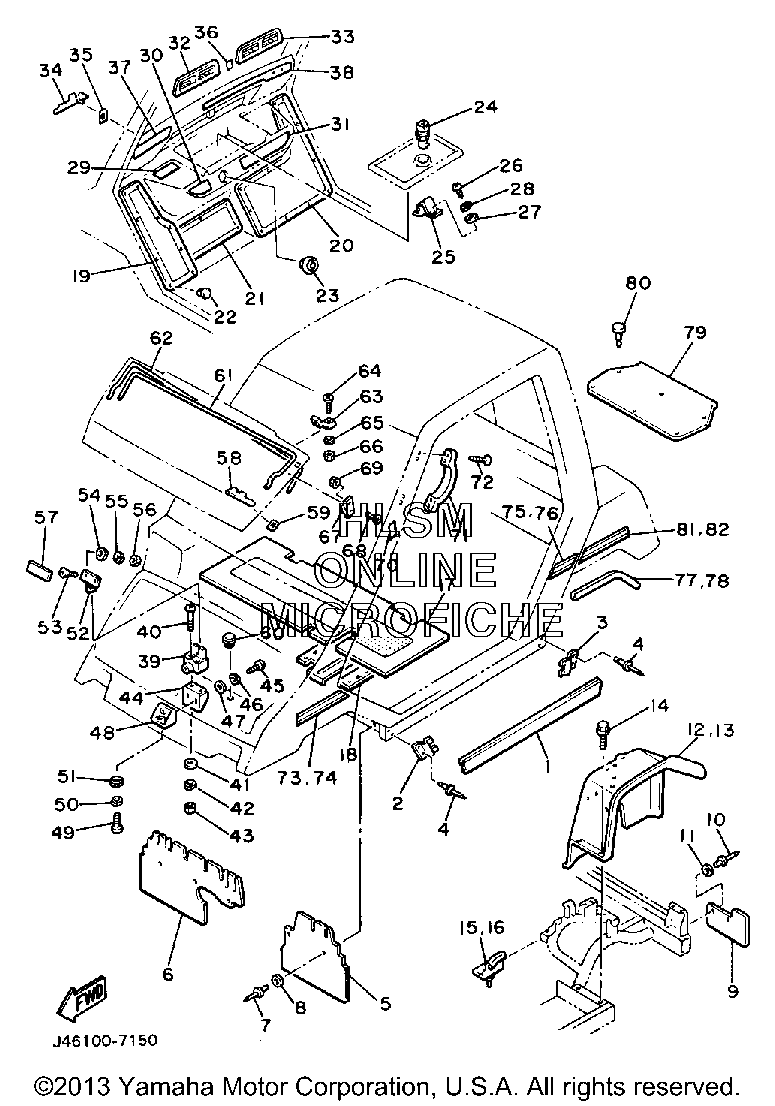

BODY FITTING для Yamaha SUN CLASSIC ELECTRIC [G3E] (J46) - 1987 года выпуска
-
№АртикулНазвание
-
1J42-7818A-00-00 PROTECTOR, SIDE PLATEPROTECTOR, SIDE PLATE
-
2J42-78183-00-00 PLATE, SIDE SILL (L.H)PLATE, SIDE SILL (L.H)
-
3J42-78184-00-00 PLATE, SIDE SILL (R.H)PLATE, SIDE SILL (R.H)
-
490267-48116-00 RIVET, BLINDRIVET, BLIND
-
5J42-78187-00-00 FLAP, FRONT FENDERFLAP, FRONT FENDER
-
6J42-78189-00-00 FLAP, FRONT FENDER (R.H)FLAP, FRONT FENDER (R.H)
-
790267-40075-00 RIVET, BLINDRIVET, BLIND
-
890201-05034-00 WASHER, PLATEWASHER, PLATE
-
9J42-78199-00-00 FLAP, REAR 2FLAP, REAR 2
-
1090267-40075-00 RIVET, BLINDRIVET, BLIND
-
1190201-05034-00 WASHER, PLATEWASHER, PLATE
-
12J46-78191-00-00 PANEL, RR FENDER 1PANEL, RR FENDER 1
-
13J26-78192-00-00 PANEL, REAR FENDER 2PANEL, REAR FENDER 2
-
1490119-06029-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
15J42-78221-01-00 SHEET, BODY MOUNTING 1SHEET, BODY MOUNTING 1
-
16J42-78222-01-00 SHEET, BODY MOUNTING 2SHEET, BODY MOUNTING 2
-
17J42-78231-02-00 MAT, MAIN FLOOR 1 (J42-78231-01-00)MAT, MAIN FLOOR 1 (J42-78231-01-00)
-
18J42-78271-01-00 SERVICE LID, PEDALSERVICE LID, PEDAL
-
19J42-78232-00-00 MAT, MAIN FLOOR 2MAT, MAIN FLOOR 2
-
20J42-78233-00-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
21J42-78236-01-00 MAT, PEDAL FLOORMAT, PEDAL FLOOR
-
2290267-63047-00 RIVET, BLINDRIVET, BLIND
-
23J42-77740-01-00 GROMMET, INSTRUMENT PANELGROMMET, INSTRUMENT PANEL
-
2425G-21708-00-00 SIDE COVER LOCK ASSY (J42-21708-00-00)SIDE COVER LOCK ASSY (J42-21708-00-00)
-
25J42-78319-00-00 HOOK, END 2HOOK, END 2
-
2697780-50612-00 SCREW, TAPPINGSCREW, TAPPING
-
2792901-05600-00 WASHER, PLATEWASHER, PLATE
-
2892990-05100-00 WASHER, SPRINGWASHER, SPRING
-
29J55-77768-10-00 LABEL, WARNING (J38-77768-10-00)LABEL, WARNING (J38-77768-10-00)
-
30J42-77717-00-00 ORNAMENT, INSTRUMENT PANEL 3ORNAMENT, INSTRUMENT PANEL 3
-
31J42-77718-00-00 ORNAMENT, INSTRUMENT PANEL 4ORNAMENT, INSTRUMENT PANEL 4
-
32J42-2837X-00-00 GRILL, AIR OUTLET 3GRILL, AIR OUTLET 3
-
33J42-2837Y-00-00 GRILL, AIR OUTLET 4GRILL, AIR OUTLET 4
-
34J42-78292-00-00 EMBLEM 2EMBLEM 2
-
3590183-03038-00 NUT, SPRINGNUT, SPRING
-
36J42-77743-00-00 INDICATOR 3INDICATOR 3
-
37J42-77715-00-00 ORNAMENT INSTRUMENT PANEL 1ORNAMENT INSTRUMENT PANEL 1
-
38J42-77716-00-00 ORNAMENT, INSTRUMENT PANEL 2ORNAMENT, INSTRUMENT PANEL 2
-
3923T-24705-00-00 SEAT LOCK ASSY (J42-24705-00-00)SEAT LOCK ASSY (J42-24705-00-00)
-
4098580-06040-00 SCREW, PAN HEAD (90501-06040-00)SCREW, PAN HEAD (90501-06040-00)
-
4192990-06200-00 WASHER, PLAINWASHER, PLAIN
-
4292995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4395380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
44J42-78323-00-00 BRACKET 1BRACKET 1
-
4598580-06012-00 SCREW, PAN HEAD (92501-06012-00)SCREW, PAN HEAD (92501-06012-00)
-
4692995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4792990-06600-00 WASHER, PLATEWASHER, PLATE
-
48J42-78324-00-00 BRACKET 2BRACKET 2
-
4998580-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
5092995-06100-00 WASHER, SPRINGWASHER, SPRING
-
5192990-06200-00 WASHER, PLAINWASHER, PLAIN
-
52J42-78318-00-00 HOOK, END 1HOOK, END 1
-
5398701-05016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
5492990-05200-00 WASHER, PLAINWASHER, PLAIN
-
5592990-05100-00 WASHER, SPRINGWASHER, SPRING
-
5695380-05600-00 NUTNUT
-
5725G-21578-00-00 EMBLEMEMBLEM
-
58J42-78292-00-00 EMBLEM 2EMBLEM 2
-
5990183-03038-00 NUT, SPRINGNUT, SPRING
-
6090338-24112-00 PLUG, SPECIAL SHAPEPLUG, SPECIAL SHAPE
-
61J42-78278-00-00 SPRING, FRONT LID 1SPRING, FRONT LID 1
-
62J42-78279-00-00 SPRING, FRONT LID 2SPRING, FRONT LID 2
-
63J42-7827A-00-00 GUIDE 1GUIDE 1
-
6498501-03016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
6592990-03200-00 WASHER, PLAINWASHER, PLAIN
-
6695380-03600-00 NUTNUT
-
67J42-7827E-00-00 GUIDE 2GUIDE 2
-
6898501-03016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
6995380-03600-00 NUTNUT
-
70J42-7824H-00-00 TAPE 1TAPE 1
-
71J42-78214-00-00 GRIP, HANDGRIP, HAND
-
7297706-50640-00 SCREW, TAPPING (97706-50140-00)SCREW, TAPPING (97706-50140-00)
-
73J42-77281-00-00 STRIPE (L.H)STRIPE (L.H)
-
74J42-77282-00-00 STRIPE (R.H)STRIPE (R.H)
-
75J42-77283-00-00 STRIPE (L.H)STRIPE (L.H)
-
76J42-77284-00-00 STRIPE (R.H)STRIPE (R.H)
-
77J42-7824E-00-00 TRIM, REAR BODY (L.H)TRIM, REAR BODY (L.H)
-
78J42-7824F-00-00 TRIM, REAR BODY (R.H)TRIM, REAR BODY (R.H)
-
79J42-78241-00-00 MAT, REAR FLOORMAT, REAR FLOOR
-
8090269-06028-00 RIVETRIVET
-
81J42-77285-00-00 STRIPE (L.H)STRIPE (L.H)
-
82J42-77286-00-00 STRIPE (R.H)STRIPE (R.H)
