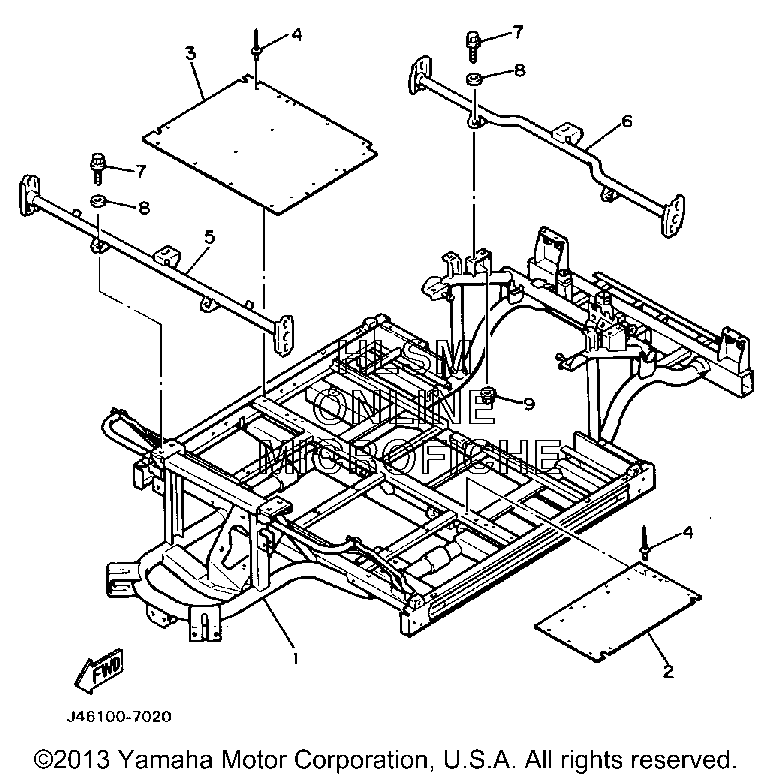

FRAME для Yamaha SUN CLASSIC ELECTRIC [G3E] (J46) - 1987 года выпуска
-
№АртикулНазвание
-
1J46-22501-00-00 FRAMEFRAME
-
2J42-22571-00-00 PANEL 1PANEL 1
-
3J42-22572-00-00 PANEL 2PANEL 2
-
490267-40054-00 RIVET, BLINDRIVET, BLIND
-
5J42-2254J-01-00 SUPPORT, SIDE PANELSUPPORT, SIDE PANEL
-
6J42-2254K-00-00 SUPPORT, SIDE PANEL 2SUPPORT, SIDE PANEL 2
-
795821-08020-00 BOLT, FLANGE (95811-08020-00)BOLT, FLANGE (95811-08020-00)
-
890201-084K3-00 WASHER, PLATEWASHER, PLATE
-
995701-08500-00 NUT, FLANGE (95702-08500-00)NUT, FLANGE (95702-08500-00)
Все узлы модели:
- ACCELERATOR
- BODY 1
- BODY 2
- BODY FITTING
- BRAKE 1
- BRAKE 2
- BUMPER
- CARRIER
- CONTROLLER 1
- CONTROLLER 2
- ELECTRICAL
- ELECTRICAL 2
- • FRAME
- HEADLIGHT
- INSTRUMENT PANEL
- MODEL INFO
- SEAT
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION 1
- TURNSIGNAL
- WHEEL - REAR W/ AXLE ASSY
- WINDSHIELD
