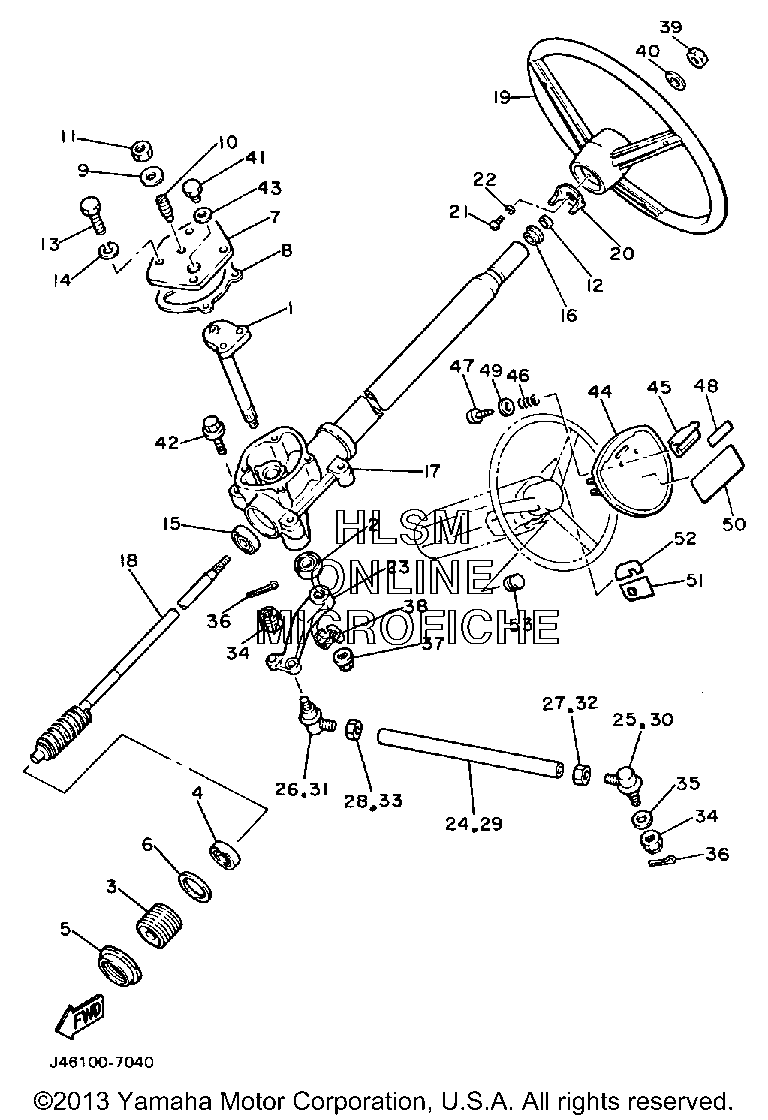

STEERING для Yamaha SUN CLASSIC ELECTRIC [G3E] (J46) - 1987 года выпуска
-
№АртикулНазвание
-
1J24-23816-01-00 ARM, PITMAN (J24-23816-00-00)ARM, PITMAN (J24-23816-00-00)
-
293102-22087-00 OIL SEALOIL SEAL
-
3J55-F3876-00-00 BOLTBOLT
-
493332-00010-00 BEARINGBEARING
-
5J10-23877-00-00 NUTNUT
-
6J10-23444-00-00 WASHERWASHER
-
7J10-23818-00-00 COVER, STEERINGCOVER, STEERING
-
8J10-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
990201-08087-00 WASHER, PLATEWASHER, PLATE
-
10J10-23459-00-00 BOLTBOLT
-
1190170-08024-00 NUT, HEXNUT, HEX
-
1293104-15005-00 OIL SEAL, SO-TYPEOIL SEAL, SO-TYPE
-
1397313-08020-00 BOLT, HEXAGONBOLT, HEXAGON
-
1492990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1593332-00010-00 BEARINGBEARING
-
16J42-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
17J42-23811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
18J10-23840-00-00 STEERING SHAFT ASSEMBLYSTEERING SHAFT ASSEMBLY
-
19J50-F3838-00-00 WHEEL, STEERINGWHEEL, STEERING
-
20J42-23839-00-00 PIN, CANCELPIN, CANCEL
-
2198580-04008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2292901-04100-00 WASHER, SPRINGWASHER, SPRING
-
23J24-23826-00-00 ARM, IDLERARM, IDLER
-
24J10-23831-00-00 ROD, TIEROD, TIE
-
25J10-23841-10-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
26J10-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2790170-12054-00 NUTNUT
-
2890170-12055-00 NUTNUT
-
29J10-23831-00-00 ROD, TIEROD, TIE
-
30J10-23841-10-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
31J10-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3290170-12054-00 NUTNUT
-
3390170-12055-00 NUTNUT
-
3495301-12900-00 NUT, SLOTTEDNUT, SLOTTED
-
3592990-12600-00 WASHER, PLATEWASHER, PLATE
-
3691401-30030-00 PIN, COTTERPIN, COTTER
-
3795701-16300-00 NUT, FLANGENUT, FLANGE
-
3890215-16161-00 WASHER, LOCKWASHER, LOCK
-
3990185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4092990-12200-00 WASHER, PLAINWASHER, PLAIN
-
4190340-14115-00 PLUG, STRAIGHT SCRWPLUG, STRAIGHT SCRW
-
4295811-10050-00 BOLT, FLANGEBOLT, FLANGE
-
4390430-14043-00 GASKETGASKET
-
44J50-K8357-00-00 HOLDER 1HOLDER 1
-
45J50-K8358-00-00 HOLDER 2HOLDER 2
-
4690502-10013-00 SPRING, CONICALSPRING, CONICAL
-
4797780-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
48J10-78292-00-00 EMBLEM 2EMBLEM 2
-
4992901-05600-00 WASHER, PLATEWASHER, PLATE
-
50J46-77762-00-00 LABEL, WARNING 2 (NOT AVAILABLE)LABEL, WARNING 2 (NOT AVAILABLE)
-
51J42-77741-00-00 INDICATOR 1INDICATOR 1
-
52J42-77742-00-00 INDICATOR 2INDICATOR 2
-
5390338-11125-00 PLUGPLUG
