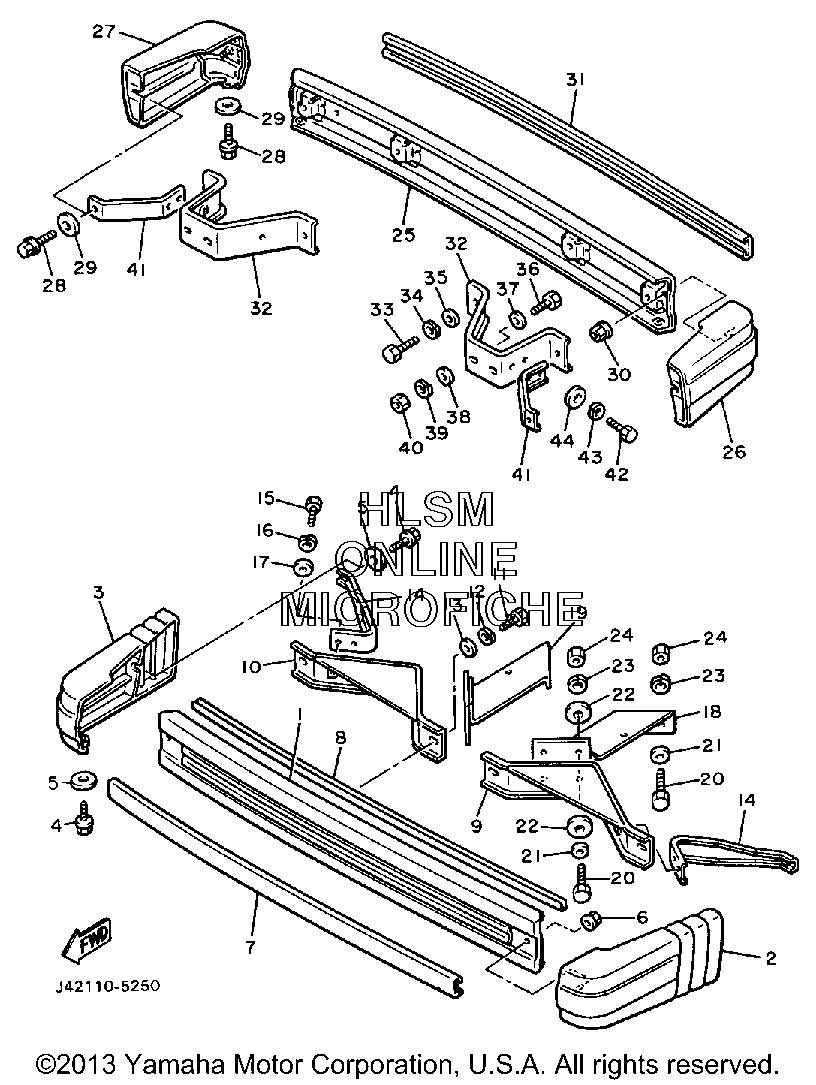

BUMPER для Yamaha SUN CLASSIC ELECTRIC [G3E] (J46) - 1987 года выпуска
-
№АртикулНазвание
-
1J42-78106-00-00 BUMPER SUB-ASSY, FRONTBUMPER SUB-ASSY, FRONT
-
2J42-77505-00-00 BUMPER RUBBER COMP. 1BUMPER RUBBER COMP. 1
-
3J42-77506-00-00 BUMPER RUBBER COMP. 2BUMPER RUBBER COMP. 2
-
495816-06016-00 BOLT, FLANGEBOLT, FLANGE
-
590201-060A3-00 WASHER, PLATEWASHER, PLATE
-
695701-06500-00 NUT, WITH WASHERNUT, WITH WASHER
-
7J42-78162-00-00 PAD, FRONT BUMPERPAD, FRONT BUMPER
-
8J42-77588-00-00 DAMPERDAMPER
-
9J42-78164-00-00 STAY, FRONT BUMPER 1 (J17-78165-00-00)STAY, FRONT BUMPER 1 (J17-78165-00-00)
-
10J42-78165-00-00 STAY, FRONT BUMPER 2 (J17-78165-00-00)STAY, FRONT BUMPER 2 (J17-78165-00-00)
-
1197011-08016-00 BOLTBOLT
-
1292990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1392990-08600-00 WASHER, PLATEWASHER, PLATE
-
14J42-77535-00-00 STAY 1STAY 1
-
1597313-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
1692995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1790201-065F3-00 WASHER, PLATEWASHER, PLATE
-
18J42-78176-00-00 STAY, FRONT BUMPER 3STAY, FRONT BUMPER 3
-
19J42-78177-00-00 STAY, FRONT BUMPER 4STAY, FRONT BUMPER 4
-
2097312-08025-00 BOLT (97012-08025-00)BOLT (97012-08025-00)
-
2192990-08600-00 WASHER, PLATEWASHER, PLATE
-
2290201-085E6-00 WASHER, PLATEWASHER, PLATE
-
2392990-08100-00 WASHER, SPRINGWASHER, SPRING
-
2495333-08600-00 NUTNUT
-
25J42-78107-00-00 BUMPER SUB-ASSY, REARBUMPER SUB-ASSY, REAR
-
26J42-77507-00-00 BUMPER RUBBER COMP. 3BUMPER RUBBER COMP. 3
-
27J42-77508-00-00 BUMPER RUBBER COMP. 4BUMPER RUBBER COMP. 4
-
2895816-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2990201-060A3-00 WASHER, PLATEWASHER, PLATE
-
3095701-06500-00 NUT, WITH WASHERNUT, WITH WASHER
-
31J42-78162-00-00 PAD, FRONT BUMPERPAD, FRONT BUMPER
-
32J42-78174-00-00 STAY, REAR BUMPER (J10-78174-01-00)STAY, REAR BUMPER (J10-78174-01-00)
-
3397011-08016-00 BOLTBOLT
-
3492990-08100-00 WASHER, SPRINGWASHER, SPRING
-
3592990-08600-00 WASHER, PLATEWASHER, PLATE
-
3697312-08025-00 BOLT (97012-08025-00)BOLT (97012-08025-00)
-
3792990-08600-00 WASHER, PLATEWASHER, PLATE
-
3890201-085E6-00 WASHER, PLATEWASHER, PLATE
-
3992990-08100-00 WASHER, SPRINGWASHER, SPRING
-
4095333-08600-00 NUTNUT
-
41J42-77536-00-00 STAY 2STAY 2
-
4297313-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
4392995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4490201-065F3-00 WASHER, PLATEWASHER, PLATE
