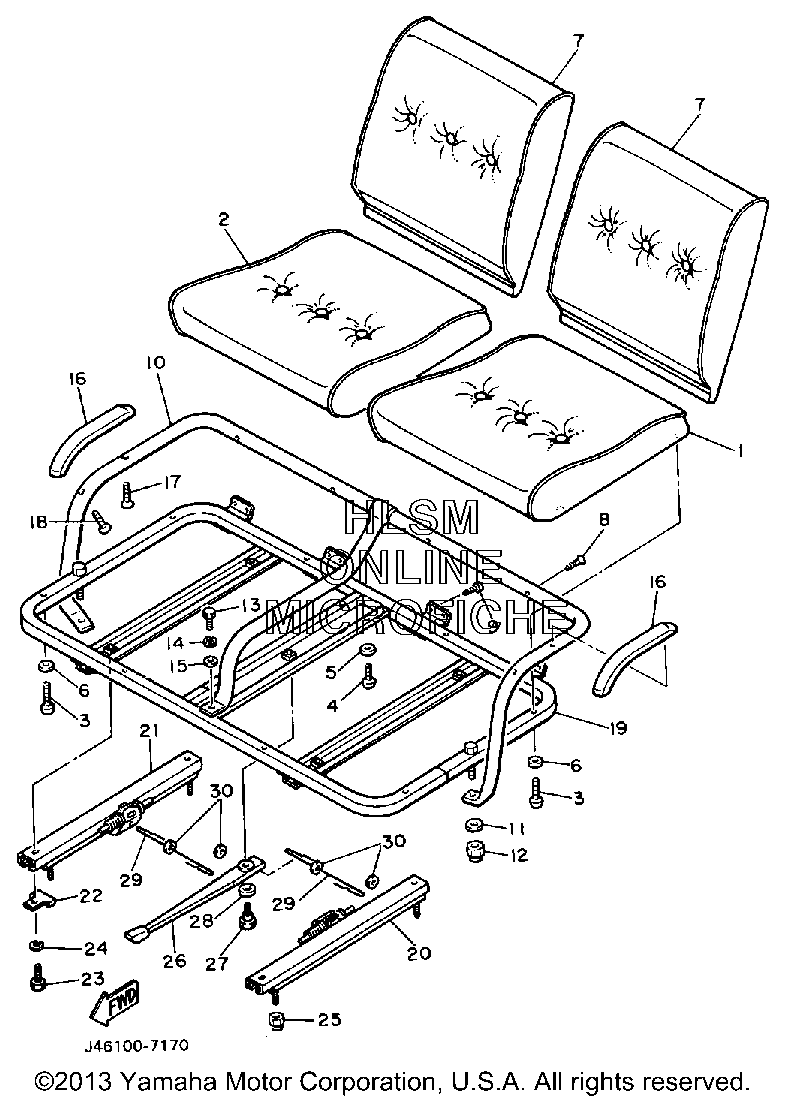

SEAT для Yamaha SUN CLASSIC ELECTRIC [G3E] (J46) - 1987 года выпуска
-
№АртикулНазвание
-
1J50-K8401-00-00 SEAT SUB ASSEMBLY, CUSHIONSEAT SUB ASSEMBLY, CUSHION
-
2J50-K8403-00-00 SEAT SUB ASSEMBLY, CUSHION 2SEAT SUB ASSEMBLY, CUSHION 2
-
398580-06040-00 SCREW, PAN HEAD (90501-06040-00)SCREW, PAN HEAD (90501-06040-00)
-
498503-06014-00 SCREW, PAN HEAD (92502-06016-00)SCREW, PAN HEAD (92502-06016-00)
-
592901-06600-00 WASHERWASHER
-
690201-065F3-00 WASHER, PLATEWASHER, PLATE
-
7J50-K8402-00-00 SEAT SUB ASSEMBLY, BACKSEAT SUB ASSEMBLY, BACK
-
890152-06017-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
997780-50316-00 SCREW, TAPPINGSCREW, TAPPING
-
10J42-78421-00-00 SUPPORT, SEATSUPPORT, SEAT
-
1192990-08600-00 WASHER, PLATEWASHER, PLATE
-
1295680-08100-00 NUT, UNUT, U
-
1397011-08016-00 BOLTBOLT
-
1492990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1592990-08600-00 WASHER, PLATEWASHER, PLATE
-
16J42-78361-00-00 ARM REST 1ARM REST 1
-
1798680-05030-00 SCREW, OVAL HEADSCREW, OVAL HEAD
-
1897780-50330-00 SCREW, TAPPINGSCREW, TAPPING
-
19J42-78451-00-00 FRAME, SLIDE SEATFRAME, SLIDE SEAT
-
20J42-78452-00-00 SEAT-ADJUSTER 1SEAT-ADJUSTER 1
-
21J42-78453-00-00 SEAT-ADJUSTER 2SEAT-ADJUSTER 2
-
22J42-78454-00-00 STOPPER, SLIDE SEATSTOPPER, SLIDE SEAT
-
2397011-08016-00 BOLTBOLT
-
2492990-08100-00 WASHER, SPRINGWASHER, SPRING
-
2595601-08200-00 NUT, UNUT, U
-
26J42-78455-00-00 LEVER, ADJUSTERLEVER, ADJUSTER
-
27J42-78456-00-00 BOLT, ADJUSTERBOLT, ADJUSTER
-
2892990-10600-00 WASHER, PLATEWASHER, PLATE
-
29J42-78457-00-00 WIRE, ADJUSTERWIRE, ADJUSTER
-
3092901-04600-00 WASHER, PLATEWASHER, PLATE
