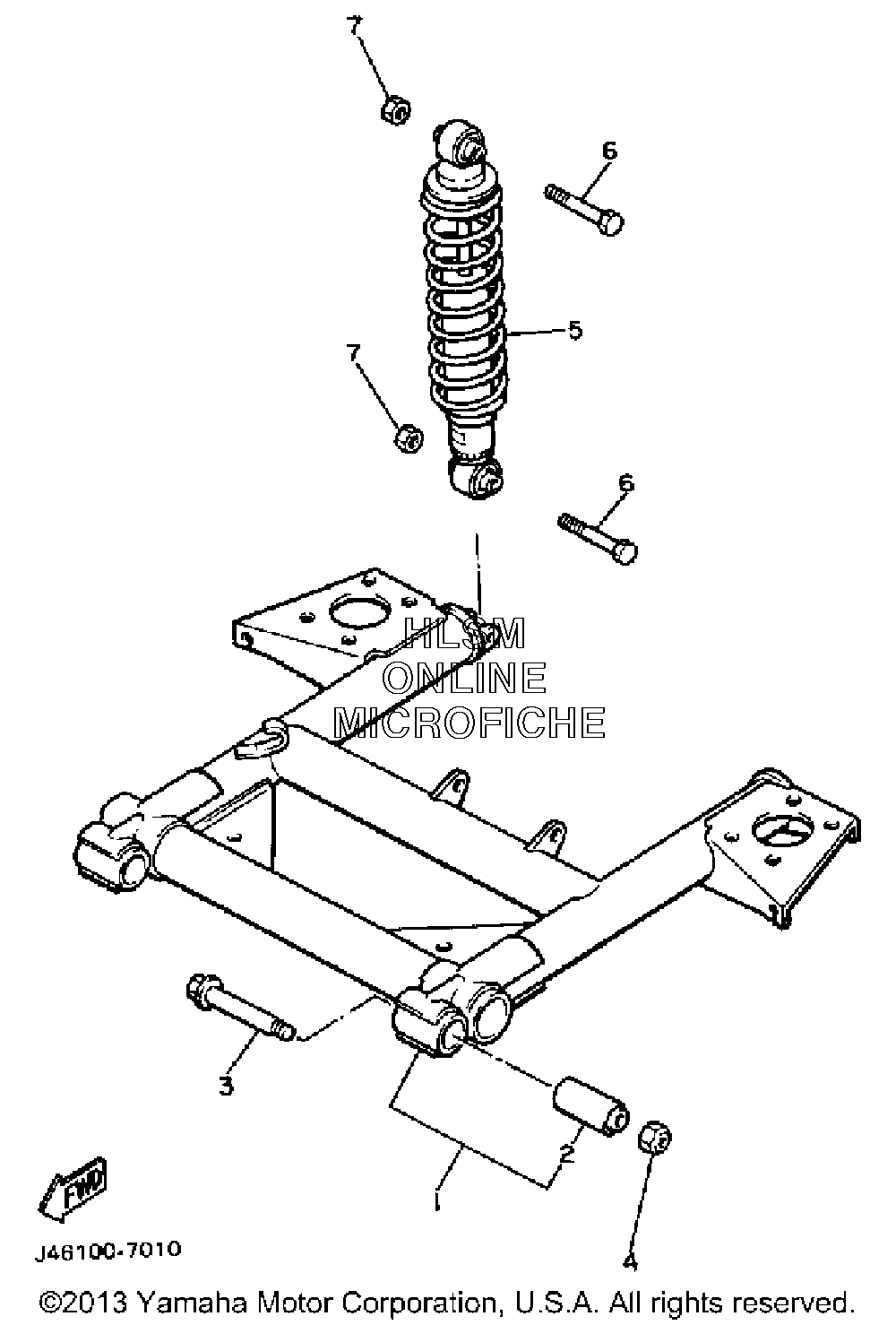

SUSPENSION - REAR SHOCK ABSORBER для Yamaha SUN CLASSIC ELECTRIC [G3E] (J46) - 1987 года выпуска
-
№АртикулНазвание
-
1J46-Y2210-00-00 REAR ARM COMP.REAR ARM COMP.
-
2J10-22123-00-00 ...BUSH 1...BUSH 1
-
390105-10359-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
490185-10115-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5J46-22210-00-00 SHOCK ABSORBER ASSY, REAR (J42-22210-00-00)SHOCK ABSORBER ASSY, REAR (J42-22210-00-00)
-
697012-10050-00 BOLTBOLT
-
795601-10100-00 NUT, U (95602-10100-00)NUT, U (95602-10100-00)
