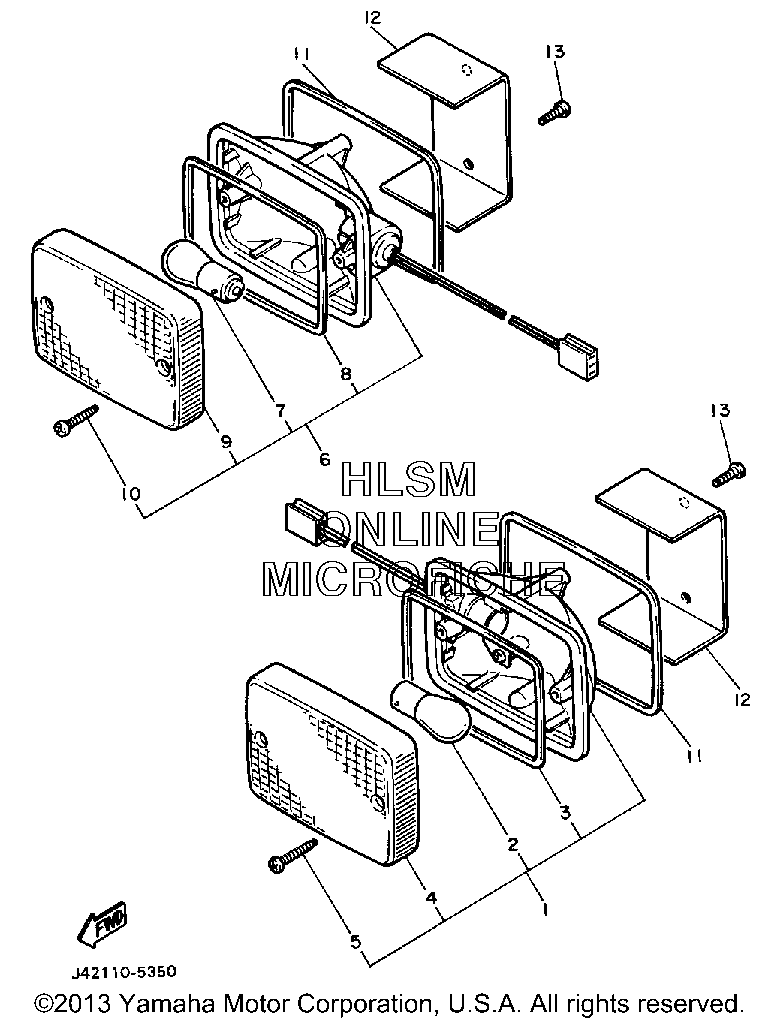

TURNSIGNAL для Yamaha SUN CLASSIC ELECTRIC [G3E] (J46) - 1987 года выпуска
-
№АртикулНазвание
-
1J42-83310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
2256-84714-61-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
34G0-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
44G0-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
597701-40618-00 SCREW, TAPPINGSCREW, TAPPING
-
6J42-83320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
7256-84714-61-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
84G0-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
94G0-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1097701-40618-00 SCREW, TAPPINGSCREW, TAPPING
-
11J42-83321-00-00 DAMPER, FLASHER 1DAMPER, FLASHER 1
-
12J42-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
1397780-50514-00 SCREW, TAPPINGSCREW, TAPPING
